INA SX011848-A 240 mm ID Roller Bearing, 300 mm OD
- RS Stock No.:
- 312-140
- Mfr. Part No.:
- SX011848-A
- Brand:
- INA
Subtotal (1 unit)*
£4,313.45
(exc. VAT)
£5,176.14
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £4,313.45 |
*price indicative
- RS Stock No.:
- 312-140
- Mfr. Part No.:
- SX011848-A
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | INA | |
| Product Type | Roller Bearing | |
| Inside Diameter | 240mm | |
| Race Width | 28mm | |
| Dynamic Load Rating | 149000N | |
| Standards/Approvals | No | |
| Maximum Speed - Oil | 565rpm | |
| Static Load Rating | 600000N | |
| Outside Diameter | 300mm | |
| Maximum Speed - Grease | 280rpm | |
| Select all | ||
|---|---|---|
Brand INA | ||
Product Type Roller Bearing | ||
Inside Diameter 240mm | ||
Race Width 28mm | ||
Dynamic Load Rating 149000N | ||
Standards/Approvals No | ||
Maximum Speed - Oil 565rpm | ||
Static Load Rating 600000N | ||
Outside Diameter 300mm | ||
Maximum Speed - Grease 280rpm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE

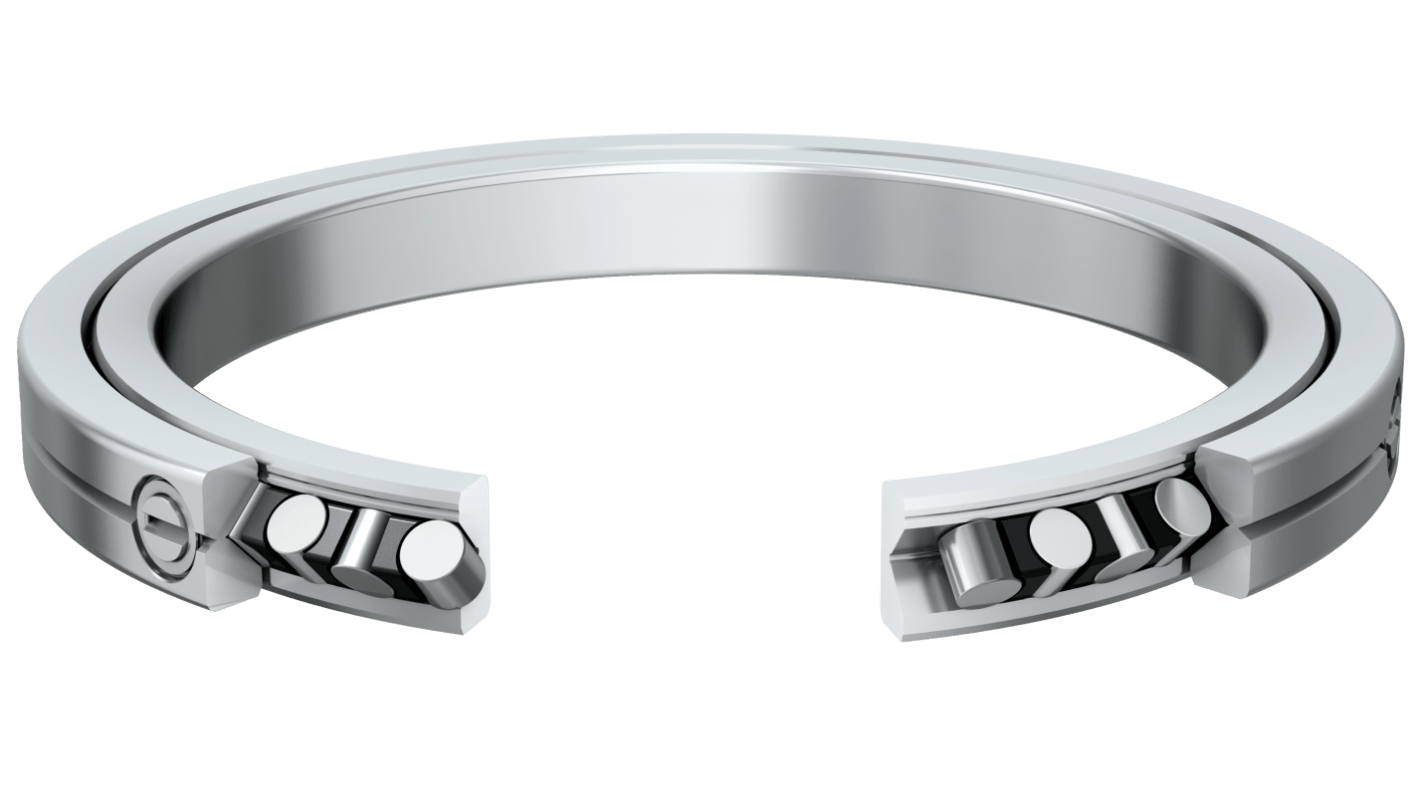

The INA Crossed Roller Bearings in dimension series 18, according to DIN 616, are designed to handle a combination of radial and axial loads with high precision. These bearings can support radial loads, which act perpendicular to the bearing's axis, as well as axial loads in one direction, where forces are applied along the bearing's axis in a single direction. Additionally, they are capable of supporting axial loads in two directions, allowing them to handle forces applied along the axis from both directions.
Grease lubrication
Oil lubrication
Not sealed
Small design envelope
