INA SX011828-A-VSP 140 mm I.D Roller Bearing, 175 mm O.D
- RS Stock No.:
- 312-137
- Mfr. Part No.:
- SX011828-A-VSP
- Brand:
- INA
Subtotal (1 unit)*
£1,051.85
(exc. VAT)
£1,262.22
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,051.85 |
*price indicative
- RS Stock No.:
- 312-137
- Mfr. Part No.:
- SX011828-A-VSP
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | INA | |
| Product Type | Roller Bearing | |
| Inside Diameter | 140 mm | |
| Race Width | 18mm | |
| Outside Diameter | 175 mm | |
| Dynamic Load Rating | 64000N | |
| Static Load Rating | 223000N | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand INA | ||
Product Type Roller Bearing | ||
Inside Diameter 140 mm | ||
Race Width 18mm | ||
Outside Diameter 175 mm | ||
Dynamic Load Rating 64000N | ||
Static Load Rating 223000N | ||
Standards/Approvals No | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE

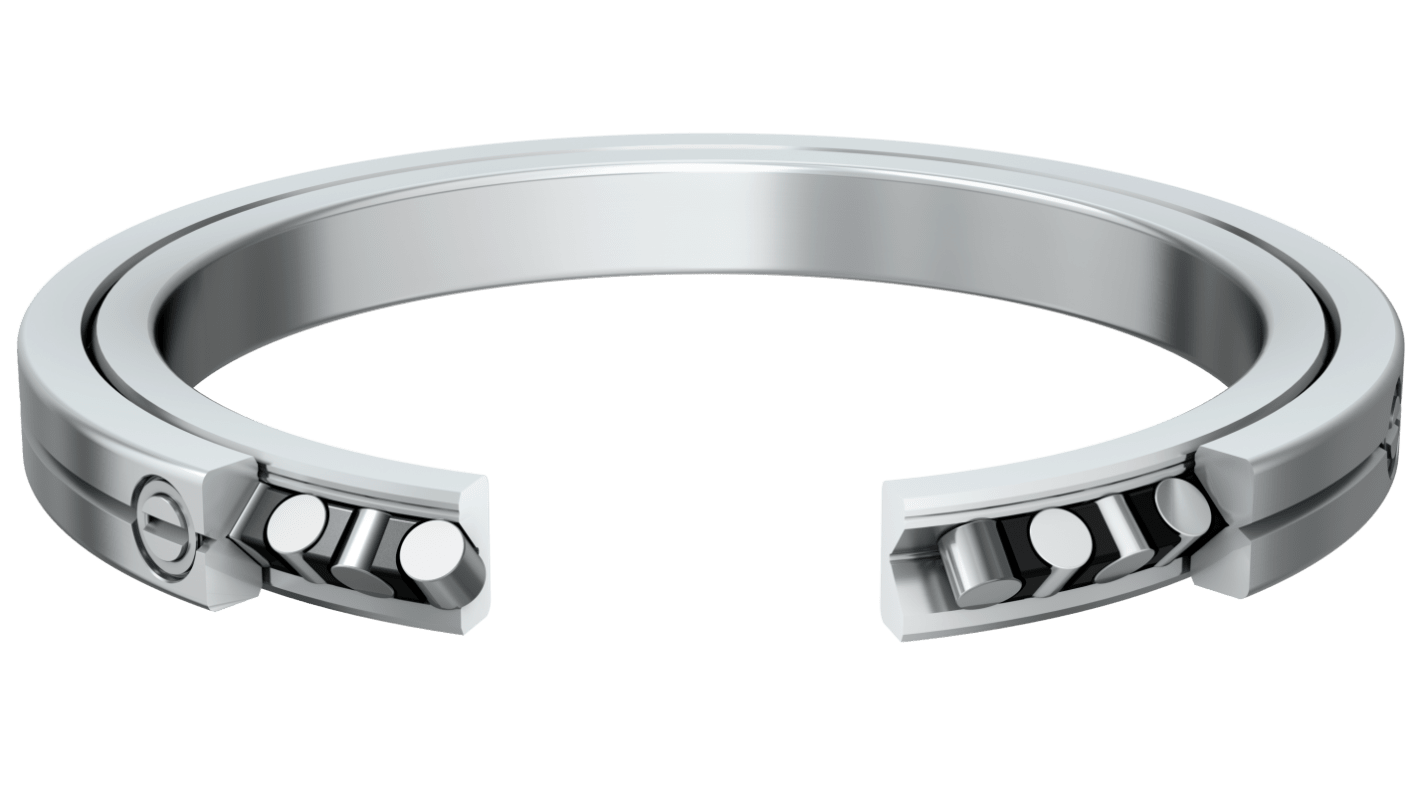

The INA Crossed Roller Bearings in dimension series 18, according to DIN 616, are designed to handle a combination of radial and axial loads with high precision. These bearings can support radial loads, which act perpendicular to the bearing's axis, as well as axial loads in one direction, where forces are applied along the bearing's axis in a single direction. Additionally, they are capable of supporting axial loads in two directions, allowing them to handle forces applied along the axis from both directions.
Grease lubrication
Oil lubrication
Not sealed
Small design envelope
