FAG 24024-BE-XL-C3 Cylindrical 120 mm I.D Roller Bearing, 180 mm O.D
- RS Stock No.:
- 310-478
- Mfr. Part No.:
- 24024-BE-XL-C3
- Brand:
- FAG
Subtotal (1 unit)*
£618.71
(exc. VAT)
£742.45
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £618.71 |
*price indicative
- RS Stock No.:
- 310-478
- Mfr. Part No.:
- 24024-BE-XL-C3
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Roller Bearing | |
| Inside Diameter | 120 mm | |
| Race Width | 60mm | |
| Bore Type | Cylindrical | |
| Cage Material | Carbon Steel | |
| Limiting Speed | 3450rpm | |
| Standards/Approvals | RoHS | |
| Dynamic Load Rating | 450000N | |
| Outside Diameter | 180 mm | |
| Internal Clearance | C3 | |
| Series | 240..-BE-XL | |
| Static Load Rating | 690000N | |
| Bearing Material | Steel | |
| Number of Rows | 2 | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Roller Bearing | ||
Inside Diameter 120 mm | ||
Race Width 60mm | ||
Bore Type Cylindrical | ||
Cage Material Carbon Steel | ||
Limiting Speed 3450rpm | ||
Standards/Approvals RoHS | ||
Dynamic Load Rating 450000N | ||
Outside Diameter 180 mm | ||
Internal Clearance C3 | ||
Series 240..-BE-XL | ||
Static Load Rating 690000N | ||
Bearing Material Steel | ||
Number of Rows 2 | ||
- COO (Country of Origin):
- DE

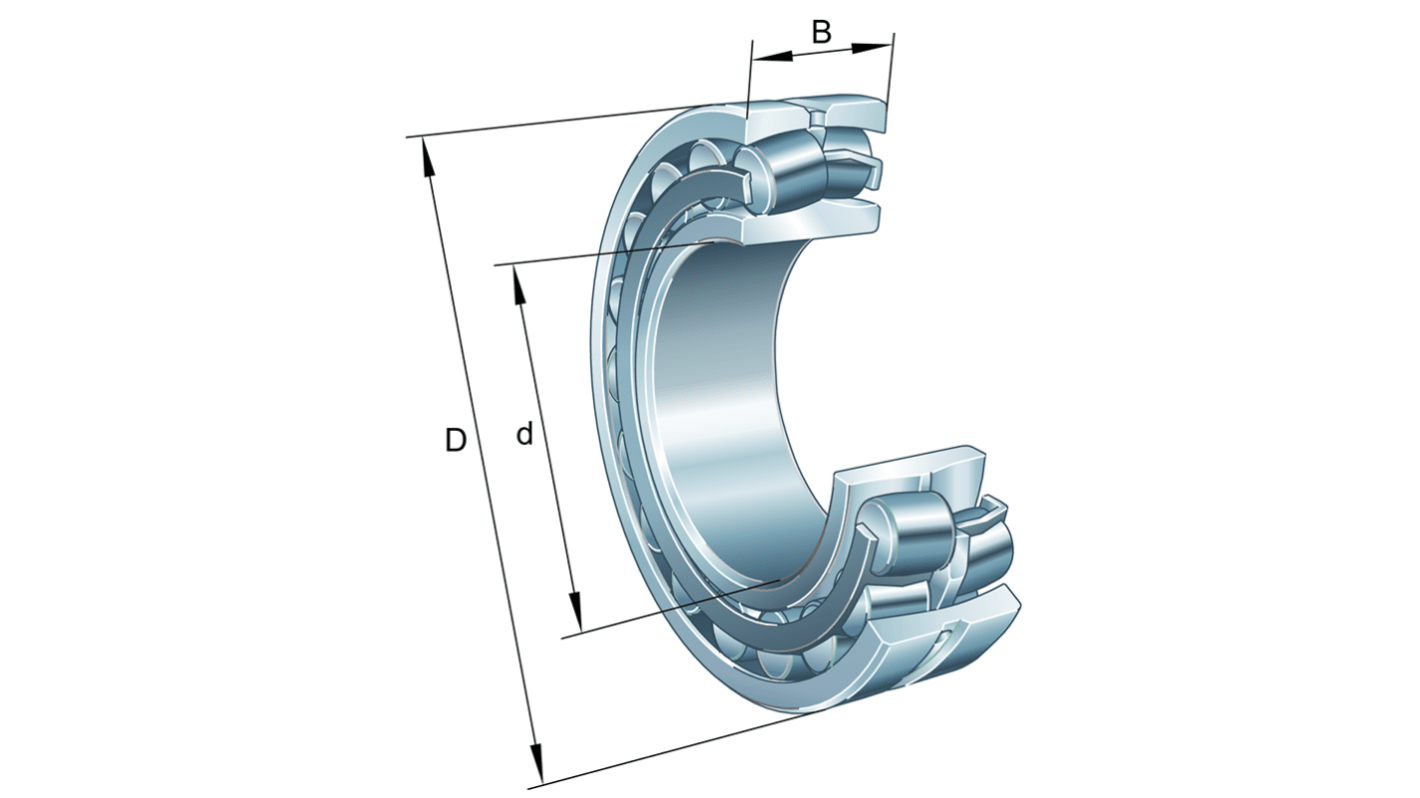

The FAG Spherical Roller Bearing offers an exceptional solution for demanding applications, combining robust design with high performance. Engineered for ultimate reliability, this bearing provides superior radial and axial load support, ensuring longevity even in challenging conditions. Its unique configuration, including a loose centre lip ring and a robust sheet metal cage, allows for effective load distribution and reduced friction. Specifically tailored for various industrial needs, this bearing maintains dynamic performance while accommodating angular misalignment. Whether for heavy machinery or precision equipment, this spherical roller bearing is an ideal choice for those seeking efficiency without compromising on quality.
Accommodates wide temperature ranges ensuring performance stability across diverse environments
Robust cage material enhances durability and resistance to wear
Maintenance friendly design simplifying inspection and servicing processes
