INA RNA6914-ZW-XL 80 mm ID Needle Roller Bearing Radial Roller, 100 mm OD
- RS Stock No.:
- 310-175
- Mfr. Part No.:
- RNA6914-ZW-XL
- Brand:
- INA
Subtotal (1 unit)*
£192.27
(exc. VAT)
£230.72
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £192.27 |
*price indicative
- RS Stock No.:
- 310-175
- Mfr. Part No.:
- RNA6914-ZW-XL
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | INA | |
| Product Type | Needle Roller Bearing | |
| Inside Diameter | 80 mm | |
| Race Width | 54mm | |
| Dynamic Load Rating | 145000N | |
| Limiting Speed | 5700rpm | |
| Standards/Approvals | No | |
| Number of Rows | 2 | |
| Outside Diameter | 100 mm | |
| Series | RNA69-ZW | |
| Static Load Rating | 265000N | |
| Bearing Type | Radial Roller | |
| Select all | ||
|---|---|---|
Brand INA | ||
Product Type Needle Roller Bearing | ||
Inside Diameter 80 mm | ||
Race Width 54mm | ||
Dynamic Load Rating 145000N | ||
Limiting Speed 5700rpm | ||
Standards/Approvals No | ||
Number of Rows 2 | ||
Outside Diameter 100 mm | ||
Series RNA69-ZW | ||
Static Load Rating 265000N | ||
Bearing Type Radial Roller | ||
RoHS Status: Exempt
- COO (Country of Origin):
- SK

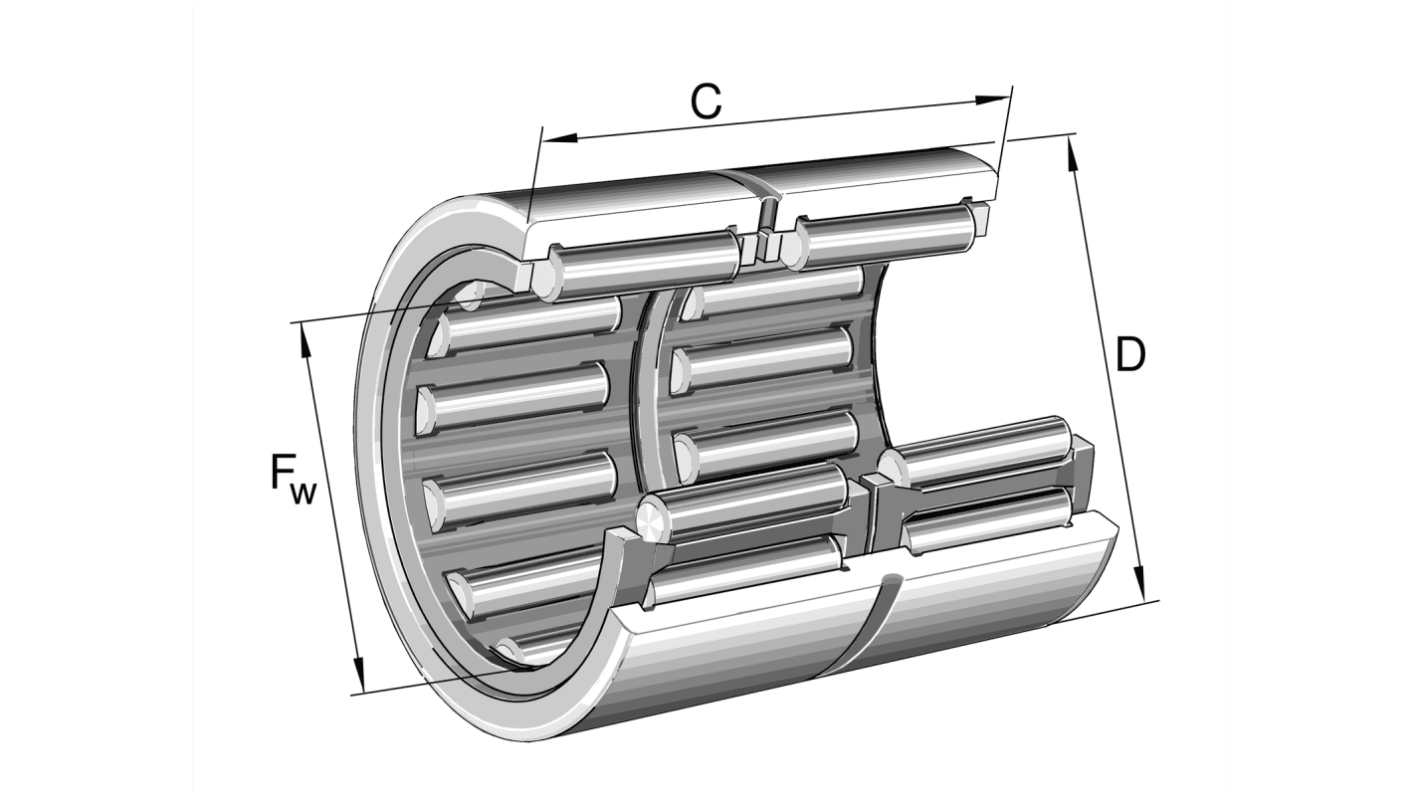

The INA needle roller bearing has an under roller diameter of 80 mm and an outside diameter (D) of 100 mm. The basic dynamic load rating (Cr) is 145,000 N, the basic static load rating (C0r) is 265,000 N, and the fatigue load limit (Cur) is 48,000 N in the radial direction.
Double row
Standard cage
