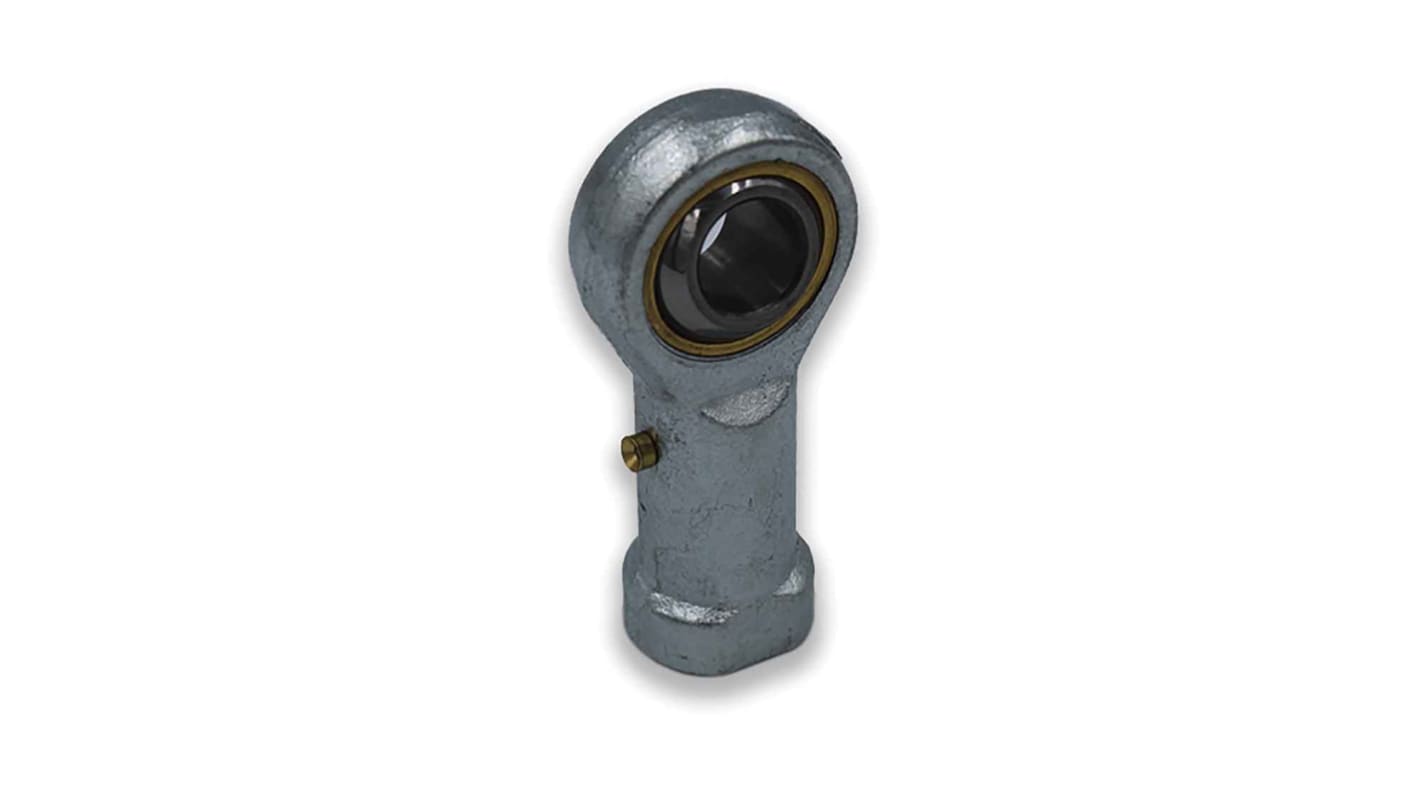

LDK M20 x 1.5 Female Carbon Steel Rod End, 20mm Bore, 100mm Long, Metric Thread Standard, Female Connection Gender
- RS Stock No.:
- 185-2474
- Mfr. Part No.:
- PHS 20
- Brand:
- LDK
Save 6% when you buy 10 units
Subtotal (1 unit)*
£60.31
(exc. VAT)
£72.37
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £60.31 |
| 5 - 9 | £57.90 |
| 10 + | £56.69 |
*price indicative
- RS Stock No.:
- 185-2474
- Mfr. Part No.:
- PHS 20
- Brand:
- LDK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | LDK | |
| Connection Size | M20 x 1.5 Female | |
| Bore Size | 20mm | |
| Material | Carbon Steel | |
| Dynamic Load Rating | 23kN | |
| Static Load Rating | 46.5kN | |
| Overall Length | 100mm | |
| Connection Thread Standard | Metric | |
| Connection Gender | Female | |
Select all | ||
|---|---|---|
Brand LDK | ||
Connection Size M20 x 1.5 Female | ||
Bore Size 20mm | ||
Material Carbon Steel | ||
Dynamic Load Rating 23kN | ||
Static Load Rating 46.5kN | ||
Overall Length 100mm | ||
Connection Thread Standard Metric | ||
Connection Gender Female | ||
Non Compliant
- COO (Country of Origin):
- CN
Ball: AISI 52100 bearing Steel, heat treated, HRC58-64, Precision ground, polished
Body: Carbon steel,clear Zinc plated.
Race: Brass
Sliding contact surfaces: Steel/Brass
Body: Carbon steel,clear Zinc plated.
Race: Brass
Sliding contact surfaces: Steel/Brass
