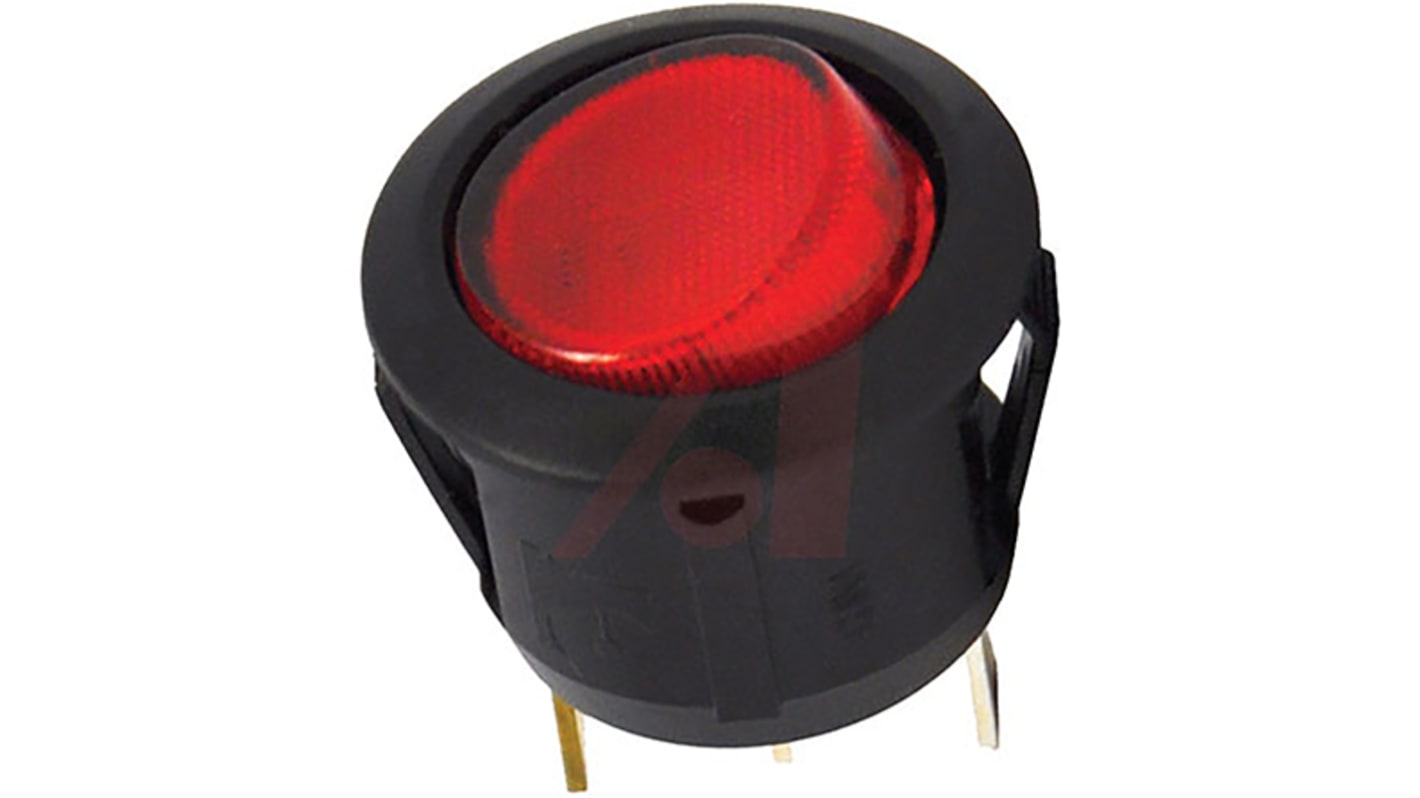

Carling Technologies Illuminated SPDT, On-Off Rocker Switch Panel Mount
- RS Stock No.:
- 881-1530
- Mfr. Part No.:
- LRR112-2B-JN
- Brand:
- Carling Technologies
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 10)
£2.034
(exc. VAT)
£2.441
(inc. VAT)
- RS Stock No.:
- 881-1530
- Mfr. Part No.:
- LRR112-2B-JN
- Brand:
- Carling Technologies
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Carling Technologies | |
| Contact Configuration | SPDT | |
| Switch Operation | On-Off | |
| Panel Cut Out Diameter | 20.2mm | |
| Contact Current Rating | 10 A | |
| Illuminated | Yes | |
| Actuator Colour | Red | |
| Mounting Type | Panel Mount | |
| Terminal Type | Quick Connect | |
| Panel Cut Out Size | 3 (Dia.)mm | |
| AC Voltage Rating | 250V | |
| Actuator Shape | Round | |
| Mechanical Life | 100000Operations | |
| Case Material | Nylon | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | 0°C | |
| Operating Temperature Range | 0 → +85°C | |
Select all | ||
|---|---|---|
Brand Carling Technologies | ||
Contact Configuration SPDT | ||
Switch Operation On-Off | ||
Panel Cut Out Diameter 20.2mm | ||
Contact Current Rating 10 A | ||
Illuminated Yes | ||
Actuator Colour Red | ||
Mounting Type Panel Mount | ||
Terminal Type Quick Connect | ||
Panel Cut Out Size 3 (Dia.)mm | ||
AC Voltage Rating 250V | ||
Actuator Shape Round | ||
Mechanical Life 100000Operations | ||
Case Material Nylon | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature 0°C | ||
Operating Temperature Range 0 → +85°C | ||
RR Series Round Rocker Switches
Carling Technologies RR Series round rocker switches feature a unique sculpted rocker design, and electrical ratings up to 12A 125VAC, 10A 250VAC. The RR Series is available with custom imprinting, and the illuminated LRR-Series can be wired to accommodate dependent or independent, illumination, neon or incandescent lamps.
Single or double throw circuits
Wide variety of rocker colours and styles
High inrush current
High mechanical and electrical life
Momentary and maintained options
Wide variety of rocker colours and styles
High inrush current
High mechanical and electrical life
Momentary and maintained options
Carling Technologies® Rocker Switches
