Carling Technologies DPST, On-Off Rocker Switch Panel Mount
- RS Stock No.:
- 879-8449
- Mfr. Part No.:
- 62115919-0-0-N
- Brand:
- Carling Technologies
Discontinued product
- RS Stock No.:
- 879-8449
- Mfr. Part No.:
- 62115919-0-0-N
- Brand:
- Carling Technologies
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- MX
Product Details

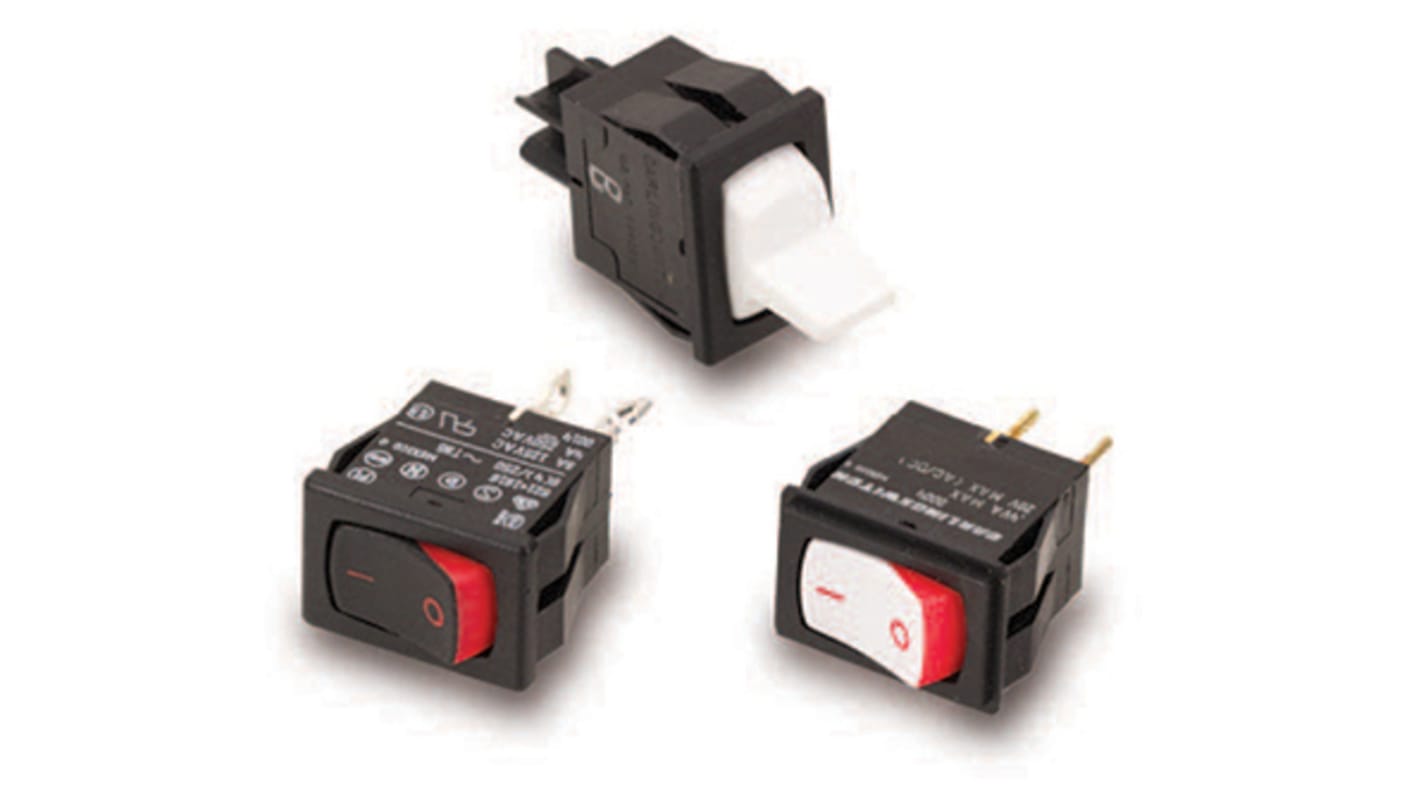

611/621 Series Miniature Rocker Switches
The 611/621 Series of sub-miniature rocker switches from Carling Technologies® are double insulated and available in single or double pole configurations. These switches are offered in a wide range of single and double throw momentary and maintained circuits. They come in a variety of rocker styles, colours, terminations and legend options. Snap-in, PC back panel and PC front panel mounting options are available.
Typical Applications: Audio-visual and power supplies
Approvals
UL, CSA & VDE
Carling Technologies® Rocker Switches
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | DPST |
| Switch Operation | On-Off |
| Panel Cut Out Width | 19.8mm |
| Panel Cut Out Height | 12.9mm |
| Contact Current Rating | 8 A |
| Actuator Colour | Black |
| Mounting Type | Panel Mount |
| Terminal Type | Quick Connect |
| AC Voltage Rating | 250V |
| Actuator Shape | Rectangular |
| Panel Cut Out Size | 12.9 x 19.8mm |
| Case Material | Nylon |
| Maximum Operating Temperature | +85°C |
| Mechanical Life | 100000Operations |
| Operating Temperature Range | 0 → +85°C |
| Minimum Operating Temperature | 0°C |
