Product Details

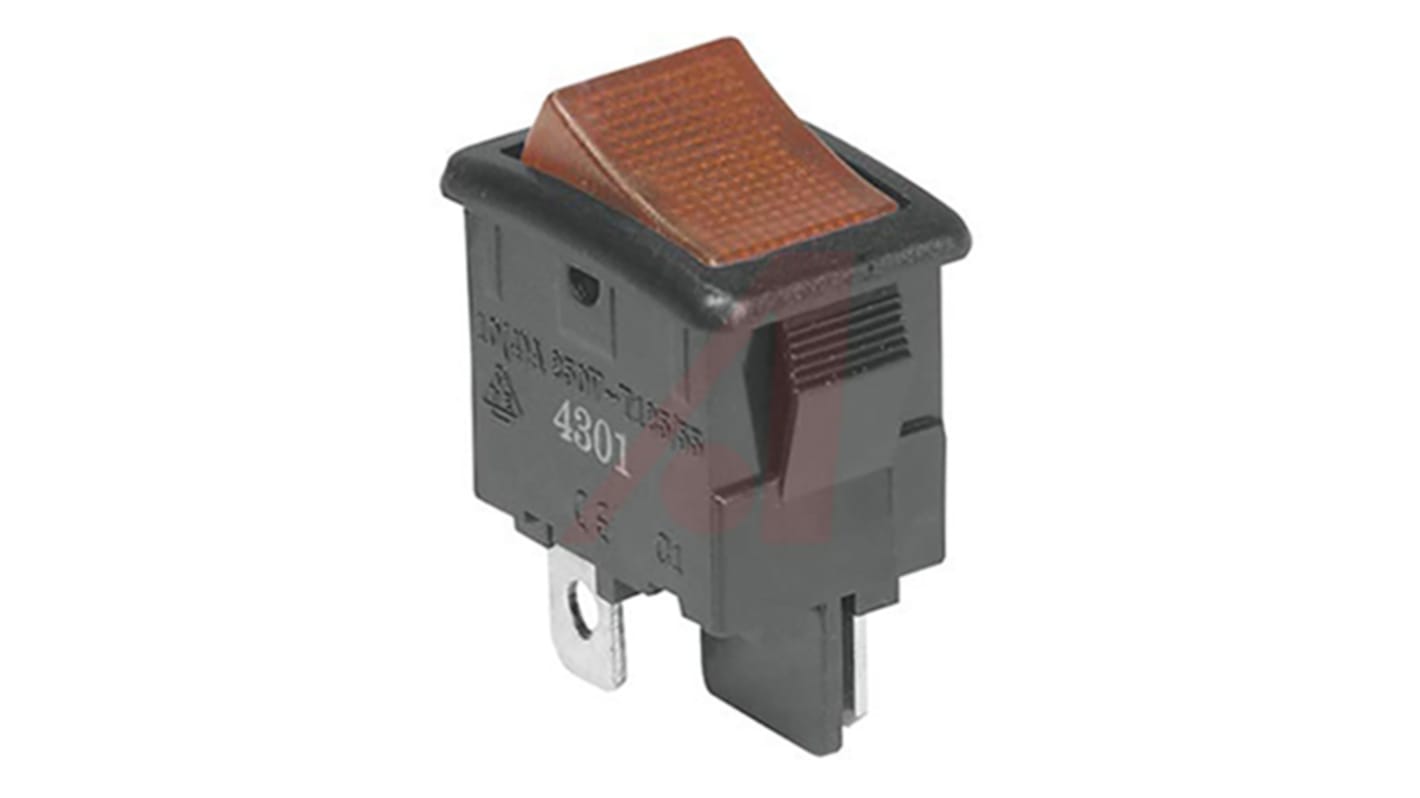

LR Series Miniature Rocker Switches
Single-pole and double-pole configurations
Lighted and non-lighted options
Available in a wide variety of colours
High current switching in a compact package
Variety of terminal styles available
Self-locking tabs to fit industry standard panel cut-outs
Mechanical life: min. 100,000 operations
Lighted and non-lighted options
Available in a wide variety of colours
High current switching in a compact package
Variety of terminal styles available
Self-locking tabs to fit industry standard panel cut-outs
Mechanical life: min. 100,000 operations
Specifications
Attribute | Value |
---|---|
Contact Configuration | SPST |
Switch Operation | On-Off |
Panel Cut Out Width | 19.69mm |
Panel Cut Out Height | 12.9mm |
Contact Current Rating | 10 A |
Illuminated | Yes |
Actuator Colour | Red |
Mounting Type | Panel Mount |
Terminal Type | Quick Connect |
AC Voltage Rating | 125 V, 250 V |
Actuator Shape | Rectangular |
Panel Cut Out Size | 12.9 x 19.69mm |
Maximum Operating Temperature | +65°C |
Mechanical Life | 100000Operations |
Operating Temperature Range | -20 → +65°C |
Contact Resistance | 20mΩ |
Minimum Operating Temperature | -20°C |
Contact Material | Silver Alloy |
Case Material | Nylon 66 |
