Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 706-3985
- Mfr. Part No.:
- KRE2BNA1BBB
- Brand:
- ZF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ZF | |
| Contact Configuration | SPDT | |
| Switch Operation | On-(On) | |
| Panel Cut Out Width | 13mm | |
| Panel Cut Out Height | 19.4mm | |
| Contact Current Rating | 16 A | |
| Illuminated | No | |
| Actuator Colour | Black | |
| Mounting Type | Panel Mount | |
| IP Rating | IP65 | |
| Terminal Type | Quick Connect | |
| AC Voltage Rating | 125 V, 250V | |
| Panel Cut Out Size | 19.4 x 13mm | |
| Actuator Shape | Rectangular | |
| DC Voltage Rating | 14 V, 28V | |
| Contact Material | Silver Alloy | |
| Case Material | Nylon 66 | |
| Minimum Operating Temperature | -25°C | |
| Contact Resistance | 50mΩ | |
| Operating Temperature Range | -25 → +85°C | |
| Mechanical Life | 100000Operations | |
| Maximum Operating Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand ZF | ||
Contact Configuration SPDT | ||
Switch Operation On-(On) | ||
Panel Cut Out Width 13mm | ||
Panel Cut Out Height 19.4mm | ||
Contact Current Rating 16 A | ||
Illuminated No | ||
Actuator Colour Black | ||
Mounting Type Panel Mount | ||
IP Rating IP65 | ||
Terminal Type Quick Connect | ||
AC Voltage Rating 125 V, 250V | ||
Panel Cut Out Size 19.4 x 13mm | ||
Actuator Shape Rectangular | ||
DC Voltage Rating 14 V, 28V | ||
Contact Material Silver Alloy | ||
Case Material Nylon 66 | ||
Minimum Operating Temperature -25°C | ||
Contact Resistance 50mΩ | ||
Operating Temperature Range -25 → +85°C | ||
Mechanical Life 100000Operations | ||
Maximum Operating Temperature +85°C | ||
- COO (Country of Origin):
- CN

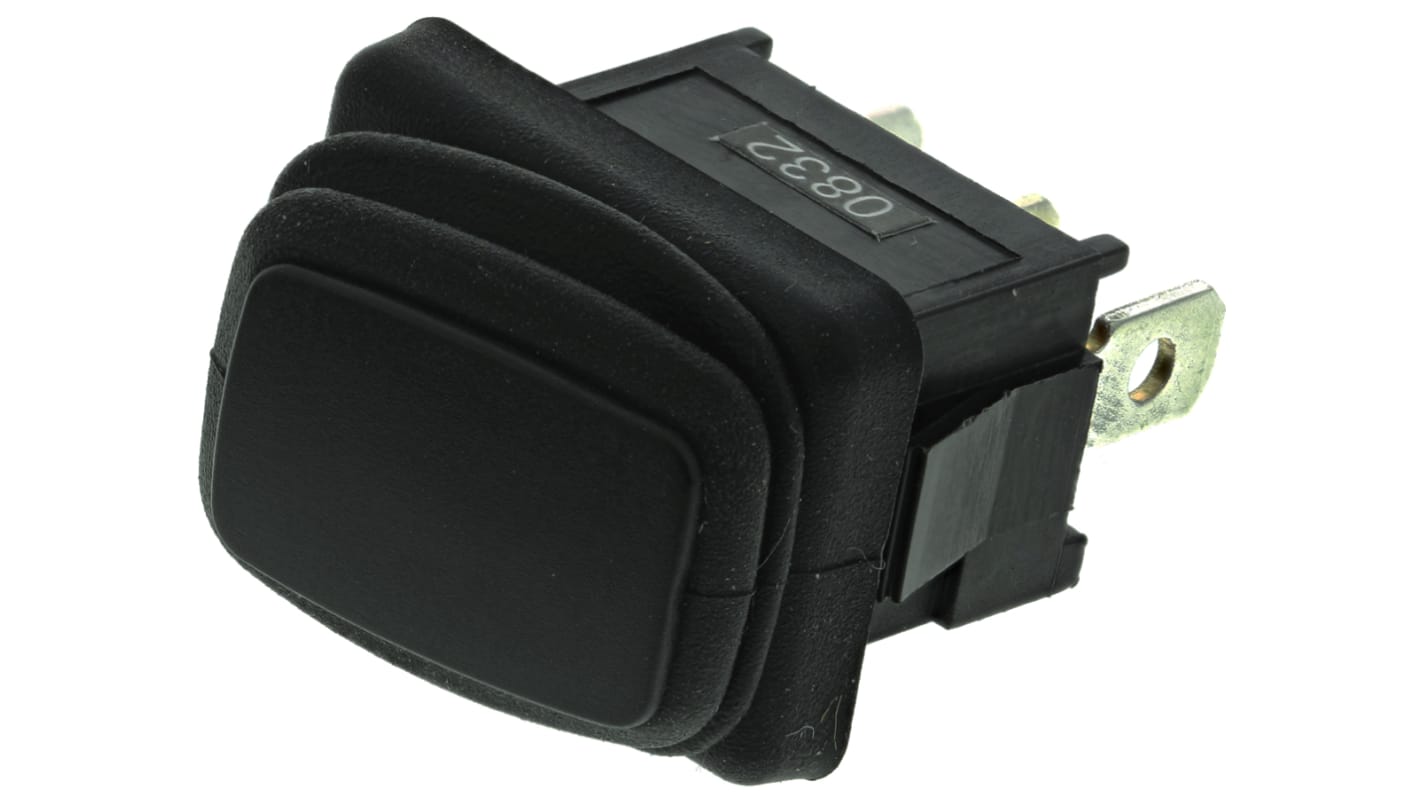

KR Series Miniature Waterproof Rocker Switch
From Cherry, these KR series enclosed miniature rocker switches are robust, waterproof and easy to install. The KR series are a snap-in mounted rocker switch with a nylon 66 housing and silicone rubber boot that provides protection to IP65.
Features and Benefits:
• Lighted and non-lighted versions available
• Maintained-action and momentary options
• Snap-in mounting
• Mechanical life: 100,000 cycles
• DC electrical life: 25,000 cycles
• Maintained-action and momentary options
• Snap-in mounting
• Mechanical life: 100,000 cycles
• DC electrical life: 25,000 cycles
The KR Series includes:
• Stock number 706-3972 is a red illuminated rocker switch
• Stock number 706-3976 is a green illuminated rocker switch
• Stock number 706-3979 is a black non-illuminated rocker switch with an O/I legend
• Stock number 706-3985 is a black non-illuminated rocker switch
• Stock number 706-3985 is a black non-illuminated rocker switch
• Stock number 706-3988 is a black non-illuminated rocker switch
• Stock number 868-1663 is a red illuminated rocker switch
• Stock number 706-3976 is a green illuminated rocker switch
• Stock number 706-3979 is a black non-illuminated rocker switch with an O/I legend
• Stock number 706-3985 is a black non-illuminated rocker switch
• Stock number 706-3985 is a black non-illuminated rocker switch
• Stock number 706-3988 is a black non-illuminated rocker switch
• Stock number 868-1663 is a red illuminated rocker switch
