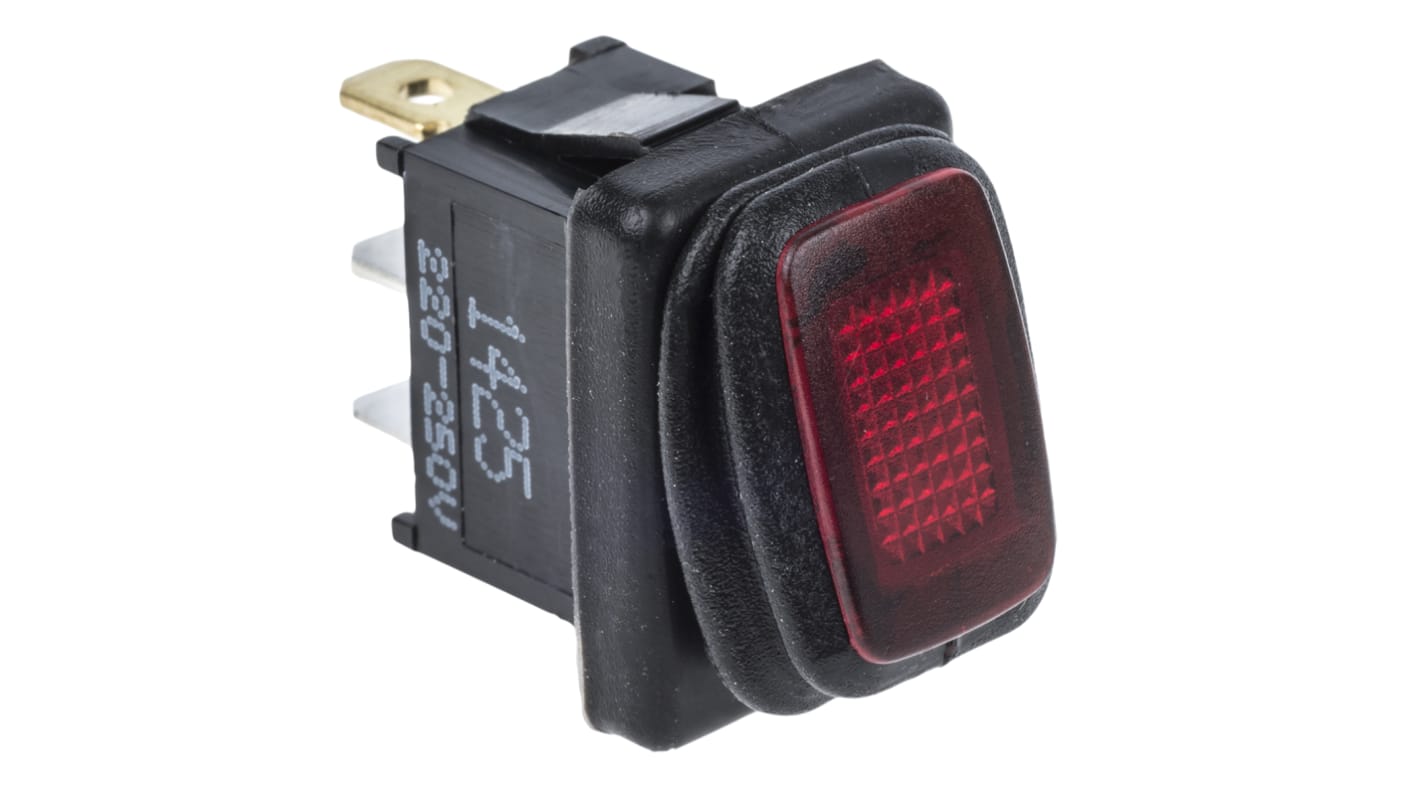

ZF Illuminated Single Pole Single Throw (SPST), Latching Rocker Switch Panel Mount

  • RS Stock No. 706-3972
  • Mfr. Part No. KRE2AEA2RBB
  • Brand ZF
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

KR Series Miniature Waterproof Rocker Switch

From Cherry, these KR series enclosed miniature rocker switches are robust, waterproof and easy to install. The KR series are a snap-in mounted rocker switch with a nylon 66 housing and silicone rubber boot that provides protection to IP65.

Features and Benefits:

• Lighted and non-lighted versions available
• Maintained-action and momentary options
• Snap-in mounting
• Mechanical life: 100,000 cycles
• DC electrical life: 25,000 cycles

The KR Series includes:

• Stock number 706-3972 is a red illuminated rocker switch
• Stock number 706-3976 is a green illuminated rocker switch
• Stock number 706-3979 is a black non-illuminated rocker switch with an O/I legend
• Stock number 706-3985 is a black non-illuminated rocker switch
• Stock number 706-3985 is a black non-illuminated rocker switch
• Stock number 706-3988 is a black non-illuminated rocker switch
• Stock number 868-1663 is a red illuminated rocker switch

Specifications
Attribute Value
Contact Configuration Single Pole Single Throw (SPST)
Switch Operation Latching
Panel Cut Out Width 13mm
Panel Cut Out Height 19.4mm
Contact Current Rating 10 A @ 250 V ac
Illuminated Yes
Actuator Colour Red
Mounting Type Panel Mount
IP Rating IP65
Terminal Type Quick Connect
Minimum Operating Temperature -25°C
Maximum Operating Temperature +85°C
Panel Cut Out Size 19.4 x 13mm
Operating Temperature Range -25 → +85°C
Mechanical Life 100000Operations
Case Material Nylon 66
Contact Resistance 50mΩ
Contact Material Silver Alloy
51 In stock for FREE next working day delivery
Price Each
£ 3.44
(exc. VAT)
£ 4.13
(inc. VAT)
Units
Per unit
1 - 49
£3.44
50 - 99
£2.77
100 +
£1.51
