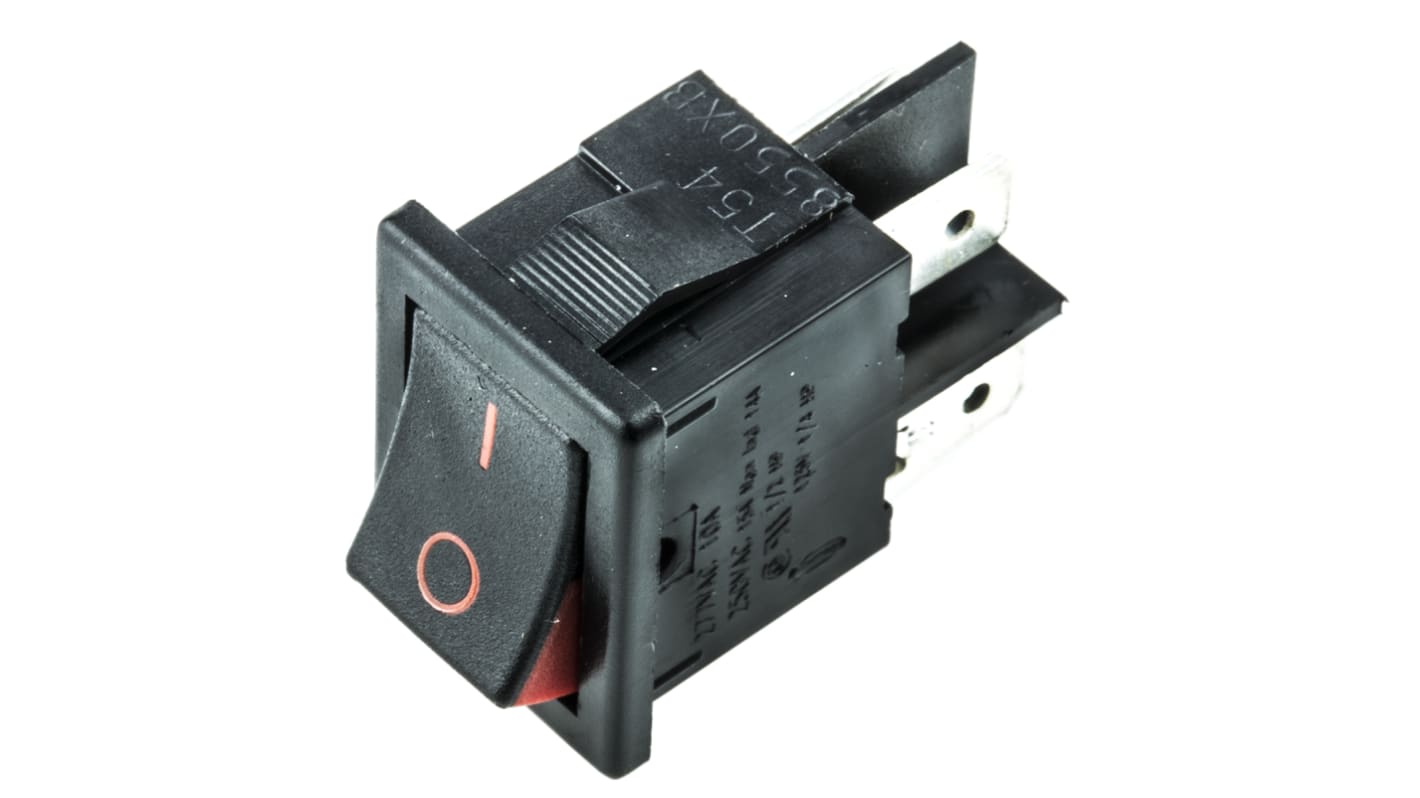

Arcolectric DPST, On-Off Rocker Switch Panel Mount
- RS Stock No.:
- 278-9856
- Mfr. Part No.:
- H8550XBAAA
- Brand:
- Arcolectric
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 278-9856
- Mfr. Part No.:
- H8550XBAAA
- Brand:
- Arcolectric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Arcolectric | |
| Contact Configuration | DPST | |
| Switch Operation | On-Off | |
| Panel Cut Out Width | 12.9mm | |
| Panel Cut Out Height | 19.4mm | |
| Contact Current Rating | 10 A | |
| Illuminated | No | |
| Actuator Colour | Red | |
| Mounting Type | Panel Mount | |
| Terminal Type | Quick Connect | |
| AC Voltage Rating | 250V | |
| Actuator Shape | Rectangular | |
| Panel Cut Out Size | 19.4 x 12.9mm | |
Select all | ||
|---|---|---|
Brand Arcolectric | ||
Contact Configuration DPST | ||
Switch Operation On-Off | ||
Panel Cut Out Width 12.9mm | ||
Panel Cut Out Height 19.4mm | ||
Contact Current Rating 10 A | ||
Illuminated No | ||
Actuator Colour Red | ||
Mounting Type Panel Mount | ||
Terminal Type Quick Connect | ||
AC Voltage Rating 250V | ||
Actuator Shape Rectangular | ||
Panel Cut Out Size 19.4 x 12.9mm | ||
- COO (Country of Origin):
- TN
Switches Series 8550
Miniature panel-mounted toggle switches.
Cutting tool to use: stock no. 600-155.
Front face position marking I-O.
Recommended for Class II equipment.
Faston 4.8 x 0.8 mm terminal connection.
Cutting tool to use: stock no. 600-155.
Front face position marking I-O.
Recommended for Class II equipment.
Faston 4.8 x 0.8 mm terminal connection.
Approvals
UL, CSA, VDE and NF USE
