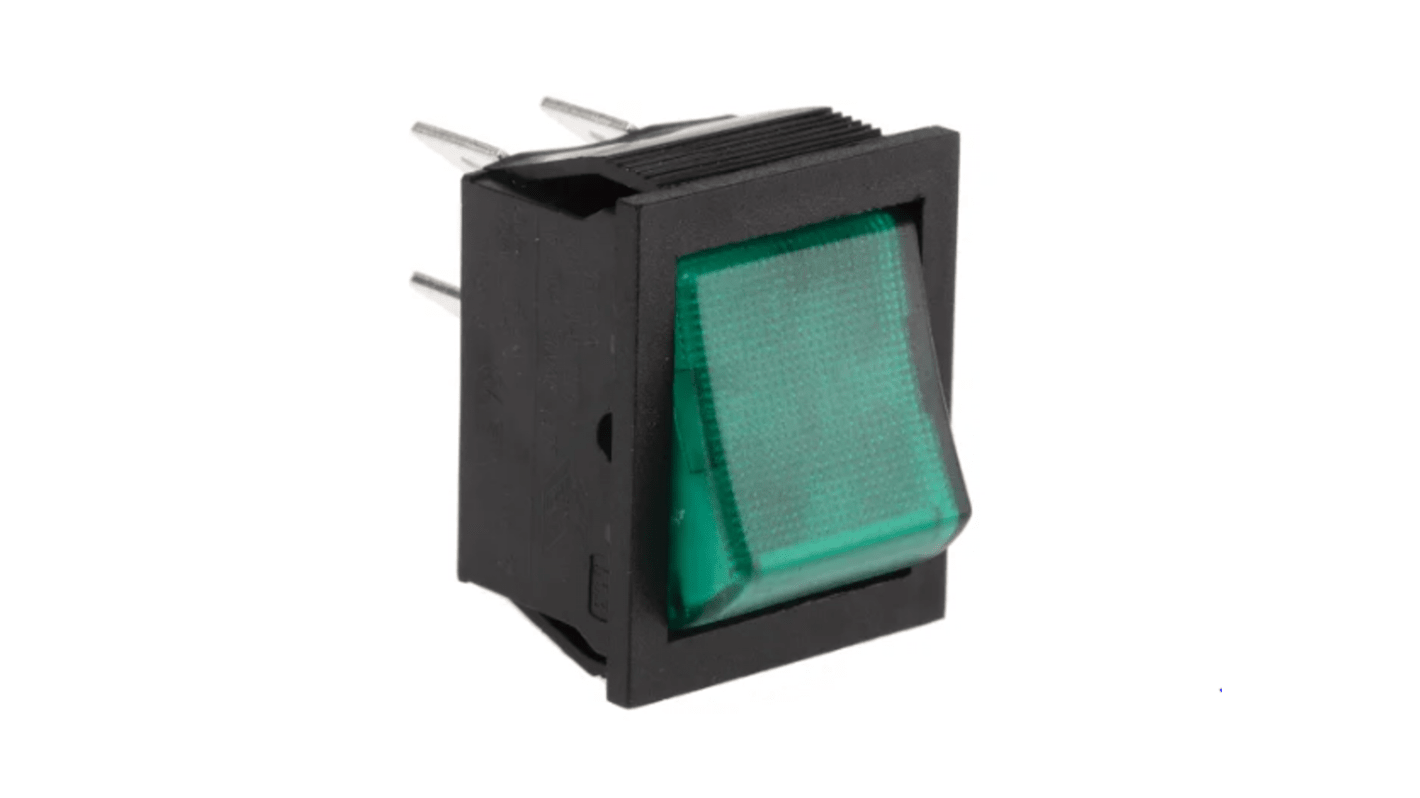

Bulgin, On-Off Rocker Switch Panel Mount
- RS Stock No.:
- 236-4060
- Distrelec Article No.:
- 303-90-543
- Mfr. Part No.:
- C1553VQNAL
- Brand:
- Bulgin
Save 23% when you buy 100 units
Subtotal (1 unit)*
£3.03
(exc. VAT)
£3.64
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 136 unit(s) ready to ship
- Plus 25 unit(s) ready to ship from another location
- Plus 159 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £3.03 |
5 - 9 | £2.65 |
10 - 49 | £2.53 |
50 - 99 | £2.42 |
100 + | £2.33 |
*price indicative
- RS Stock No.:
- 236-4060
- Distrelec Article No.:
- 303-90-543
- Mfr. Part No.:
- C1553VQNAL
- Brand:
- Bulgin
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Bulgin | |
Switch Operation | On-Off | |
Panel Cut Out Width | 22.3/22.4mm | |
Panel Cut Out Height | 28.2/28.3mm | |
Illuminated | No | |
Mounting Type | Panel Mount | |
Select all | ||
---|---|---|
Brand Bulgin | ||
Switch Operation On-Off | ||
Panel Cut Out Width 22.3/22.4mm | ||
Panel Cut Out Height 28.2/28.3mm | ||
Illuminated No | ||
Mounting Type Panel Mount | ||
- COO (Country of Origin):
- TN
Bulgin 1550 Series Rocker Switch, 16A Contact Current Rating, 250V AC Voltage Rating - C1553VQNAL
This rocker switch is a standard component featuring an on-off operation and designed for panel mounting. With a panel cut-out size of 22.3 x 28.2 mm, this switch is ideal for various applications where control and functionality are required. Its black actuator colour and compact design make it a versatile choice for electrical installations.
Features & Benefits
• Non-illuminated feature reduces complexity in operation
• Designed for easy panel mounting with tab terminal type
• Clear legends indicate function with 'On' and 'Off' symbols
• Robust design operates effectively up to +85°C
• Designed for easy panel mounting with tab terminal type
• Clear legends indicate function with 'On' and 'Off' symbols
• Robust design operates effectively up to +85°C
Applications
• Used in automation control panels for machinery
• Effective in electrical devices requiring simple toggling
• Ideal for use in consumer electronics with limited space
• Utilised in mechanical systems requiring reliable switching
• Effective in electrical devices requiring simple toggling
• Ideal for use in consumer electronics with limited space
• Utilised in mechanical systems requiring reliable switching
What should be considered regarding installation requirements?
Proper installation involves ensuring the panel cut-out size matches specifications of 22.3 x 28.2 mm for optimal fit and function. It is recommended to maintain the panel thickness within the specified range to guarantee a secure mount.
How does the actuation style of this switch enhance its usability?
The rocker switch design allows for easy tactile feedback, making it simple to switch operations without looking, ideal for environments where quick access is essential.
What are the electrical ratings and how do they ensure safe operation?
Rated at 16A and 250V AC, the specifications ensure that it can handle substantial loads, making it suitable for high current applications while maintaining safety in operation.
Can this switch be used with different terminal types?
Yes, it can accommodate a variety of terminal connections including push-on, solder, and PCB terminals, providing flexibility for various wiring configurations.
