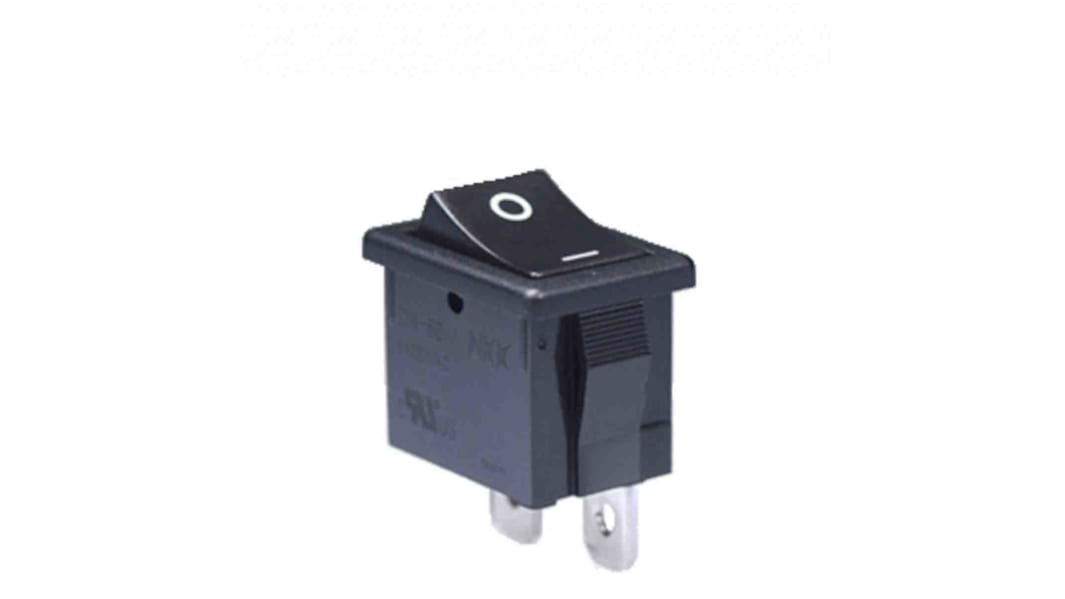

NKK Switches SPST, On-Off Rocker Switch Panel Mount
- RS Stock No.:
- 196-0261
- Mfr. Part No.:
- CWSB11AA1H
- Brand:
- NKK Switches
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 196-0261
- Mfr. Part No.:
- CWSB11AA1H
- Brand:
- NKK Switches
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NKK Switches | |
| Contact Configuration | SPST | |
| Switch Operation | On-Off | |
| Panel Cut Out Width | 15.1mm | |
| Panel Cut Out Height | 18.6mm | |
| Contact Current Rating | 6 A | |
| Illuminated | No | |
| Actuator Colour | Black | |
| Mounting Type | Panel Mount | |
| Legend Text | I, O | |
| AC Voltage Rating | 125V | |
| Case Material | Polyamide | |
| Contact Material | Silver Alloy | |
| Mechanical Life | 30000Operations | |
| Operating Temperature Range | -20 → +85°C | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +85°C | |
| Legend Text Colour | White | |
Select all | ||
|---|---|---|
Brand NKK Switches | ||
Contact Configuration SPST | ||
Switch Operation On-Off | ||
Panel Cut Out Width 15.1mm | ||
Panel Cut Out Height 18.6mm | ||
Contact Current Rating 6 A | ||
Illuminated No | ||
Actuator Colour Black | ||
Mounting Type Panel Mount | ||
Legend Text I, O | ||
AC Voltage Rating 125V | ||
Case Material Polyamide | ||
Contact Material Silver Alloy | ||
Mechanical Life 30000Operations | ||
Operating Temperature Range -20 → +85°C | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +85°C | ||
Legend Text Colour White | ||
- COO (Country of Origin):
- CN
The NKK Switches Miniature Power Rocker Switch has a Rocker Cap type actuator and Panel Mount mounting type.
Poles SPST
Termination Style Right Angle PC Terminals
Termination Style Right Angle PC Terminals
