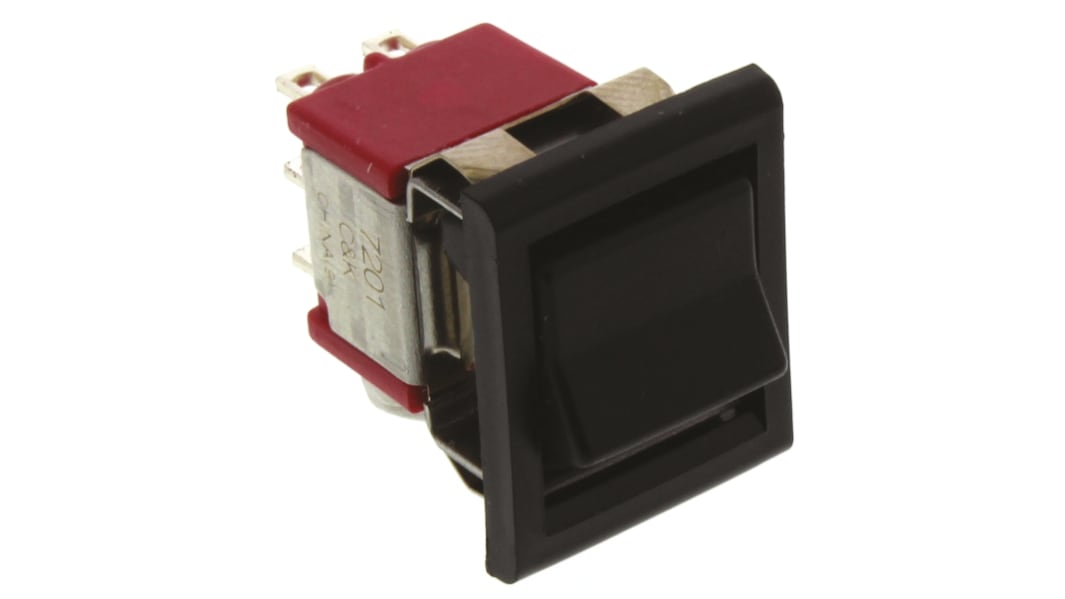

C & K Double Pole Double Throw (DPDT), Latching Rocker Switch Panel Mount

  • RS Stock No. 179-1050
  • Mfr. Part No. 7201J51ZQE22
  • Brand C & K
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Rocker Switches

Snap-in Panel Mount
Series of single or double pole rocker switches
Centre off and non centre off versions available
Fitted on a panel in a 12.7x15.25 mm cut-out with a maximum thickness of 3.18 mm
A 5 mm Led clamp is available for mounting beside the switches
To ensure effective mounting a frame and clip should be used
Silver contacts
Contact Rating-A 2A
Contact Rating-V 250Vac; 5A @ 28 Vdc

Approvals

7777

Specifications
Attribute Value
Contact Configuration Double Pole Double Throw (DPDT)
Switch Operation Latching
Panel Cut Out Width 20.32mm
Panel Cut Out Height 12.7mm
Contact Current Rating 5 A @ 28 V dc
Illuminated No
Actuator Colour Black
Mounting Type Panel Mount
IP Rating IP00
Terminal Type Solder
Actuator Shape Rectangular
AC Voltage Rating 250V
Maximum Operating Temperature +85°C
Case Material Stainless Steel
Operating Temperature Range -30 → +85°C
Minimum Operating Temperature -30°C
DC Voltage Rating 28V
Contact Resistance 10mΩ
Contact Material Silver Plated Silver Alloy
747 In stock for FREE next working day delivery
Price Each
£ 4.80
(exc. VAT)
£ 5.76
(inc. VAT)
Units
Per unit
1 +
£4.80
