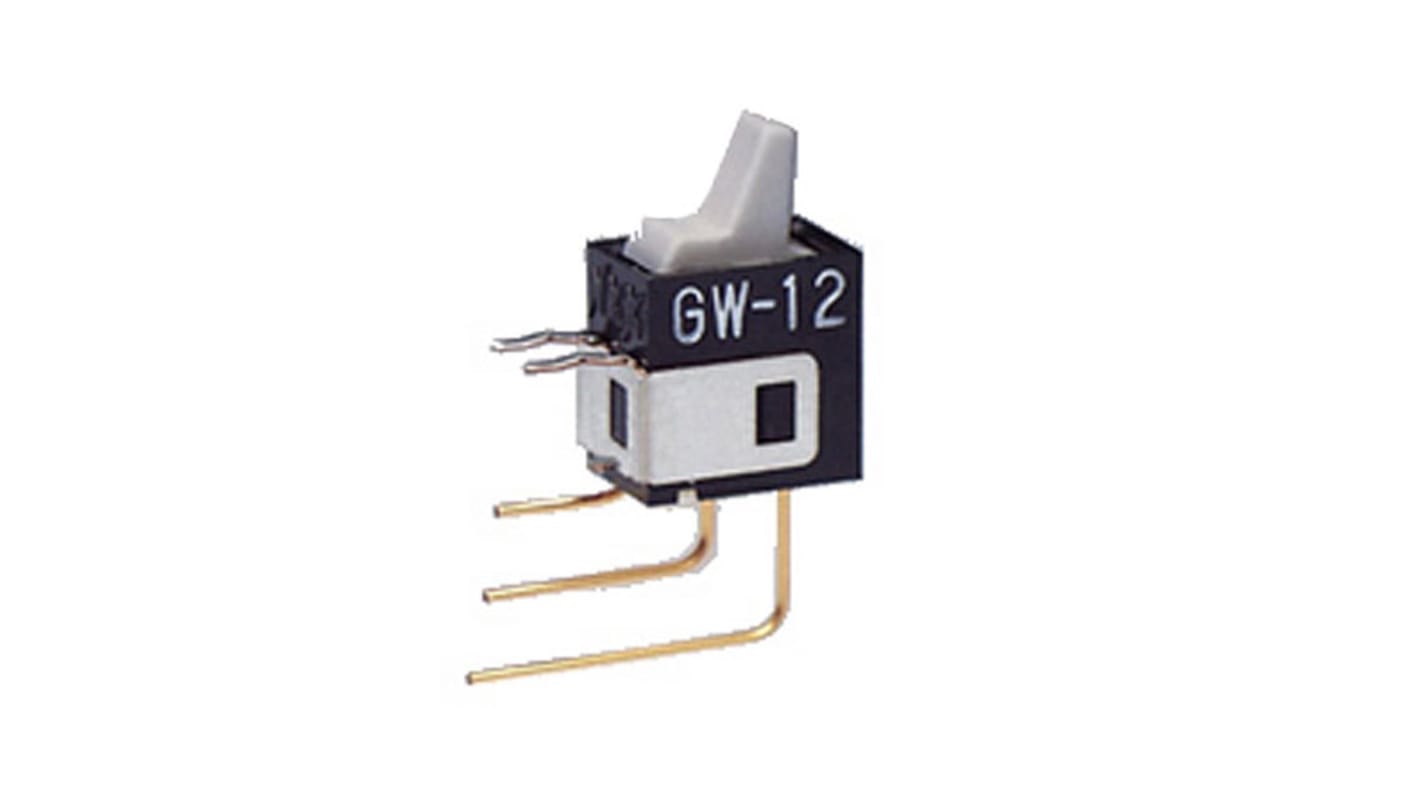

NKK Switches SPDT, On-(On) Rocker Switch PCB
- RS Stock No.:
- 125-1898
- Mfr. Part No.:
- GW12LHV
- Brand:
- NKK Switches
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 125-1898
- Mfr. Part No.:
- GW12LHV
- Brand:
- NKK Switches
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NKK Switches | |
| Contact Configuration | SPDT | |
| Switch Operation | On-(On) | |
| Contact Current Rating | 100 mA | |
| Illuminated | No | |
| Actuator Colour | Grey | |
| Mounting Type | PCB | |
| Terminal Type | PC Pin | |
| DC Voltage Rating | 28V | |
| AC Voltage Rating | 28V | |
| Actuator Shape | Rectangular | |
| Maximum Operating Temperature | +85°C | |
| Mechanical Life | 50000Operations | |
| Operating Temperature Range | -30 → +85°C | |
| Contact Material | Phosphor Bronze | |
| Minimum Operating Temperature | -30°C | |
| Case Material | Glass Fibre Reinforced Polyamide | |
| Contact Resistance | 80mΩ | |
Select all | ||
|---|---|---|
Brand NKK Switches | ||
Contact Configuration SPDT | ||
Switch Operation On-(On) | ||
Contact Current Rating 100 mA | ||
Illuminated No | ||
Actuator Colour Grey | ||
Mounting Type PCB | ||
Terminal Type PC Pin | ||
DC Voltage Rating 28V | ||
AC Voltage Rating 28V | ||
Actuator Shape Rectangular | ||
Maximum Operating Temperature +85°C | ||
Mechanical Life 50000Operations | ||
Operating Temperature Range -30 → +85°C | ||
Contact Material Phosphor Bronze | ||
Minimum Operating Temperature -30°C | ||
Case Material Glass Fibre Reinforced Polyamide | ||
Contact Resistance 80mΩ | ||
- COO (Country of Origin):
- CN
NKK Rocker Switches GW Series
The GW Series rocker switches are extremely thin allowing high density PCB mounting. GW are ideal for handheld equipment. Combined dust cover and close fitted housing, actuator and interior pivot providing contact protection.
Features and Benefits
Variety of colours
Detent mechanism design
Exceptionally thin size
STC contact mechanism
Molded in, epoxy sealed terminals lock out flux and other contaminants
2.54mm x 2.54mm terminal spacing conforming to standard PC board grid spacing, straight and angle mounting
Detent mechanism design
Exceptionally thin size
STC contact mechanism
Molded in, epoxy sealed terminals lock out flux and other contaminants
2.54mm x 2.54mm terminal spacing conforming to standard PC board grid spacing, straight and angle mounting
Standards
UL94V-0 actuator and case/base
NKK Rocker Switches
