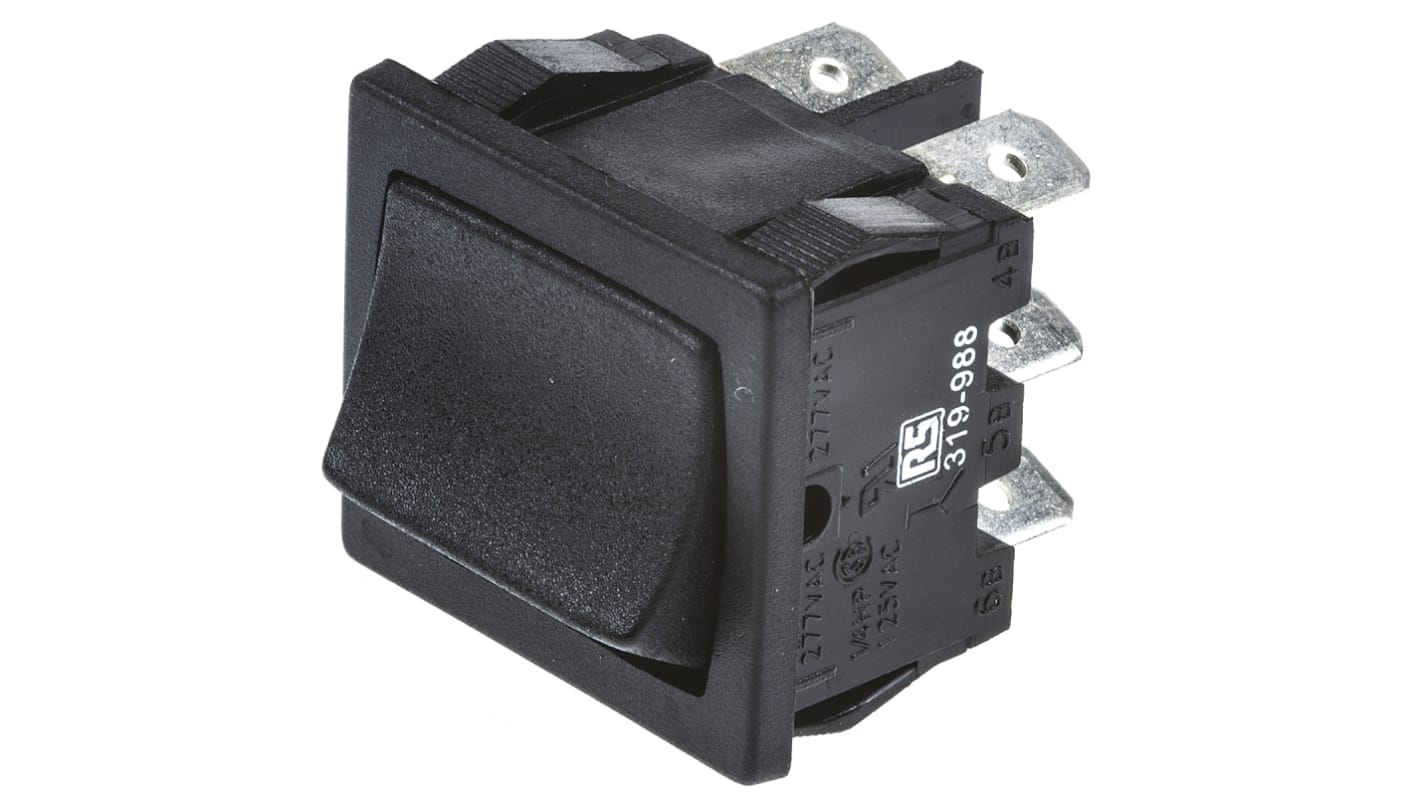

Arcolectric (Bulgin) Ltd DPDT, On-On Rocker Switch Panel Mount
- RS Stock No.:
- 319-988
- Mfr. Part No.:
- H8660VBAAB
- Brand:
- Arcolectric (Bulgin) Ltd
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£3.70
(exc. VAT)
£4.44
(inc. VAT)
| Units | Per unit |
| 1 - 24 | £3.70 |
| 25 - 49 | £3.25 |
| 50 - 99 | £3.16 |
| 100 - 249 | £2.88 |
| 250 + | £2.41 |
- RS Stock No.:
- 319-988
- Mfr. Part No.:
- H8660VBAAB
- Brand:
- Arcolectric (Bulgin) Ltd
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TN
Product Details
Curved Rocker Switches
The single throw types have 3mm contact separation
Electrical life: >104 operations at full load
Maximum operating temperature: +90°C
Connection is by 4.8x0.8mm blade terminals
Dimensions: H21, W15 (SP), W24 (DP), depth behind panel 12.5 (19.9 with terminals), max. panel thickness 3 mm
Electrical life: >104 operations at full load
Maximum operating temperature: +90°C
Connection is by 4.8x0.8mm blade terminals
Dimensions: H21, W15 (SP), W24 (DP), depth behind panel 12.5 (19.9 with terminals), max. panel thickness 3 mm
Note
Approvals
ENEC, UL, CSA
Approvals
ENEC, UL recognised component, CSA certified
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | DPDT |
| Switch Operation | On-On |
| Panel Cut Out Width | 22mm |
| Panel Cut Out Height | 19.4mm |
| Contact Current Rating | 6 A |
| Illuminated | No |
| Actuator Colour | Black |
| Mounting Type | Panel Mount |
| Terminal Type | Quick Connect |
| Panel Cut Out Size | 19.4 x 22mm |
| AC Voltage Rating | 250V |
| Actuator Shape | Rectangular |
- RS Stock No.:
- 319-988
- Mfr. Part No.:
- H8660VBAAB
- Brand:
- Arcolectric (Bulgin) Ltd
