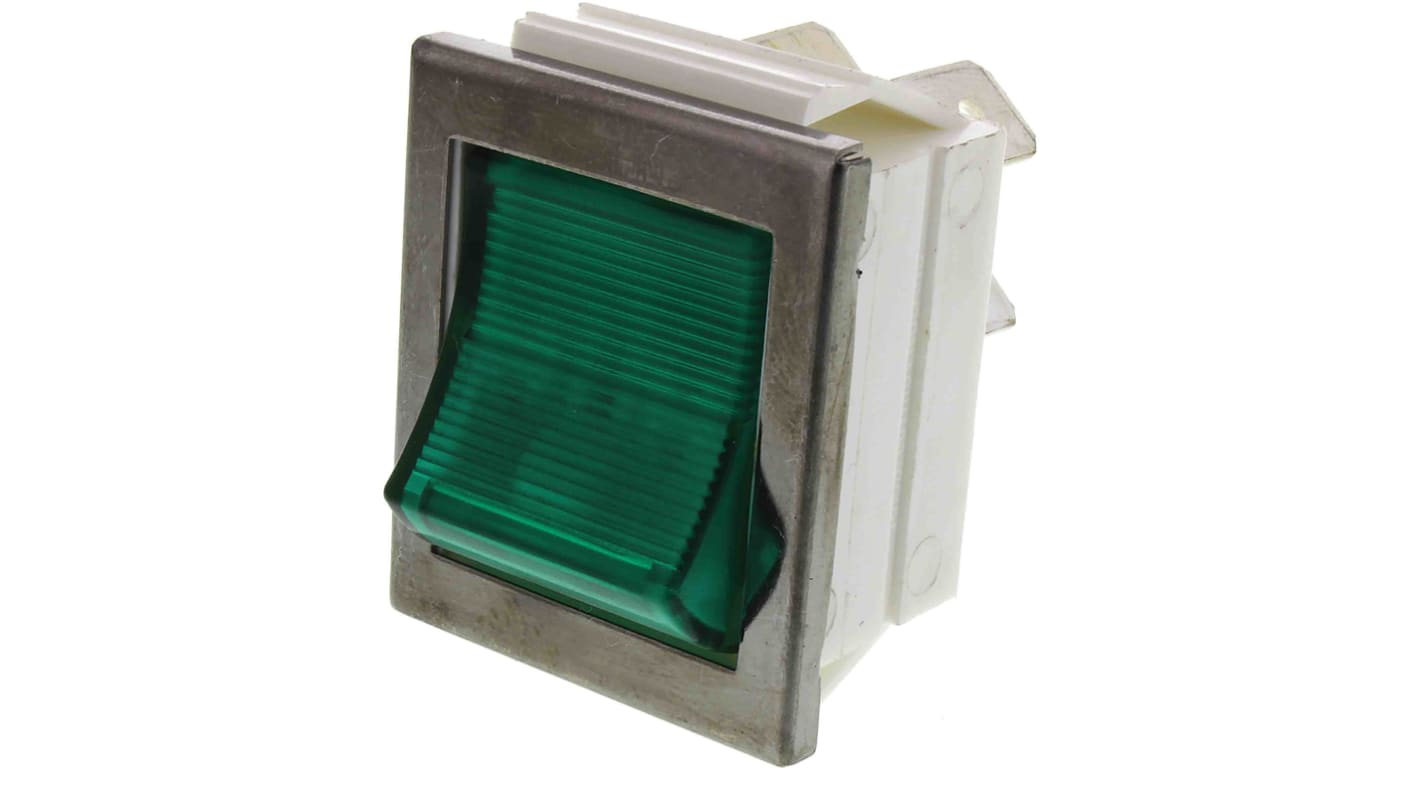

Arcolectric Illuminated DPST, Latching Rocker Switch Panel
- RS Stock No.:
- 199-188A
- Mfr. Part No.:
- C1353VENAB
- Brand:
- Arcolectric
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 199-188A
- Mfr. Part No.:
- C1353VENAB
- Brand:
- Arcolectric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Arcolectric | |
| Contact Configuration | DPST | |
| Switch Operation | Latching | |
| Panel Cut Out Width | 22.5mm | |
| Panel Cut Out Height | 28.2mm | |
| Contact Current Rating | 16 A@ 250 V ac | |
| Illuminated | Yes | |
| Actuator Colour | Green | |
| Mounting Type | Panel | |
| IP Rating | IP40 | |
| Terminal Type | Quick Connect | |
| Panel Cut Out Size | 28.2 x 22.5mm | |
| Operating Temperature Range | 0 → +85°C | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | 0°C | |
| Contact Resistance | 100mΩ | |
| Contact Material | Silver Alloy | |
| Case Material | Nylon 66 | |
Select all | ||
|---|---|---|
Brand Arcolectric | ||
Contact Configuration DPST | ||
Switch Operation Latching | ||
Panel Cut Out Width 22.5mm | ||
Panel Cut Out Height 28.2mm | ||
Contact Current Rating 16 A@ 250 V ac | ||
Illuminated Yes | ||
Actuator Colour Green | ||
Mounting Type Panel | ||
IP Rating IP40 | ||
Terminal Type Quick Connect | ||
Panel Cut Out Size 28.2 x 22.5mm | ||
Operating Temperature Range 0 → +85°C | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature 0°C | ||
Contact Resistance 100mΩ | ||
Contact Material Silver Alloy | ||
Case Material Nylon 66 | ||
- COO (Country of Origin):
- TN
Illuminated Rocker Switches
A range of standard latching illuminated rocker switches designed for panel mounting. With a choice of red or green illumination, these rocker switches are suitable for a wide range of applications. The snap-in rocker switches are available with a black or white body and can be single or double pole configured, dependant on individual application requirements. The general purpose switches are perfect for everyday use. Suitable for repairing existing equipment or for new designs.
Features and Benefits
• Red or Green Illumination
• 240 Vac operation
• SPST and DPST switch configurations
• Moulded in Nylon 6.6 plastic with a silky textured finish
• Snap-in plastic prongs on the switch sides for secure panel retention
• Connection via push on receptacles
• Easy to operate the smooth rocker actuator
Typical applications for rocker switches
Rocker switches are one of the most frequently used electrical switches in the market today. Due to their simple design and easy operation, rocker switches are found in almost every industry. Some of the most common areas are:
• Automation Control
• Computers and peripherals
• Medical equipment
• Audio video equipment
FAQ
• Are the rocker switches easy to connect?
Yes, as the rocker switches have male quick connect 0.250 in (6.35 mm) tab terminals at the rear connection is easy. Simply select the appropriate red, yellow or blue female receptacle crimp connectors according to wire size required.
• Are there any recommended tools for cutting the aperture in a panel?
Suitable hole cutters are available separately. Single Pole 614-334 or Double Pole 614-328
