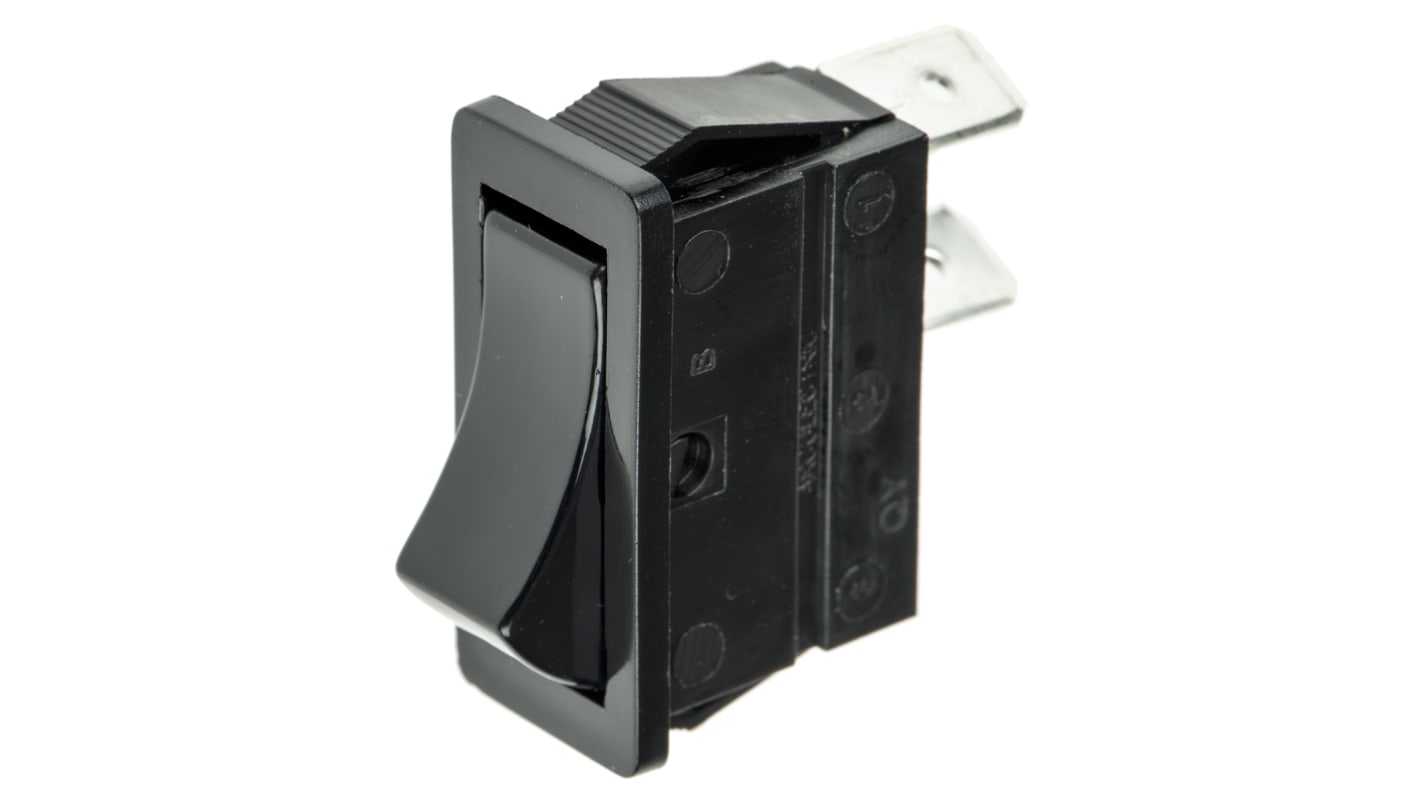

Arcolectric (Bulgin) Ltd SPST, On-Off Rocker Switch Panel Mount
- RS Stock No.:
- 199-116
- Mfr. Part No.:
- C1300VQAAE
- Brand:
- Arcolectric (Bulgin) Ltd
Bulk discount available
Subtotal (1 unit)*
£1.41
(exc. VAT)
£1.69
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 255 unit(s) ready to ship
- Plus 56 unit(s) ready to ship from another location
- Plus 150 unit(s) shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £1.41 |
5 - 9 | £1.33 |
10 - 24 | £1.29 |
25 + | £1.23 |
*price indicative
- RS Stock No.:
- 199-116
- Mfr. Part No.:
- C1300VQAAE
- Brand:
- Arcolectric (Bulgin) Ltd
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Arcolectric (Bulgin) Ltd | |
Contact Configuration | SPST | |
Switch Operation | On-Off | |
Panel Cut Out Width | 11.5mm | |
Panel Cut Out Height | 28.2mm | |
Contact Current Rating | 16 A | |
Illuminated | No | |
Actuator Colour | Black | |
Series | 1300 | |
Mounting Type | Panel Mount | |
Terminal Type | Quick Connect | |
Legend Text | On (symbol); Off (symbol) | |
Panel Cut Out Size | 28.2 x 11.5mm | |
Actuator Shape | Rectangular | |
AC Voltage Rating | 125 V, 250V | |
Legend Text Colour | White (Symbol) | |
Select all | ||
---|---|---|
Brand Arcolectric (Bulgin) Ltd | ||
Contact Configuration SPST | ||
Switch Operation On-Off | ||
Panel Cut Out Width 11.5mm | ||
Panel Cut Out Height 28.2mm | ||
Contact Current Rating 16 A | ||
Illuminated No | ||
Actuator Colour Black | ||
Series 1300 | ||
Mounting Type Panel Mount | ||
Terminal Type Quick Connect | ||
Legend Text On (symbol); Off (symbol) | ||
Panel Cut Out Size 28.2 x 11.5mm | ||
Actuator Shape Rectangular | ||
AC Voltage Rating 125 V, 250V | ||
Legend Text Colour White (Symbol) | ||
- COO (Country of Origin):
- TN
Non-Illuminated
Snap-mounting switches with silver contacts
Connection via .250in push-on receptacles
Contact rating 16 (4)A @ 250Vac
Contact resistance <100mΩ
Inrush rating 150A
Nylon 6.6; Polycarbonate actuator, Nylon 6.6 case
Dielectric Strength >1kV (Across Open Contacts); >3kV (Between Poles); >4kV (Between Live Parts and Accessible Metal)
Insulation Resistance >20mΩ
IP Rating IP40
Number Of Operations >104
Hole cutters; single-pole 543-721; double-pole 545-345
Connection via .250in push-on receptacles
Contact rating 16 (4)A @ 250Vac
Contact resistance <100mΩ
Inrush rating 150A
Nylon 6.6; Polycarbonate actuator, Nylon 6.6 case
Dielectric Strength >1kV (Across Open Contacts); >3kV (Between Poles); >4kV (Between Live Parts and Accessible Metal)
Insulation Resistance >20mΩ
IP Rating IP40
Number Of Operations >104
Hole cutters; single-pole 543-721; double-pole 545-345
Approvals
ENEC
Bulgin 1300 Series Rocker Switch, 16A Current Rating, SPST Contact Configuration - C1300VQAAE
This rocker switch is designed for panel mounting with a single pole, single throw (SPST) configuration. Its dimensions feature a panel cutout size of 28.2 x 11.5 mm, making it a compact yet efficient option for various applications. The switch features a black actuator and facilitates an easy on-off operation with a robust rating of 16A, suitable for both 125V and 250V AC environments.
Features & Benefits
• Simple on-off design ensures user-friendly operation
• Robust 16A rating supports high current loads
• Black actuator offers a sleek and professional appearance
• Non-illuminated design reduces complexity and enhances durability
• Robust 16A rating supports high current loads
• Black actuator offers a sleek and professional appearance
• Non-illuminated design reduces complexity and enhances durability
Applications
• Ideal for panel mount installations in electrical cabinets
• Suited for appliances requiring reliable on-off switching
• Useful in automation systems where compact switches are essential
• Utilised in consumer electronics for effortless user control
• Effective for mechanical equipment needing durable electrical connections
• Suited for appliances requiring reliable on-off switching
• Useful in automation systems where compact switches are essential
• Utilised in consumer electronics for effortless user control
• Effective for mechanical equipment needing durable electrical connections
How does the SPST configuration enhance circuit performance?
SPST configuration allows for straightforward operation, ensuring that the switch effectively connects or disconnects the current, which aids in reducing circuit complexity and potential points of failure.
What are the benefits of using quick connect terminals?
Quick connect terminals facilitate a faster, safer connection during installation and allow for easy disconnection during maintenance, thereby reducing downtime and labour costs.
Can this switch handle both 125V and 250V applications?
Yes, this switch is designed to accommodate both 125V and 250V AC applications, providing versatility for various electrical systems while maintaining safe operation under specified conditions.
Approvals
ENEC
