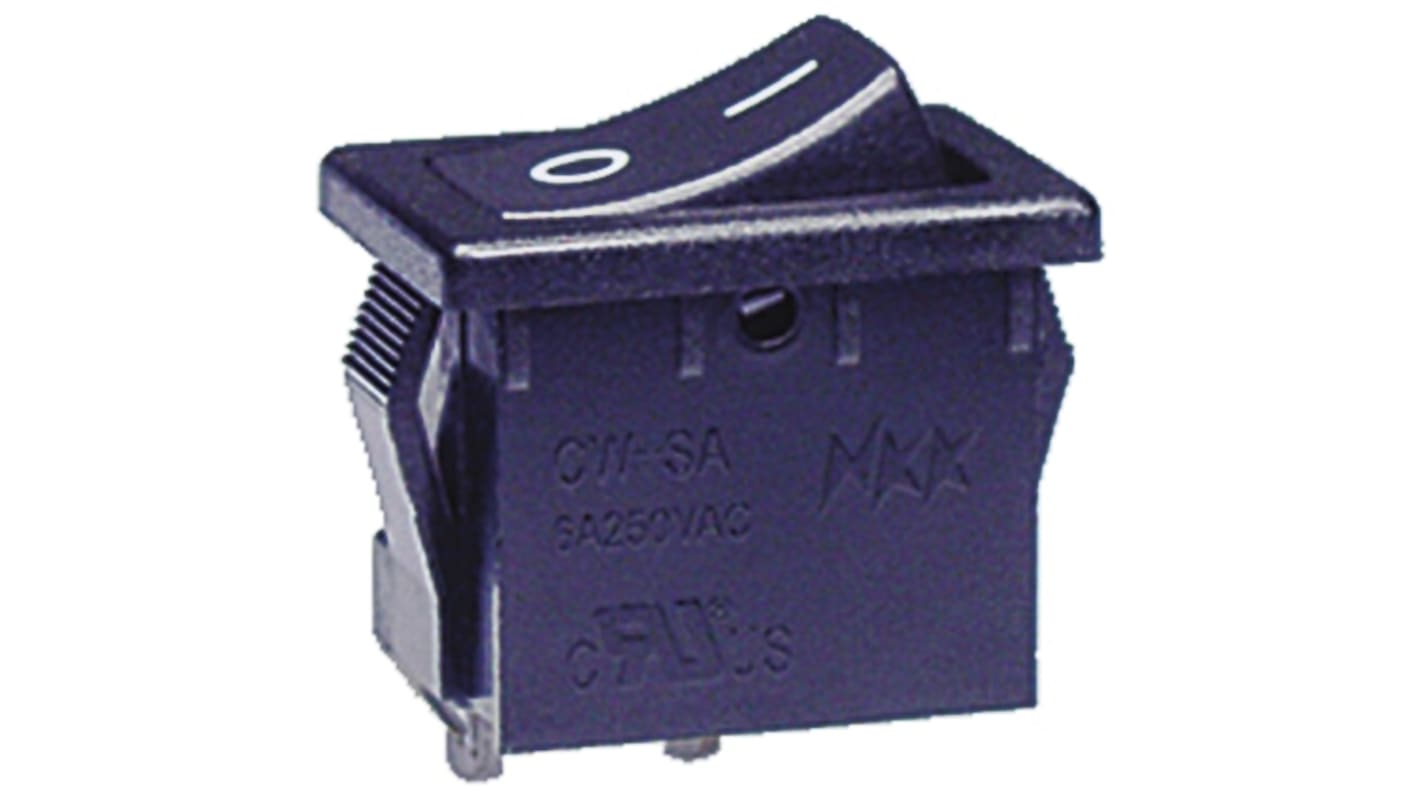

Single Pole Single Throw (SPST), Latching Rocker Switch Panel Mount

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details
//media.rs-online.com/t_line/LJ197066-01.gif
Specifications
Attribute Value
Contact Configuration Single Pole Single Throw (SPST)
Switch Operation Latching
Panel Cut Out Width 12.9mm
Panel Cut Out Height 19.2mm
Contact Current Rating 6 A @ 250 V ac
Mounting Type Panel Mount
Terminal Type Solder
Legend Text On (symbol); Off (symbol)
Contact Resistance 20mΩ
Mechanical Life 30000Operations
Minimum Operating Temperature -10°C
Panel Cut Out Size 19.2 x 12.9mm
Contact Material Silver Plated Copper
Operating Temperature Range -10 → +70°C
Legend Text Colour White
Maximum Operating Temperature +70°C
Case Material Polyamide
59 In stock for delivery within 5 working days
Price Each
£ 2.65
(exc. VAT)
£ 3.18
(inc. VAT)
Units
Per unit
1 - 49
£2.65
50 - 99
£2.25
100 - 249
£1.11
250 - 499
£0.97
500 +
£0.89
