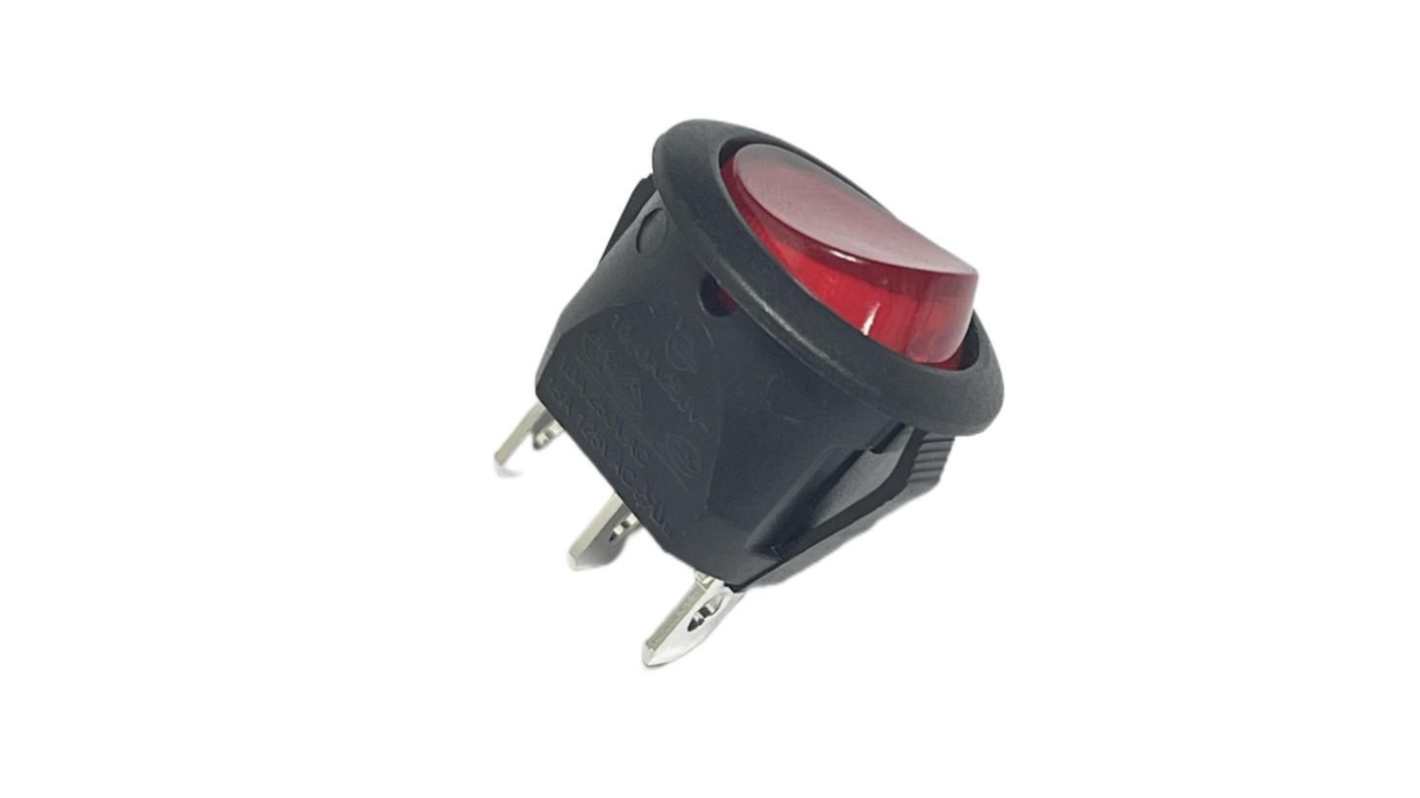

RS PRO Illuminated SPST, On-Off Rocker Switch Panel Mount
- RS Stock No.:
- 180-379
- Brand:
- RS PRO
Subtotal (1 unit)*
£7.90
(exc. VAT)
£9.48
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 94 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £7.90 |
*price indicative
- RS Stock No.:
- 180-379
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Contact Configuration | SPST | |
Switch Operation | On-Off | |
Panel Cut Out Width | 2.2mm | |
Panel Cut Out Height | 11mm | |
Contact Current Rating | 15A | |
Illuminated | Yes | |
Actuator Colour | Red | |
Mounting Type | Panel Mount | |
IP Rating | IP20 | |
Terminal Type | Solder | |
Legend Text | I, O | |
Lens Shape/Symbol | Round | |
Actuator Shape | Rectangle | |
Panel Cut Out Size | 20.2mm | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | 85°C | |
Mechanical Life | 30000Cycles | |
Operating Temperature Range | -20 → 85°C | |
Case Material | Nylon | |
Contact Material | Silver Alloy | |
Contact Resistance | 20mΩ | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Contact Configuration SPST | ||
Switch Operation On-Off | ||
Panel Cut Out Width 2.2mm | ||
Panel Cut Out Height 11mm | ||
Contact Current Rating 15A | ||
Illuminated Yes | ||
Actuator Colour Red | ||
Mounting Type Panel Mount | ||
IP Rating IP20 | ||
Terminal Type Solder | ||
Legend Text I, O | ||
Lens Shape/Symbol Round | ||
Actuator Shape Rectangle | ||
Panel Cut Out Size 20.2mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 85°C | ||
Mechanical Life 30000Cycles | ||
Operating Temperature Range -20 → 85°C | ||
Case Material Nylon | ||
Contact Material Silver Alloy | ||
Contact Resistance 20mΩ | ||
- COO (Country of Origin):
- CN
RS PRO Rocker Switch, SPST Configuration (RC)
The RS PRO Rocker Switch is designed for reliable on-off control in various electrical applications. With a single pole, single throw (SPST) configuration, it is ideal for simple circuit operations. Its robust construction ensures durability and long-term performance.
Features and Benefits
Offer a variety of switching functions, including SPST and SPDT, providing flexibility for different applications
Contact rating up to 10A 250VAC and 15A 125VAC, ensuring compatibility with high-power circuits
IP20 rating for protection against solid objects, enhancing safety in operation
Illuminated series available, providing clear visual indication of switch status
Mechanical life of 30,000 cycles, ensuring long-lasting reliability
Panel mount design for easy installation in control panels
Contact material made of silver alloy, offering excellent conductivity and durability
Operating temperature range from -20°C to 85°C, suitable for various environmental conditions
Contact rating up to 10A 250VAC and 15A 125VAC, ensuring compatibility with high-power circuits
IP20 rating for protection against solid objects, enhancing safety in operation
Illuminated series available, providing clear visual indication of switch status
Mechanical life of 30,000 cycles, ensuring long-lasting reliability
Panel mount design for easy installation in control panels
Contact material made of silver alloy, offering excellent conductivity and durability
Operating temperature range from -20°C to 85°C, suitable for various environmental conditions
Applications
Commonly used in household appliances, industrial machinery, and automotive applications. Ideal for control panels and electrical equipment requiring reliable on-off switching.
Additional Information
Complies with standard panel cut-out size of 20.2 mm for easy integration. Features a red actuator for clear visibility and user-friendly operation.
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
