- RS Stock No.:
- 304-121
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Rivet Type | Snap | |
| Rivet Diameter | 4mm | |
| Rivet Length | 15.9mm | |
| Fixing Hole Diameter | 4.1 → 4.2mm | |
| Rivet Body Material | POM | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Rivet Type Snap | ||
Rivet Diameter 4mm | ||
Rivet Length 15.9mm | ||
Fixing Hole Diameter 4.1 → 4.2mm | ||
Rivet Body Material POM | ||
- COO (Country of Origin):
- CN

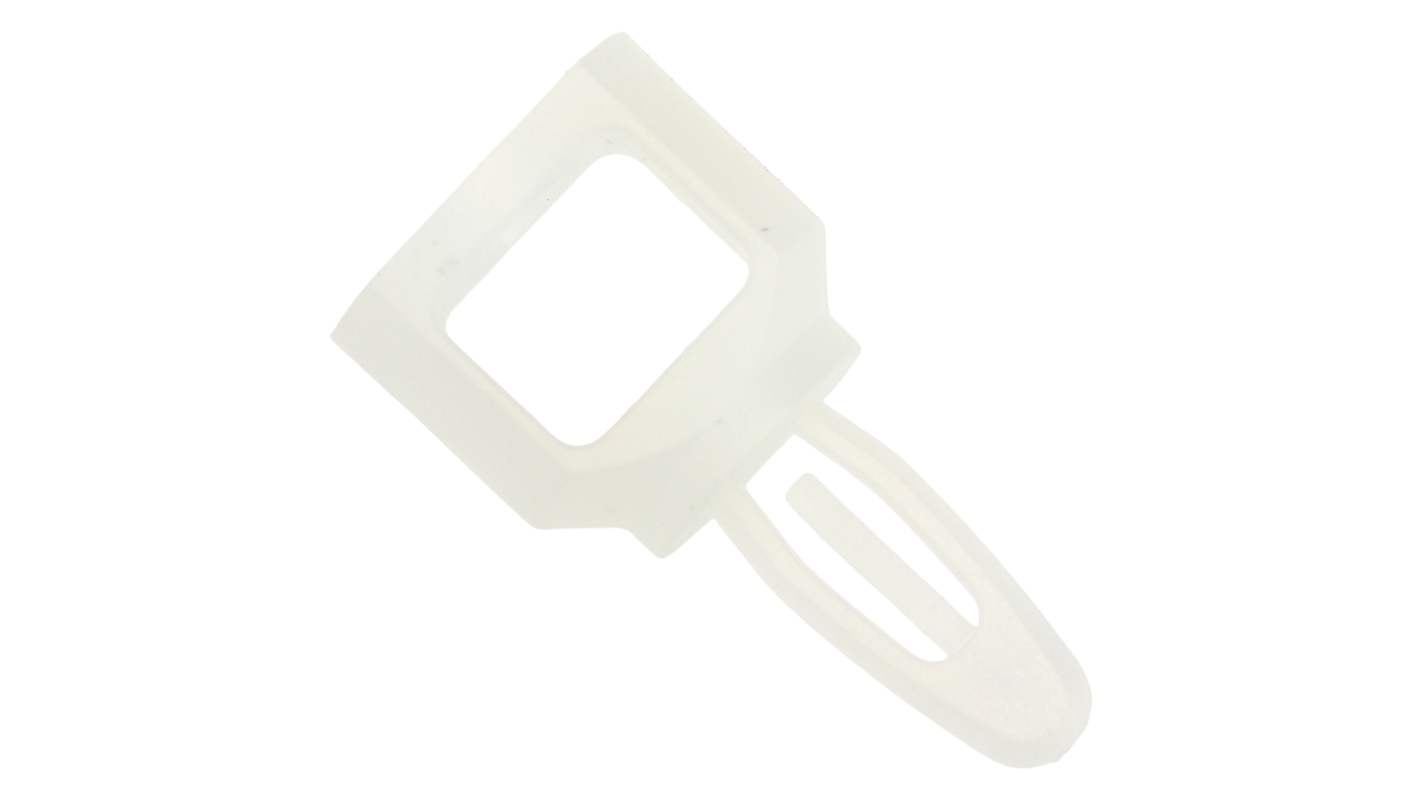

RS PRO Rivet Locking Support Post, Snap-In Spacer, Nylon
The RS PRO Rivet Locking Support Post is designed to provide reliable and secure support for printed circuit boards (PCBs) in various electronic applications. With its snap-in spacer design, it ensures easy installation and a firm hold, making it ideal for maintaining PCB stability without the need for additional tools.
Features and Benefits
Panel mounted using plastic Snap Rivets: Allows for quick and easy installation without the need for special tools
Releasable PCB locking mechanism: Securely locks the board in place, ensuring stability and reducing movement
Push-fitted support and rivets: Simplifies the installation process, saving time and effort
Releasable PCB locking mechanism: Securely locks the board in place, ensuring stability and reducing movement
Push-fitted support and rivets: Simplifies the installation process, saving time and effort
Applications
Electronics manufacturing
PCB assembly
Prototyping and testing environments
PCB assembly
Prototyping and testing environments
Additional Information
Material: Nylon
Type: Snap-In Spacer
Width Across Flats: 5.1 mm
Body Diameter: 10.2 mm
Bore Diameter: 6.4 mm
Body Height: 15.9 mm
Chassis Hole Diameter: 4 mm
Chassis Thickness: 1.6 mm
PCB Hole Diameter: 4 mm
PCB Thickness: 1.6 mm
Type: Snap-In Spacer
Width Across Flats: 5.1 mm
Body Diameter: 10.2 mm
Bore Diameter: 6.4 mm
Body Height: 15.9 mm
Chassis Hole Diameter: 4 mm
Chassis Thickness: 1.6 mm
PCB Hole Diameter: 4 mm
PCB Thickness: 1.6 mm
