- RS Stock No.:
- 178-8618
- Brand:
- RS PRO
4500 In stock - FREE next working day delivery available
200 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Bag of 100)
£0.096
(exc. VAT)
£0.115
(inc. VAT)
Units | Per unit | Per Bag* |
100 - 900 | £0.096 | £9.60 |
1000 - 1900 | £0.087 | £8.70 |
2000 - 4900 | £0.08 | £8.00 |
5000 - 9900 | £0.074 | £7.40 |
10000 + | £0.067 | £6.70 |
*price indicative |
- RS Stock No.:
- 178-8618
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

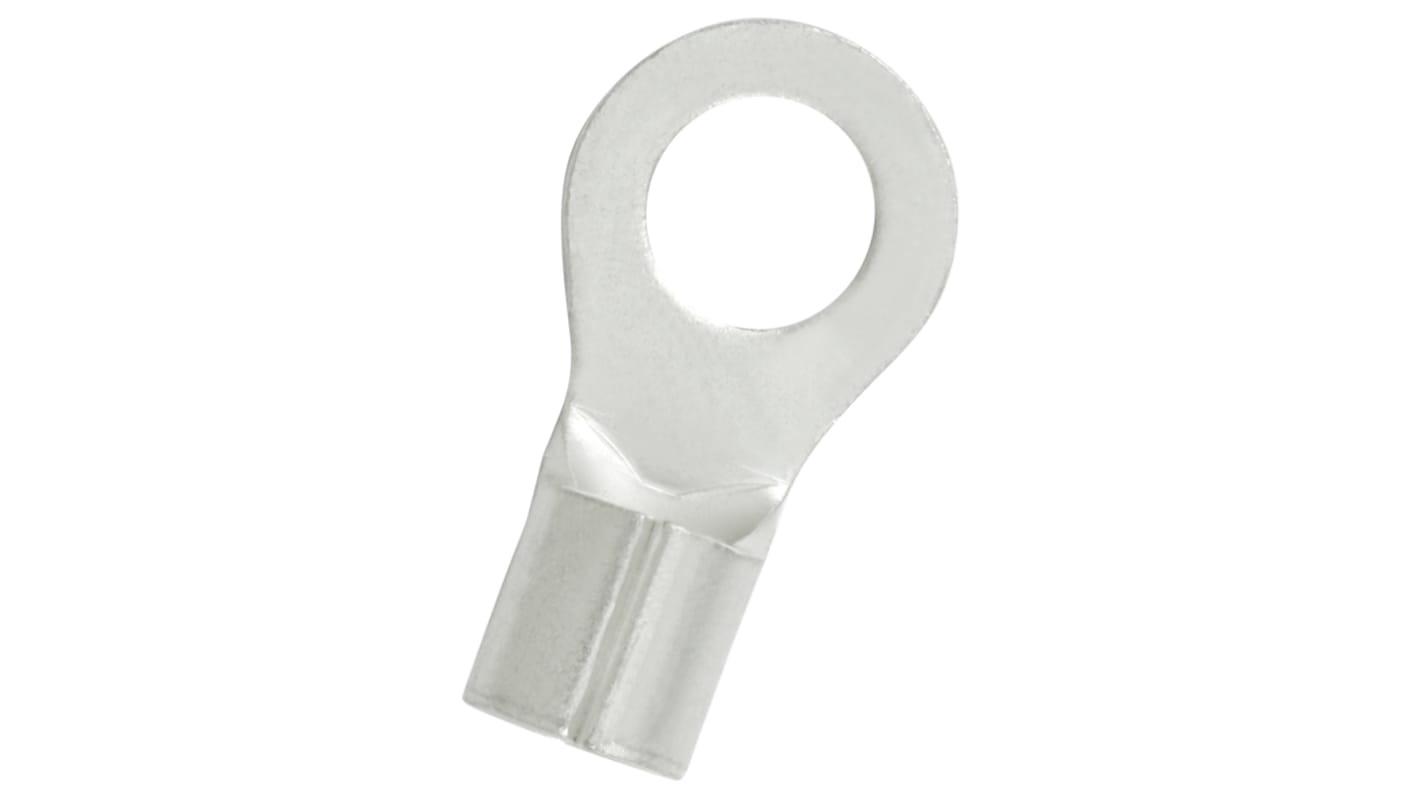

The RS PRO Non-Insulted ring has a outer ring diameter of 9.5mm and inner ring diameter of 5.3mm which comes with maximum 2.5mm² wire size connection. It is made up of high quality copper for contact material.
Stud Size 5.3mm
Contact Plating Tin
Contact Material Copper
Thickness 1mm
Contact Plating Tin
Contact Material Copper
Thickness 1mm
Specifications
Attribute | Value |
---|---|
Insulation | Uninsulated |
Inner Ring Diameter | 5.3mm |
Outer Ring Diameter | 9.5mm |
Minimum Wire Size mm² | 4mm² |
Maximum Wire Size mm² | 6mm² |
Maximum Wire Size AWG | 10AWG |
Minimum Wire Size AWG | 12AWG |
Stud Size | 5.3mm |
Contact Plating | Tin |
Contact Material | Copper |
Thickness | 1mm |
Overall Length | 19mm |
