Ruland MSPX-6-6-F Rigid Shaft Coupling, 18 mm OD, 1215 Carbon Steel, 34 Nm
- RS Stock No.:
- 604-183
- Mfr. Part No.:
- MSPX-6-6-F
- Brand:
- Ruland
Subtotal (1 unit)*
£56.46
(exc. VAT)
£67.75
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £56.46 |
*price indicative
- RS Stock No.:
- 604-183
- Mfr. Part No.:
- MSPX-6-6-F
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ruland | |
| Product Type | Rigid Shaft Coupling | |
| One/Two Piece | Two Piece | |
| Outside Diameter | 18 mm | |
| Length | 30mm | |
| Bore Size A | 6mm | |
| Maximum Speed | 4000rpm | |
| Bore Size B | 6mm | |
| Material | 1215 Carbon Steel | |
| Style | Clamp | |
| Torque Rating | 34Nm | |
| Minimum Operating Temperature | -40°F | |
| Maximum Operating Temperature | 350°F | |
| Bore Type | Precision Honed | |
| Standards/Approvals | DIN 91 1.9, RoHs and Reach | |
| Select all | ||
|---|---|---|
Brand Ruland | ||
Product Type Rigid Shaft Coupling | ||
One/Two Piece Two Piece | ||
Outside Diameter 18 mm | ||
Length 30mm | ||
Bore Size A 6mm | ||
Maximum Speed 4000rpm | ||
Bore Size B 6mm | ||
Material 1215 Carbon Steel | ||
Style Clamp | ||
Torque Rating 34Nm | ||
Minimum Operating Temperature -40°F | ||
Maximum Operating Temperature 350°F | ||
Bore Type Precision Honed | ||
Standards/Approvals DIN 91 1.9, RoHs and Reach | ||
- COO (Country of Origin):
- US

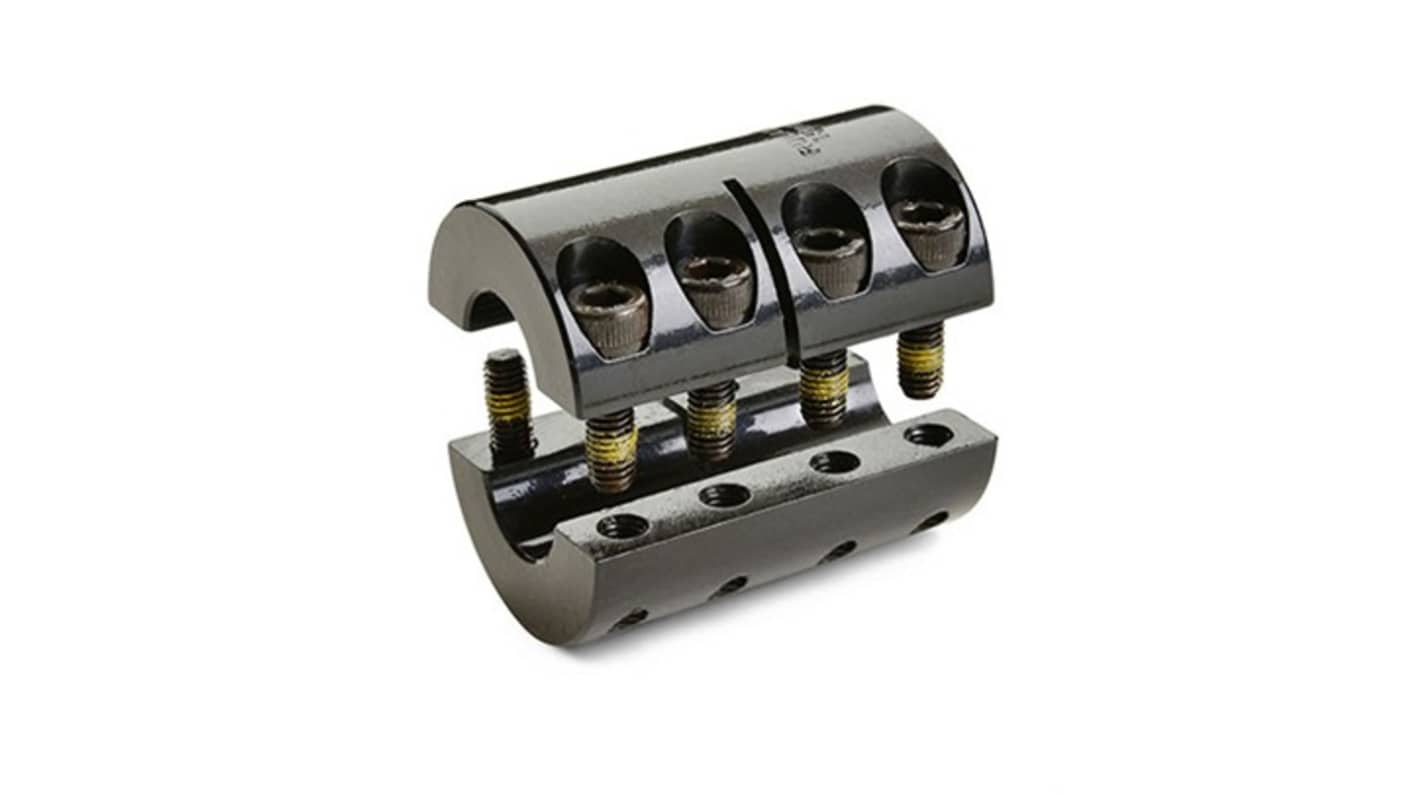

The Ruland Two-piece rigid coupling has precision honed bores to ensure they are collinear and do not introduce misalignment or vibration into the system making it suitable for high precision servo applications as well as shaft to shaft connections. It has opposing hardware for a balanced design. The anti-vibration coating allows for even seating of the screw, repeated screw installations, prevents galling, and maintains high holding power. It eliminates the need to treat screws upon receipt greatly reducing installation time.
Nypatch Anti Vibration Hardware
Zero backlash
RoHS compliant
REACH compliant
