Amphenol Communications Solutions Spectra-Strip Series Ribbon Cable, 26-Way, 1.27mm Pitch
- RS Stock No.:
- 841-7106
- Mfr. Part No.:
- 135-2801-026
- Brand:
- Amphenol
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 30 Metre(s)
£132.09
(exc. VAT)
£158.51
(inc. VAT)
- RS Stock No.:
- 841-7106
- Mfr. Part No.:
- 135-2801-026
- Brand:
- Amphenol
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol | |
| Pitch | 1.27mm | |
| Number of Ways | 26 | |
| Screened/Unscreened | Unscreened | |
| American Wire Gauge | 28 | |
| Series | Spectra-Strip | |
| Width | 33.15 mm | |
| Voltage Rating | 300 V | |
| Sheath Colour | Black/Grey | |
| Number of Strands | 7 | |
| Conductor Strand Type | Stranded | |
| Maximum Operating Temperature | +105°C | |
| Characteristic Impedance | 105 Ω | |
| Operating Temperature Range | Maximum of +105 (Consult Factory) °C, Maximum of +80 (Stranded) °C | |
| Core Strands | 7/36 | |
| Capacitance | 13 pF/ft, 42.7pF/m | |
| Size of Strands | 36 AWG | |
Select all | ||
|---|---|---|
Brand Amphenol | ||
Pitch 1.27mm | ||
Number of Ways 26 | ||
Screened/Unscreened Unscreened | ||
American Wire Gauge 28 | ||
Series Spectra-Strip | ||
Width 33.15 mm | ||
Voltage Rating 300 V | ||
Sheath Colour Black/Grey | ||
Number of Strands 7 | ||
Conductor Strand Type Stranded | ||
Maximum Operating Temperature +105°C | ||
Characteristic Impedance 105 Ω | ||
Operating Temperature Range Maximum of +105 (Consult Factory) °C, Maximum of +80 (Stranded) °C | ||
Core Strands 7/36 | ||
Capacitance 13 pF/ft, 42.7pF/m | ||
Size of Strands 36 AWG | ||
- COO (Country of Origin):
- US

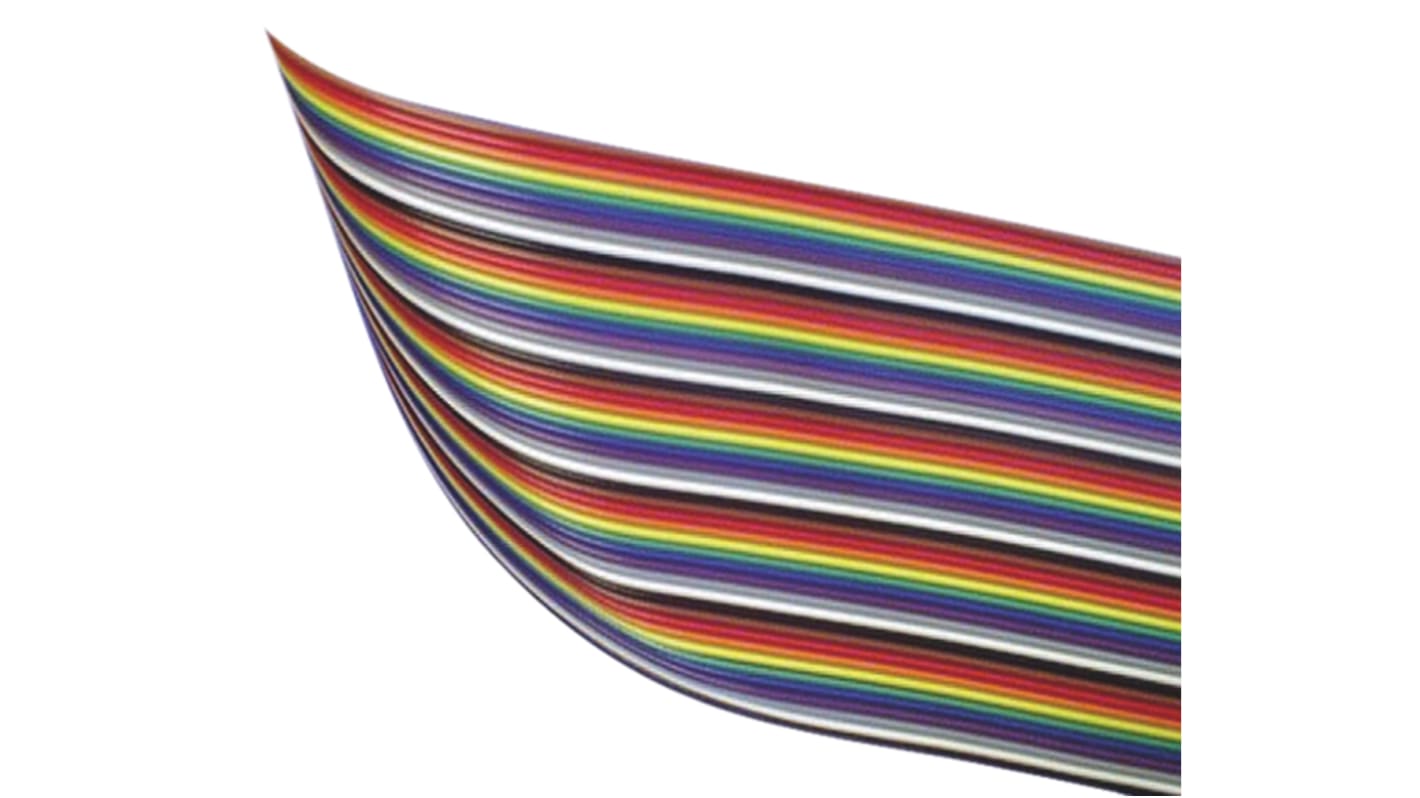

3C Colour Coded Planar Cable
3C colour coded planar cable is ideal in applications with digital or analogue signal transmission.
Features and Benefits
Quick, low cost mass termination
Exact and precise spacing for controlled electrical characteristics
Easily identified colour coded
Double contour allowing easy termination from one side to another
Circuit routing easy conductor separation
Exact and precise spacing for controlled electrical characteristics
Easily identified colour coded
Double contour allowing easy termination from one side to another
Circuit routing easy conductor separation
Standards
UL, CSA
Ribbon Cable Information
Ribbon cables provide a simple, quick and cost-effective solution to mass termination. They also have space and weight saving advantages over other wiring methods and are ideal for use on computers, peripherals, and interface units, audio and digital equipment.
