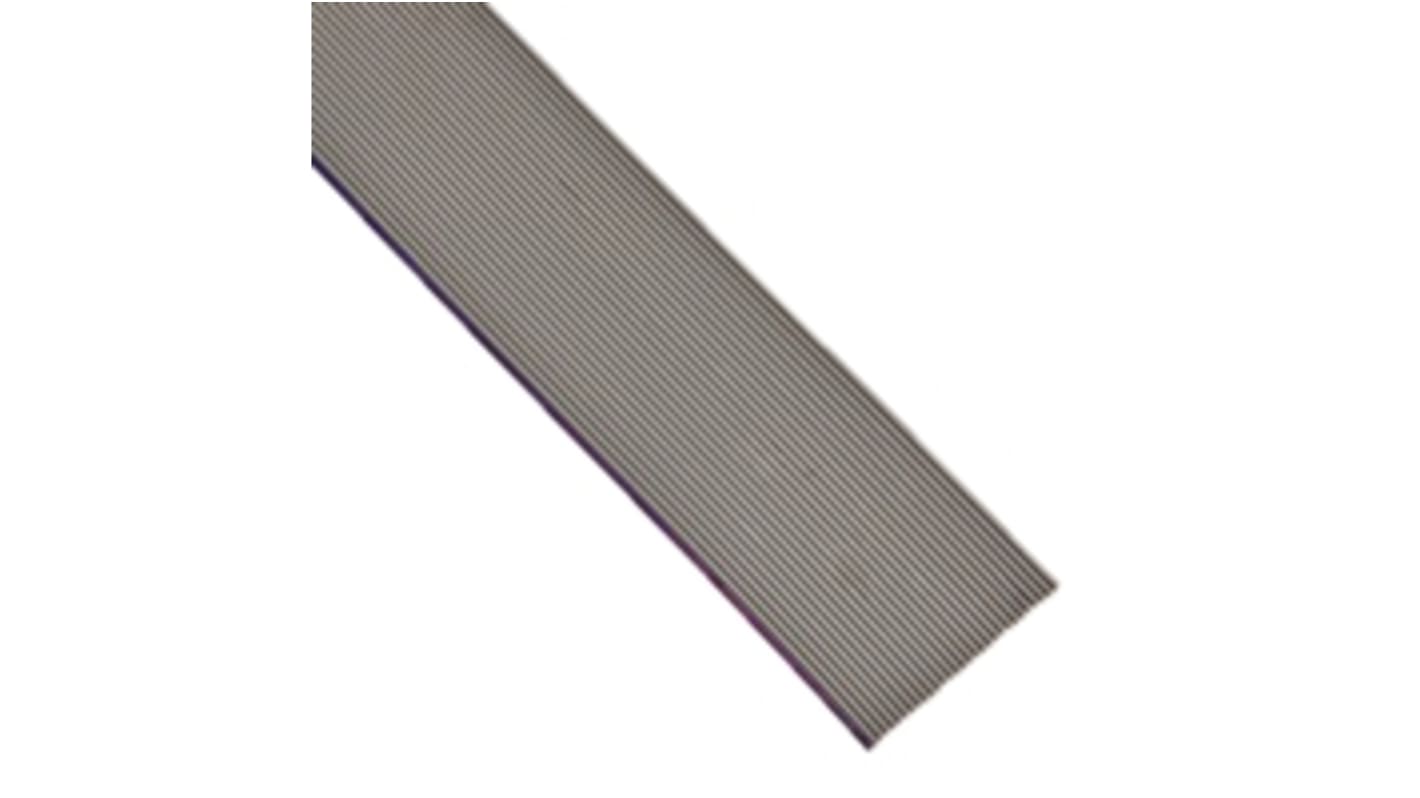

3M HF625 Series Ribbon Cable, 10-Way, 1mm Pitch
- RS Stock No.:
- 828-9797
- Mfr. Part No.:
- HF625/10 300FT
- Brand:
- 3M
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 30 Metre(s)
£129.33
(exc. VAT)
£155.20
(inc. VAT)
- RS Stock No.:
- 828-9797
- Mfr. Part No.:
- HF625/10 300FT
- Brand:
- 3M
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Pitch | 1mm | |
| Number of Ways | 10 | |
| Screened/Unscreened | Unscreened | |
| American Wire Gauge | 28 | |
| Series | HF625 | |
| Width | 10 mm | |
| Number of Strands | 7 | |
| Voltage Rating | 300 V | |
| Sheath Colour | Grey | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -40°C | |
| Conductor Strand Type | Stranded | |
| Characteristic Impedance | 144 (Balanced) Ω, 85 (Unbalanced) Ω | |
| Core Strands | 7/36 | |
| Priced to Clear | Yes | |
| Size of Strands | 36 | |
| Operating Temperature Range | -40 → +105 °C | |
Select all | ||
|---|---|---|
Brand 3M | ||
Pitch 1mm | ||
Number of Ways 10 | ||
Screened/Unscreened Unscreened | ||
American Wire Gauge 28 | ||
Series HF625 | ||
Width 10 mm | ||
Number of Strands 7 | ||
Voltage Rating 300 V | ||
Sheath Colour Grey | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -40°C | ||
Conductor Strand Type Stranded | ||
Characteristic Impedance 144 (Balanced) Ω, 85 (Unbalanced) Ω | ||
Core Strands 7/36 | ||
Priced to Clear Yes | ||
Size of Strands 36 | ||
Operating Temperature Range -40 → +105 °C | ||
- COO (Country of Origin):
- US
3M HF625 Series LSZH Round Conductor Cable
The LSZH Round conductor cable is insulated with low smoke and low toxicity combustion gases, this reduces the risk to firefighters, also soot and corrosion damage to equipment.
Features and Benefits
• LSZH (Low smoke Zero Halogen) Insulation
• Insulation is low smoke and low toxicity of combustion gases
• Zippable
• 28 AWG stranded conductors
• Aids firefighters by reducing risks
• Soot and corrosion damage reduced to equipment within range
• Insulation is low smoke and low toxicity of combustion gases
• Zippable
• 28 AWG stranded conductors
• Aids firefighters by reducing risks
• Soot and corrosion damage reduced to equipment within range
Applications
Ribbon cabling is frequently used in computing and in communication applications. They are often used internally in electronic appliances, and are often used in hard drive wiring. Although they are limited to straight-run installations, they have advantages in that they can provide space efficient solutions to high data transmission. Ribbon cabling is often used in;
• Test and Measure
• Computing
• Robotics
• Test and Measure
• Computing
• Robotics
Why Choose 3M?
3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.
Standards
IEC 61034-2:2005, NF X 70-100-2:2006, RoHS,UL E42769, Style No.: 21682, UL: Horizontal
Ribbon Cable Information
Ribbon cables provide a simple, quick and cost-effective solution to mass termination. They also have space and weight saving advantages over other wiring methods and are ideal for use on computers, peripherals, and interface units, audio and digital equipment.
