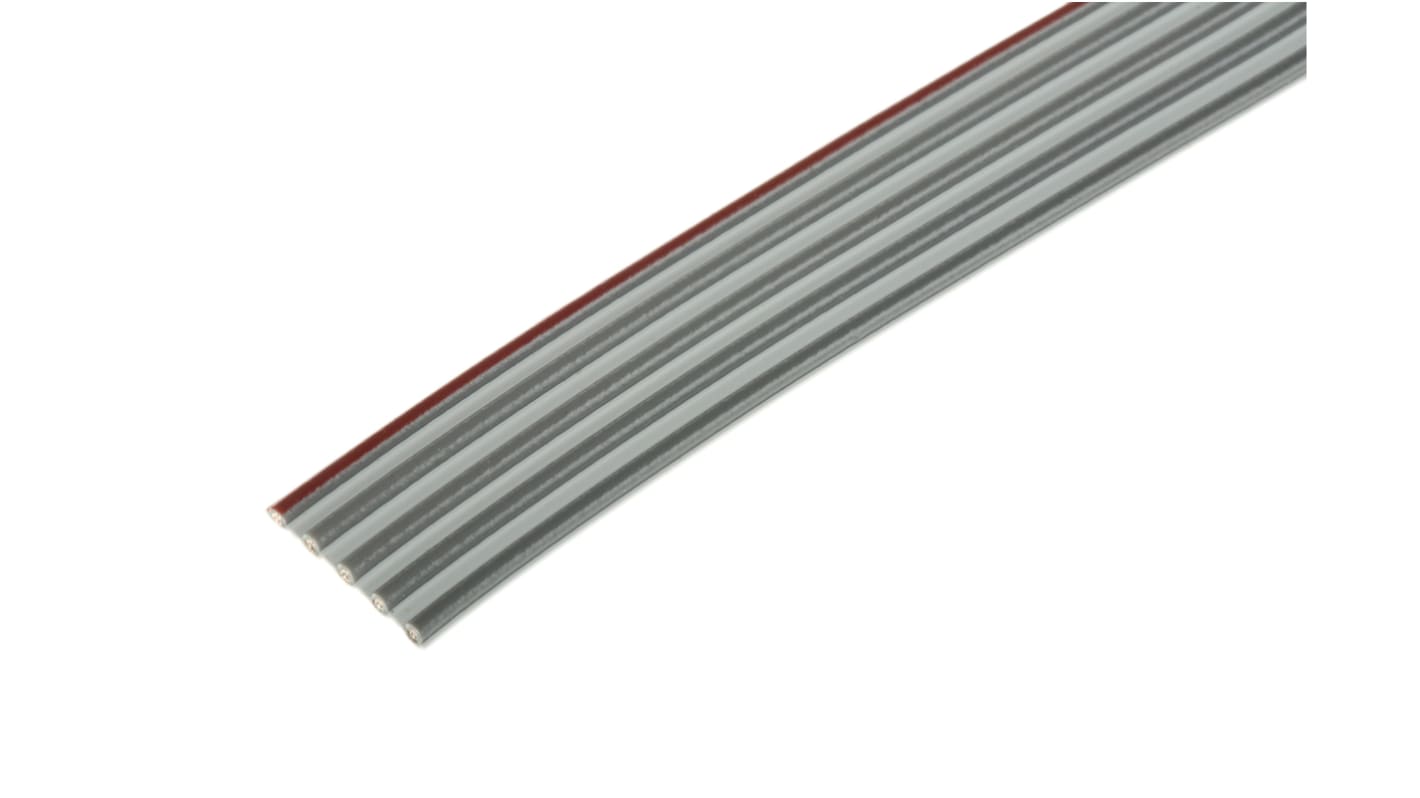

3M 8124 Series Flat Ribbon Cable, 5-Way, 2.54mm Pitch, 181m Length

View all Ribbon Cable
Unavailable
RS will no longer stock this product.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
3M 8124 Series Flat Ribbon Cable, 5-Way, 2.54mm Pitch, 181m Length
RS Stock No.
815-8258

1 Reel of 30 Metre(s)

£115.14

(exc. VAT)

£138.17

(inc. VAT)

RS Stock No.:
815-8258
Mfr. Part No.:
8124/5 100
Brand:
3M
Find similar products by selecting one or more attributes.
Select all

Brand

3M

Ribbon Cable Type

Flat

Pitch

2.54mm

Terminated/Unterminated

Unterminated

Number of Ways

5

Screened/Unscreened

Unscreened

American Wire Gauge

22 AWG

Series

8124

Length

181m

Width

11.89 mm

Hi-Flex

Yes

Minimum Operating Temperature

-20°C

Sheath Colour

Grey

Number of Strands

7

Voltage Rating

300 V

Maximum Operating Temperature

+105°C

Conductor Strand Type

Stranded

Core Strands

7/30

Characteristic Impedance

119 Ω

Standards Met

RoHS Compliant

Size of Strands

30 AWG

Capacitance

36.1pF/m

Operating Temperature Range

-20 → +105 °C

COO (Country of Origin):
US

3M 2.54mm PVC Ribbon Cable


From 3M, this PVC ribbon cable is designed for power applications that require higher current carrying capabilities. It is a flexible and robust solution to cabling in electronic devices and appliances.

Features and Benefits


• Flexible and extended product life due to 22AWG tinned stranded copper wire
• Singular conductor insulation
• Conductors laminated to a PVC backing

Applications


Ribbon cabling is frequently used in computing and in communication applications. They are often used internally in electronic appliances, and are often used in hard drive wiring. Although they are limited to straight-run installations, they have advantages in that they can provide space efficient solutions to high data transmission. Ribbon cabling is often used in;
• Test and Measure
• Computing
• Robotics

Why Choose 3M?


3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

Standards

UL


Ribbon Cable Information


Ribbon cables provide a simple, quick and cost-effective solution to mass termination. They also have space and weight saving advantages over other wiring methods and are ideal for use on computers, peripherals, and interface units, audio and digital equipment.
