3M 3601 Series Ribbon Cable, 10-Way, 1.27mm Pitch
- RS Stock No.:
- 815-8040
- Mfr. Part No.:
- 3601/10
- Brand:
- 3M

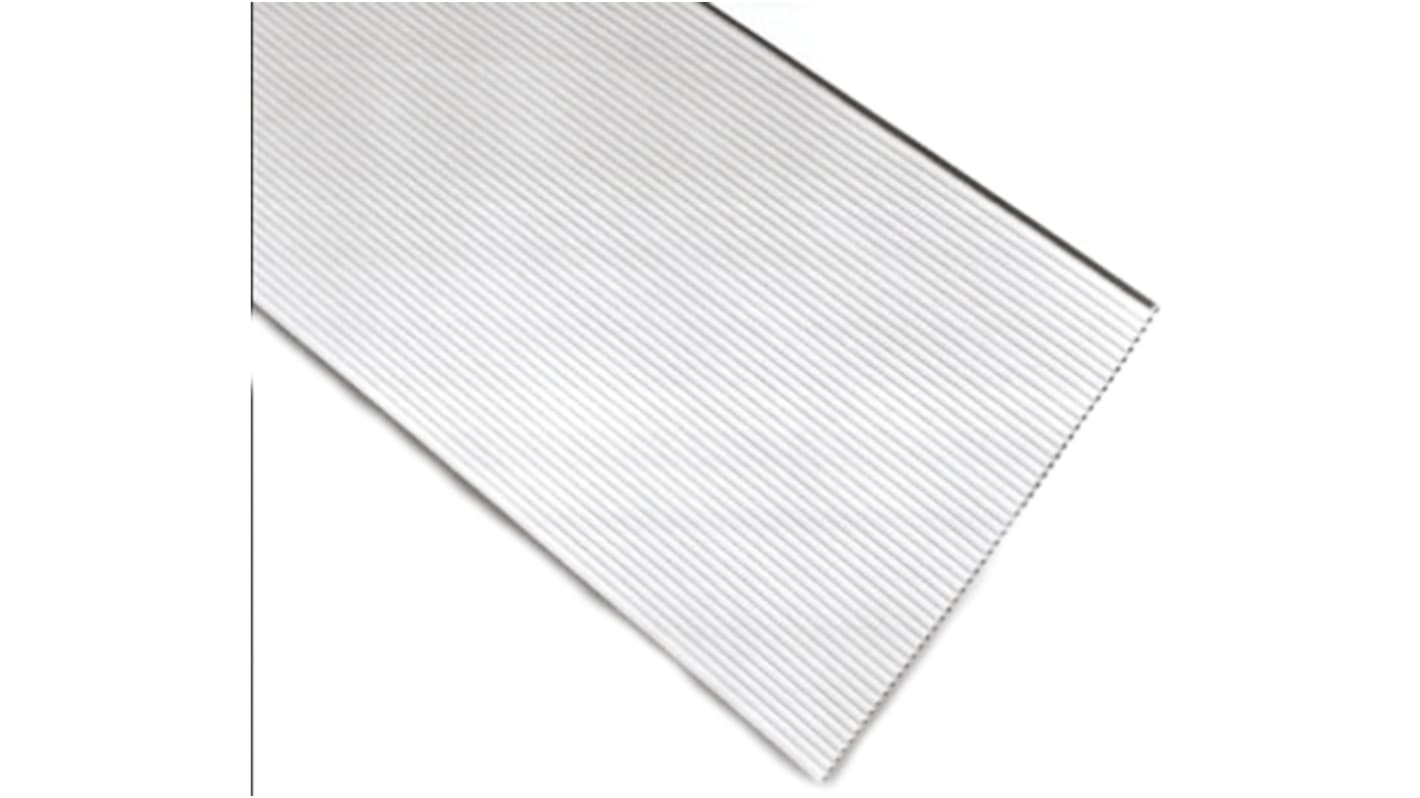

Image representative of range
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 815-8040
- Mfr. Part No.:
- 3601/10
- Brand:
- 3M
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | 3M | |
Pitch | 1.27mm | |
Number of Ways | 10 | |
Screened/Unscreened | Unscreened | |
American Wire Gauge | 28 | |
Series | 3601 | |
Width | 12.7 mm | |
Conductor Strand Type | Stranded | |
Minimum Operating Temperature | -55°C | |
Voltage Rating | 300 V | |
Maximum Operating Temperature | +200°C | |
Sheath Colour | Blue | |
Number of Strands | 7 | |
Core Strands | 7/36 | |
Capacitance | 32.5pF/m | |
Characteristic Impedance | 131 Ω | |
Operating Temperature Range | -55 → +200 °C | |
Size of Strands | 36 | |
Select all | ||
---|---|---|
Brand 3M | ||
Pitch 1.27mm | ||
Number of Ways 10 | ||
Screened/Unscreened Unscreened | ||
American Wire Gauge 28 | ||
Series 3601 | ||
Width 12.7 mm | ||
Conductor Strand Type Stranded | ||
Minimum Operating Temperature -55°C | ||
Voltage Rating 300 V | ||
Maximum Operating Temperature +200°C | ||
Sheath Colour Blue | ||
Number of Strands 7 | ||
Core Strands 7/36 | ||
Capacitance 32.5pF/m | ||
Characteristic Impedance 131 Ω | ||
Operating Temperature Range -55 → +200 °C | ||
Size of Strands 36 | ||
- COO (Country of Origin):
- US
3M FEP 1.27mm Ribbon Cable
From 3M, this FEP ribbon cable is a flexible and robust solution to cabling in electronic devices and appliances. FEP Insulation is compatible with most insulation displacement connectors.
Features and Benefits
0.50 in. pitch parallel conductors
Low dielectric constant
Abrasion and chemical resistant
Non-flammable
FEP (Flourinated Ethylene Proplylene) Material
Silver plated stranded copper conductors
Low dielectric constant
Abrasion and chemical resistant
Non-flammable
FEP (Flourinated Ethylene Proplylene) Material
Silver plated stranded copper conductors
Applications
Ribbon cabling is frequently used in computing and in communication applications. They are often used internally in electronic appliances, and are often used in hard drive wiring. Although they are limited to straight-run installations, they have advantages in that they can provide space efficient solutions to high data transmission. Ribbon cabling is often used in;
Test and Measure
Computing
Robotics
Test and Measure
Computing
Robotics
Why Choose 3M?
3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.
Standards
UL, RoHS
Ribbon Cable Information
Ribbon cables provide a simple, quick and cost-effective solution to mass termination. They also have space and weight saving advantages over other wiring methods and are ideal for use on computers, peripherals, and interface units, audio and digital equipment.
