Molex Premo-Flex Series FFC Ribbon Cable, 40-Way, 0.5mm Pitch, 152mm Length
- RS Stock No.:
- 760-8777
- Mfr. Part No.:
- 15166-0435
- Brand:
- Molex
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 760-8777
- Mfr. Part No.:
- 15166-0435
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Ribbon Cable Type | FFC | |
Pitch | 0.5mm | |
Terminated/Unterminated | Unterminated | |
Number of Ways | 40 | |
Series | Premo-Flex | |
Length | 152mm | |
Width | 0.50 mm | |
Maximum Operating Temperature | +105°C | |
Minimum Operating Temperature | -40°C | |
Voltage Rating | 60 V ac | |
Current Rating | 500 mA | |
Operating Temperature Range | -40 → +105 °C | |
Select all | ||
---|---|---|
Brand Molex | ||
Ribbon Cable Type FFC | ||
Pitch 0.5mm | ||
Terminated/Unterminated Unterminated | ||
Number of Ways 40 | ||
Series Premo-Flex | ||
Length 152mm | ||
Width 0.50 mm | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -40°C | ||
Voltage Rating 60 V ac | ||
Current Rating 500 mA | ||
Operating Temperature Range -40 → +105 °C | ||
- COO (Country of Origin):
- HU
Premo-Flex FFC Cable Assemblies (0.12 mm thick)
A range of Molex Premo-Flex FFC Jumpers 0.5 mm pitch by 0.12 mm thick insulation cable assemblies. End thickness of the connection area is 0.30 ± 0,03 mm.
These ultra-thin, ultra-flexible 0.12 mm thick Premo-Flex FFC Jumper cables have a durability of up to 900,000 cycles, far exceeding the flex life of standard jumpers of 6,000 cycles. The high temperature capability of up to +105 °C of these Molex Premo-Flex FFC Jumpers meets industry standards.
These ultra-thin, ultra-flexible 0.12 mm thick Premo-Flex FFC Jumper cables have a durability of up to 900,000 cycles, far exceeding the flex life of standard jumpers of 6,000 cycles. The high temperature capability of up to +105 °C of these Molex Premo-Flex FFC Jumpers meets industry standards.
Type A Jumpers, contacts on same side

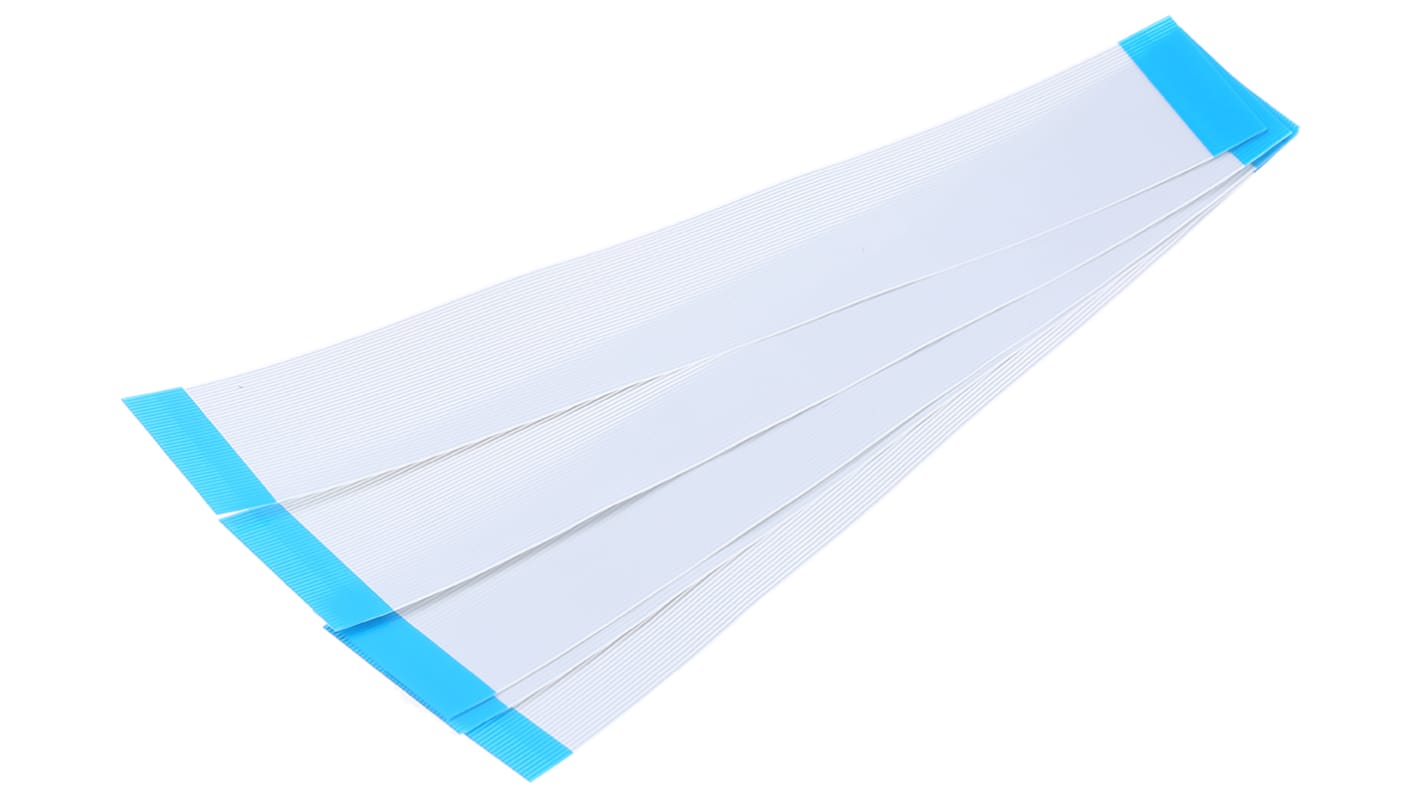

Molex Premo-Flex Series Ribbon Cable, 40 Ways, 0.5mm Pitch - 15166-0435
This ribbon cable features a 0.5mm pitch, designed for flexibility and ease of use in various applications. The unterminated cable is 152mm long and 0.50mm wide, making it suitable for compact installations where space is at a premium. Operating within a temperature range of -40 to +105 °C, it enables reliable connectivity in harsh environments, fulfilling a wide range of electronic applications.
Features & Benefits
• 40 circuits provide enhanced connectivity options
• Flexible construction allows for versatile routing
• Unterminated design simplifies custom installations
• Tin plating ensures improved conductivity and performance
• Compatible with various connectors for easy integration
• Flexible construction allows for versatile routing
• Unterminated design simplifies custom installations
• Tin plating ensures improved conductivity and performance
• Compatible with various connectors for easy integration
Applications
• Used for interconnecting PCB devices in automation
• Suitable for automotive electronic systems requiring compact wiring
• Ideal for consumer electronics for efficient space utilisation
• Recommended for industrial equipment for durable, high-performance connections
• Suitable for automotive electronic systems requiring compact wiring
• Ideal for consumer electronics for efficient space utilisation
• Recommended for industrial equipment for durable, high-performance connections
What maximum current rating can be supported?
The cable supports a maximum current rating of 0.5A per contact, suitable for low-power applications.
What is the significance of the 0.5mm pitch?
The 0.5mm pitch allows for densely packed connections, optimising space in compact electronic devices.
How does the cable perform in extreme temperatures?
It operates efficiently within the range of -40 to +105 °C, making it suitable for harsh environments.
Can this cable be used in high-voltage applications?
The voltage rating is 60V AC, which limits its use to low-voltage applications. Be sure to adhere to this specification.
