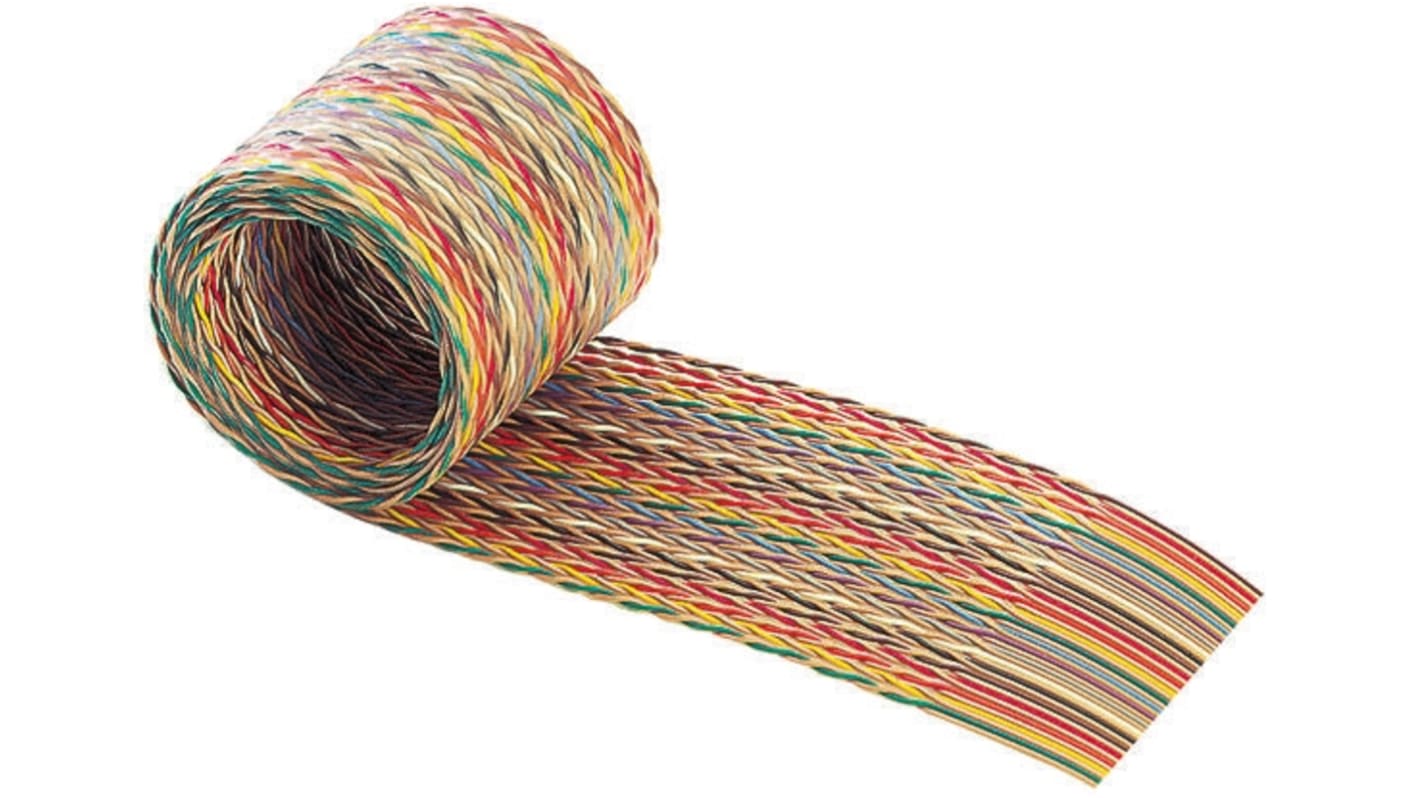

Amphenol ICC Spectra-Strip Series Ribbon Cable, 64-Way, 1.27mm Pitch
- RS Stock No.:
- 754-2286
- Mfr. Part No.:
- 132-2801-064
- Brand:
- Amphenol ICC
Image representative of range
Discontinued
- RS Stock No.:
- 754-2286
- Mfr. Part No.:
- 132-2801-064
- Brand:
- Amphenol ICC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol ICC | |
| Pitch | 1.27mm | |
| Number of Ways | 64 | |
| Screened/Unscreened | Unscreened | |
| American Wire Gauge | 28 | |
| Series | Spectra-Strip | |
| Width | 81.94 mm | |
| Conductor Strand Type | Stranded | |
| Voltage Rating | 300 V | |
| Number of Strands | 7 | |
| Sheath Colour | Transparent | |
| Size of Strands | 36 | |
| Core Strands | 7/36 | |
| Capacitance | 49.2pF/m | |
| Characteristic Impedance | 100 Ω | |
| Select all | ||
|---|---|---|
Brand Amphenol ICC | ||
Pitch 1.27mm | ||
Number of Ways 64 | ||
Screened/Unscreened Unscreened | ||
American Wire Gauge 28 | ||
Series Spectra-Strip | ||
Width 81.94 mm | ||
Conductor Strand Type Stranded | ||
Voltage Rating 300 V | ||
Number of Strands 7 | ||
Sheath Colour Transparent | ||
Size of Strands 36 | ||
Core Strands 7/36 | ||
Capacitance 49.2pF/m | ||
Characteristic Impedance 100 Ω | ||
- COO (Country of Origin):
- US
Amphenol Spectra-Strip, Twist 'N' Flat Planar Cable 1.27mm Pitch
Amphenol Spectra-Strip Twist 'N' Flat cable combines mass termination with the electrical performance of twisted pairs.
Features and Benefits
· 1.27 mm pitch
· Twisted pairs for crosstalk reduction
· Double side laminated provides conductor strain relief
· 1.27 mm pitch
· Twisted pairs for crosstalk reduction
· Double side laminated provides conductor strain relief
Applications
· Spectra-Strip Twist 'N' Flat ribbon cables are ideal for computer and communications equipment use
· Spectra-Strip Twist 'N' Flat ribbon cables are ideal for computer and communications equipment use
Approvals
UL
Ribbon cables provide a simple, quick and cost-effective solution to mass termination. They also have space and weight saving advantages over other wiring methods and are ideal for use on computers, peripherals, and interface units, audio and digital equipment. Colour coded ribbon cable with alternate twisted pair and parallel conductor sections. Twisting of adjacent conductors reduces crosstalk whilst the flat sections at regular intervals still facilitate easy termination.
