Amphenol Spectra-Strip Series Ribbon Cable, 40-Way, 1.27mm Pitch
- RS Stock No.:
- 754-2270
- Mfr. Part No.:
- 132-2801-040
- Brand:
- Amphenol
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 754-2270
- Mfr. Part No.:
- 132-2801-040
- Brand:
- Amphenol
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol | |
| Pitch | 1.27mm | |
| Number of Ways | 40 | |
| Screened/Unscreened | Unscreened | |
| American Wire Gauge | 28 | |
| Series | Spectra-Strip | |
| Width | 51.46 mm | |
| Sheath Colour | Transparent | |
| Number of Strands | 7 | |
| Conductor Strand Type | Stranded | |
| Voltage Rating | 300 V | |
| Core Strands | 7/36 | |
| Capacitance | 49.2pF/m | |
| Characteristic Impedance | 100 Ω | |
| Size of Strands | 36 | |
Select all | ||
|---|---|---|
Brand Amphenol | ||
Pitch 1.27mm | ||
Number of Ways 40 | ||
Screened/Unscreened Unscreened | ||
American Wire Gauge 28 | ||
Series Spectra-Strip | ||
Width 51.46 mm | ||
Sheath Colour Transparent | ||
Number of Strands 7 | ||
Conductor Strand Type Stranded | ||
Voltage Rating 300 V | ||
Core Strands 7/36 | ||
Capacitance 49.2pF/m | ||
Characteristic Impedance 100 Ω | ||
Size of Strands 36 | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- US

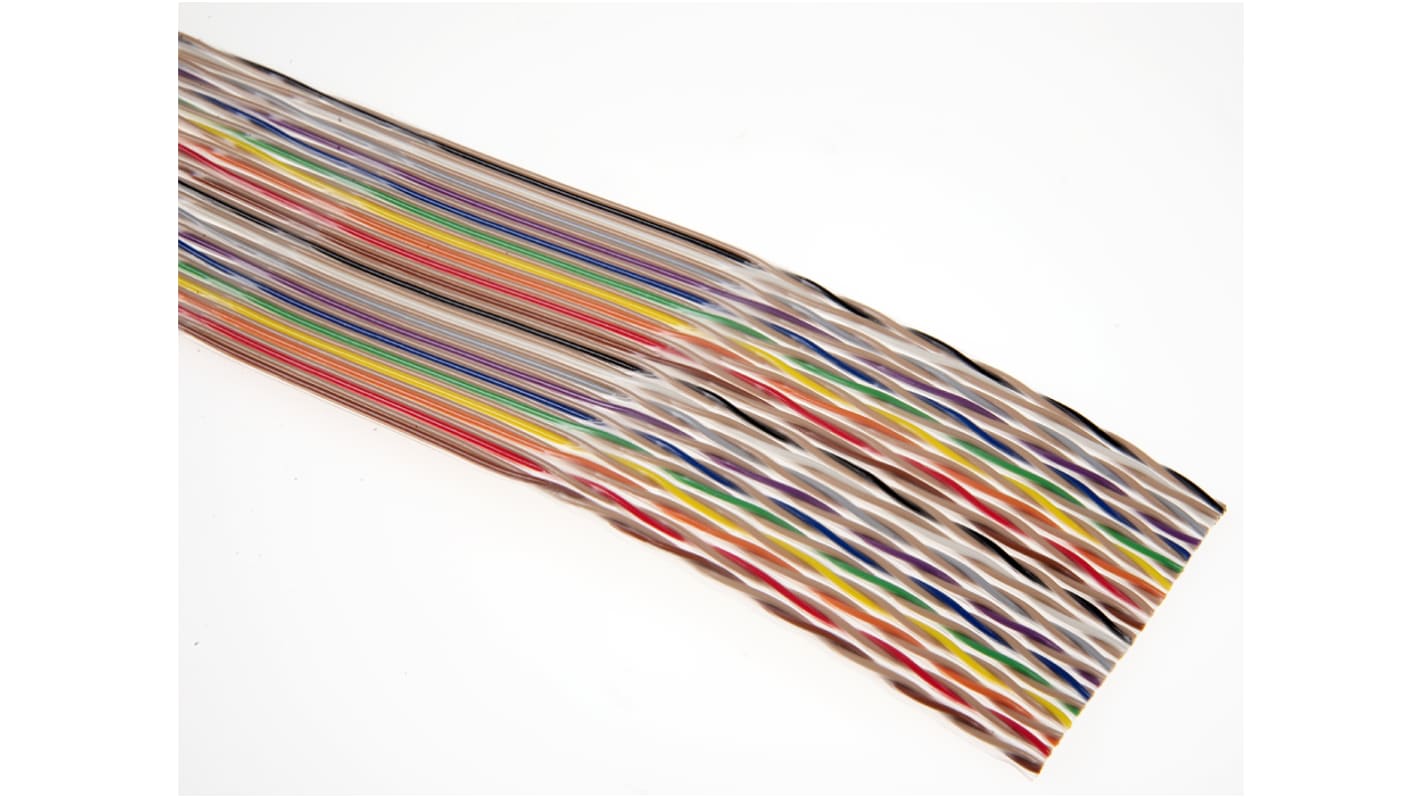

Amphenol Spectra-Strip, Twist 'N' Flat Planar Cable 1.27mm Pitch
Amphenol Spectra-Strip Twist 'N' Flat cable combines mass termination with the electrical performance of twisted pairs.
Features and Benefits
· 1.27 mm pitch
· Twisted pairs for crosstalk reduction
· Double side laminated provides conductor strain relief
· 1.27 mm pitch
· Twisted pairs for crosstalk reduction
· Double side laminated provides conductor strain relief
Applications
· Spectra-Strip Twist 'N' Flat ribbon cables are ideal for computer and communications equipment use
· Spectra-Strip Twist 'N' Flat ribbon cables are ideal for computer and communications equipment use
Approvals
UL
Ribbon cables provide a simple, quick and cost-effective solution to mass termination. They also have space and weight saving advantages over other wiring methods and are ideal for use on computers, peripherals, and interface units, audio and digital equipment. Colour coded ribbon cable with alternate twisted pair and parallel conductor sections. Twisting of adjacent conductors reduces crosstalk whilst the flat sections at regular intervals still facilitate easy termination.
