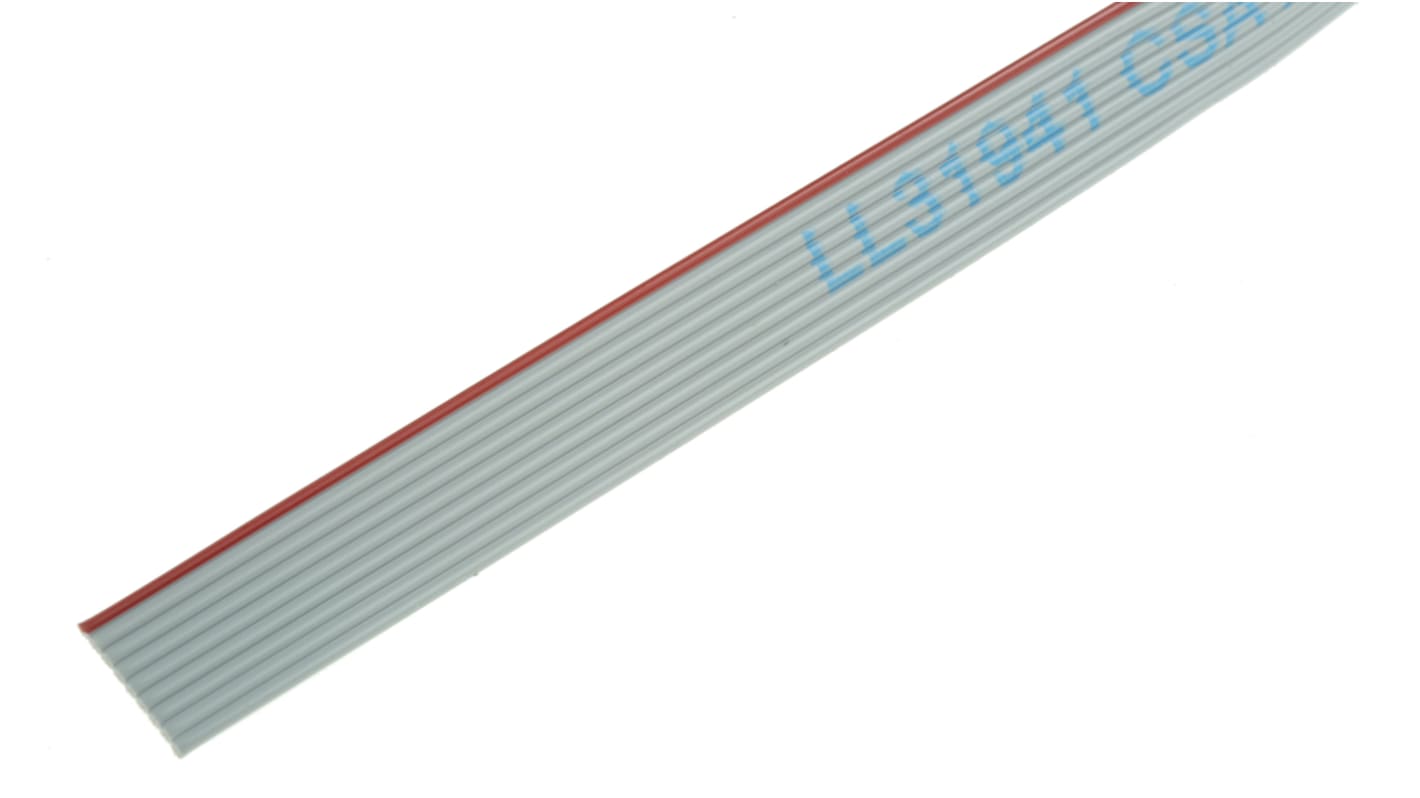

Amphenol Spectra-Strip Series Ribbon Cable, 9-Way, 1.27mm Pitch
- RS Stock No.:
- 708-2043
- Mfr. Part No.:
- 191-2801-109
- Brand:
- Amphenol
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 708-2043
- Mfr. Part No.:
- 191-2801-109
- Brand:
- Amphenol
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol | |
| Pitch | 1.27mm | |
| Number of Ways | 9 | |
| Screened/Unscreened | Unscreened | |
| American Wire Gauge | 28 | |
| Series | Spectra-Strip | |
| Width | 11.43 mm | |
| Number of Strands | 7 | |
| Sheath Colour | Grey | |
| Conductor Strand Type | Stranded | |
| Voltage Rating | 300 V | |
| Size of Strands | 36 AWG | |
| Core Strands | 7/36 | |
| Characteristic Impedance | 105 Ω | |
| Capacitance | 45.92pF/m | |
Select all | ||
|---|---|---|
Brand Amphenol | ||
Pitch 1.27mm | ||
Number of Ways 9 | ||
Screened/Unscreened Unscreened | ||
American Wire Gauge 28 | ||
Series Spectra-Strip | ||
Width 11.43 mm | ||
Number of Strands 7 | ||
Sheath Colour Grey | ||
Conductor Strand Type Stranded | ||
Voltage Rating 300 V | ||
Size of Strands 36 AWG | ||
Core Strands 7/36 | ||
Characteristic Impedance 105 Ω | ||
Capacitance 45.92pF/m | ||
- COO (Country of Origin):
- US
Planar Cable
An Amphenol Spectra-Strip planar cable for reliable performance.
Features and Benefits
· Fast mass termination
· Flexible
· Easy conductor separation for circuit routing
· Fast mass termination
· Flexible
· Easy conductor separation for circuit routing
Applications
· General purpose interconnection in electronics
· General purpose interconnection in electronics
Note
These products are supplied in a 30m reeled box.
Ribbon Cable Information
Ribbon cables provide a simple, quick and cost-effective solution to mass termination. They also have space and weight saving advantages over other wiring methods and are ideal for use on computers, peripherals, and interface units, audio and digital equipment.
