Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 424-2012
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Pitch | 0.64mm | |
| Number of Ways | 26 | |
| Screened/Unscreened | Unscreened | |
| American Wire Gauge | 30 | |
| Width | 16.51 mm | |
| Maximum Operating Temperature | +105°C | |
| Sheath Colour | Grey | |
| Number of Strands | 1 | |
| Conductor Strand Type | Solid | |
| Voltage Rating | 150 V | |
| Minimum Operating Temperature | -20°C | |
| Characteristic Impedance | 80 Ω | |
| Core Strands | 1/30 | |
| Operating Temperature Range | -20 → +105 °C | |
| High Density | Yes | |
| Size of Strands | 30 AWG | |
| Capacitance | 62.32pF/m | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Pitch 0.64mm | ||
Number of Ways 26 | ||
Screened/Unscreened Unscreened | ||
American Wire Gauge 30 | ||
Width 16.51 mm | ||
Maximum Operating Temperature +105°C | ||
Sheath Colour Grey | ||
Number of Strands 1 | ||
Conductor Strand Type Solid | ||
Voltage Rating 150 V | ||
Minimum Operating Temperature -20°C | ||
Characteristic Impedance 80 Ω | ||
Core Strands 1/30 | ||
Operating Temperature Range -20 → +105 °C | ||
High Density Yes | ||
Size of Strands 30 AWG | ||
Capacitance 62.32pF/m | ||
- COO (Country of Origin):
- US

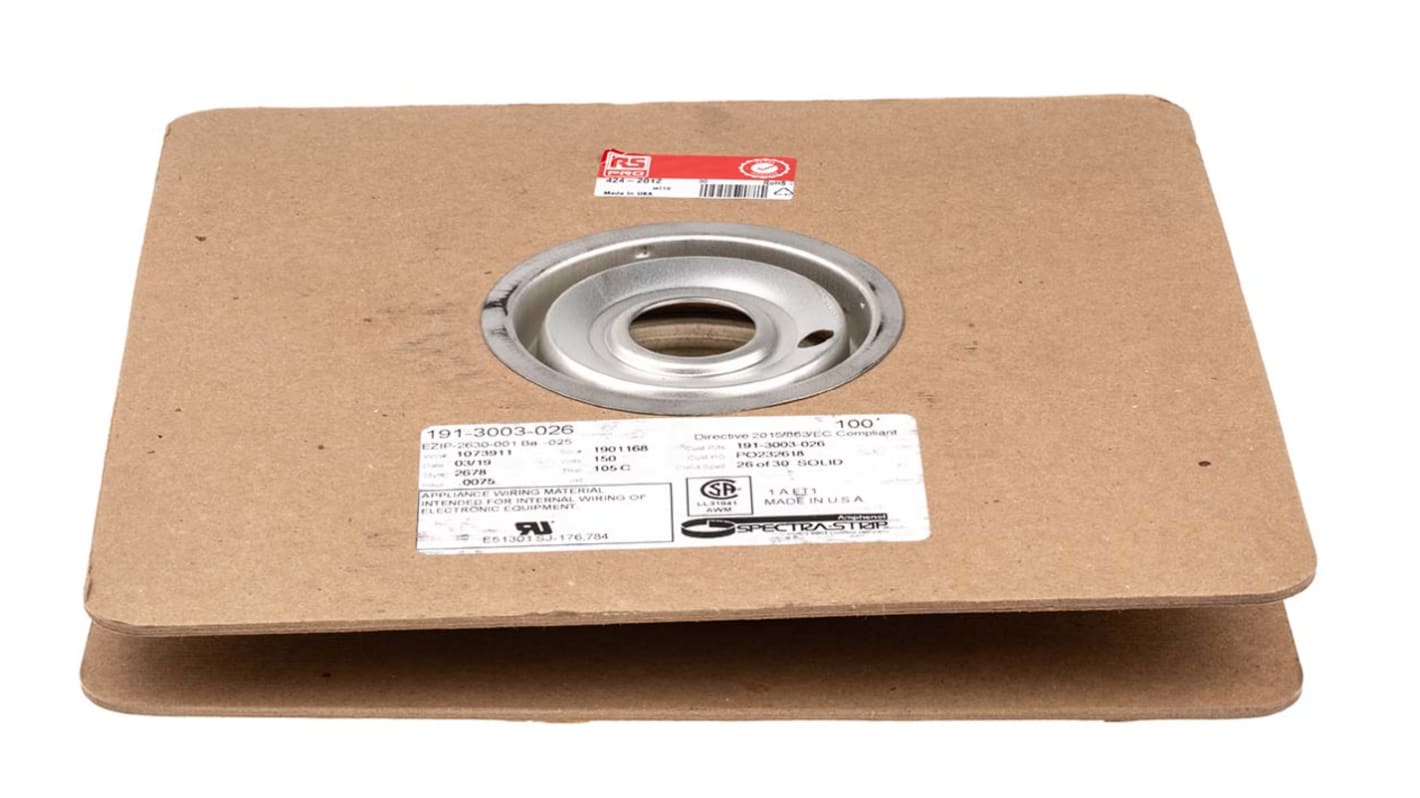

High Density 0.635mm Pitch Ribbon Cable
High density centre-to-centre pitch allows increased miniaturisation
Precise spacing for controlled electrical characteristics
Easy, fast mass-termination
The first conductor easily identified via continuous black edge trace
Double contour allows termination from either side of the cable
Solid 30awg conductors on 0.635mm (0.025in) spacing
UL style 2678
Precise spacing for controlled electrical characteristics
Easy, fast mass-termination
The first conductor easily identified via continuous black edge trace
Double contour allows termination from either side of the cable
Solid 30awg conductors on 0.635mm (0.025in) spacing
UL style 2678
Note
Speedbloc® is a trade name of RS Components Ltd.
Warning
These cables are not to be regarded as power cables or cables for the direct connection of equipment to mains power supplies.
Approvals
UL Recognised
High Density
Ribbon cables provide a simple, quick and cost-effective solution to mass termination. They also have space and weight saving advantages over other wiring methods. They are therefore ideal for use on computers, peripherals, and interface units, audio and digital equipment.
