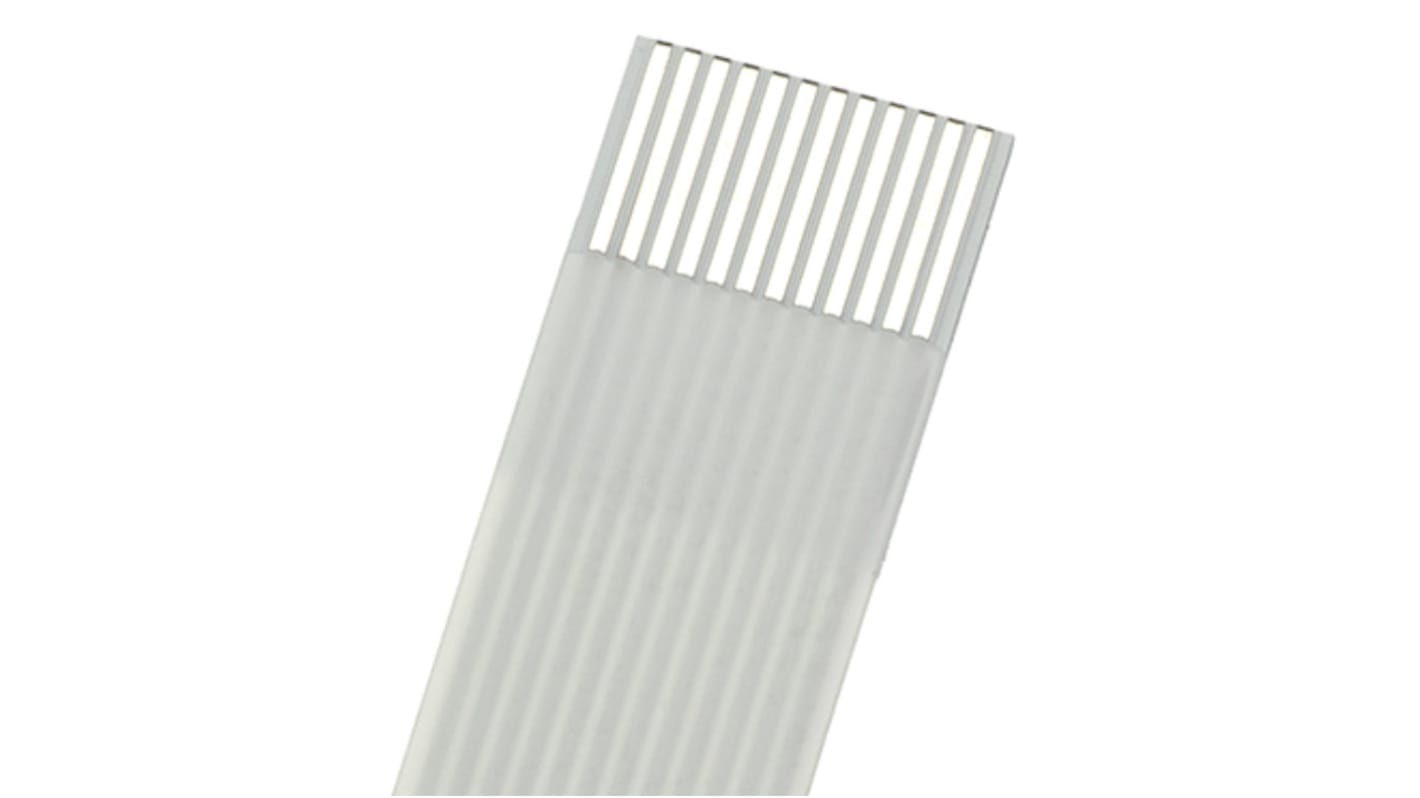

Molex 98266 Series FFC Ribbon Cable, 15-Way, 0.5mm Pitch, 51mm Length
- RS Stock No.:
- 219-3644
- Mfr. Part No.:
- 982660835
- Brand:
- Molex
Bulk discount available
Subtotal (1 box of 250 units)*
£437.50
(exc. VAT)
£525.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 250 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 250 - 750 | £1.75 | £437.50 |
| 1000 + | £1.702 | £425.50 |
*price indicative
- RS Stock No.:
- 219-3644
- Mfr. Part No.:
- 982660835
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Ribbon Cable Type | FFC | |
| Pitch | 0.5mm | |
| Number of Ways | 15 | |
| Series | 98266 | |
| Length | 51mm | |
| Maximum Operating Temperature | +105°C | |
| Voltage Rating | 60 V ac | |
| Minimum Operating Temperature | -40°C | |
| Current Rating | 500 mA | |
| Operating Temperature Range | -40 → +105 °C | |
Select all | ||
|---|---|---|
Brand Molex | ||
Ribbon Cable Type FFC | ||
Pitch 0.5mm | ||
Number of Ways 15 | ||
Series 98266 | ||
Length 51mm | ||
Maximum Operating Temperature +105°C | ||
Voltage Rating 60 V ac | ||
Minimum Operating Temperature -40°C | ||
Current Rating 500 mA | ||
Operating Temperature Range -40 → +105 °C | ||
- COO (Country of Origin):
- DE
The Molex premo-flex cable jumper offers flexibility and performance for reliable board to board connection. It has 51 mm length and 15 circuits. Premo-flex flat-flexible cable (FFC) jumpers offer an extensive range of custom and off-the-shelf options these options enable designers to maximize PCB space, reduce component costs.
Polyester insulation
Simple assembly process
Meets industry standard requirements
Simple assembly process
Meets industry standard requirements
