Molex Premo-Flex Series FFC Ribbon Cable, 36-Way, 0.5mm Pitch, 152mm Length
- RS Stock No.:
- 219-3634
- Mfr. Part No.:
- 982660391
- Brand:
- Molex
Save 2% when you buy 1000 units
Subtotal (1 box of 250 units)*
£770.75
(exc. VAT)
£925.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 250 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 250 - 750 | £3.083 | £770.75 |
| 1000 + | £2.997 | £749.25 |
*price indicative
- RS Stock No.:
- 219-3634
- Mfr. Part No.:
- 982660391
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Ribbon Cable Type | FFC | |
| Pitch | 0.5mm | |
| Terminated/Unterminated | Unterminated | |
| Number of Ways | 36 | |
| Series | Premo-Flex | |
| Length | 152mm | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -40°C | |
| Voltage Rating | 60 V ac | |
| Operating Temperature Range | -40 → +105 °C | |
| Current Rating | 500 mA | |
| Standards Met | IEC 61249-2-21 | |
Select all | ||
|---|---|---|
Brand Molex | ||
Ribbon Cable Type FFC | ||
Pitch 0.5mm | ||
Terminated/Unterminated Unterminated | ||
Number of Ways 36 | ||
Series Premo-Flex | ||
Length 152mm | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -40°C | ||
Voltage Rating 60 V ac | ||
Operating Temperature Range -40 → +105 °C | ||
Current Rating 500 mA | ||
Standards Met IEC 61249-2-21 | ||
- COO (Country of Origin):
- HU

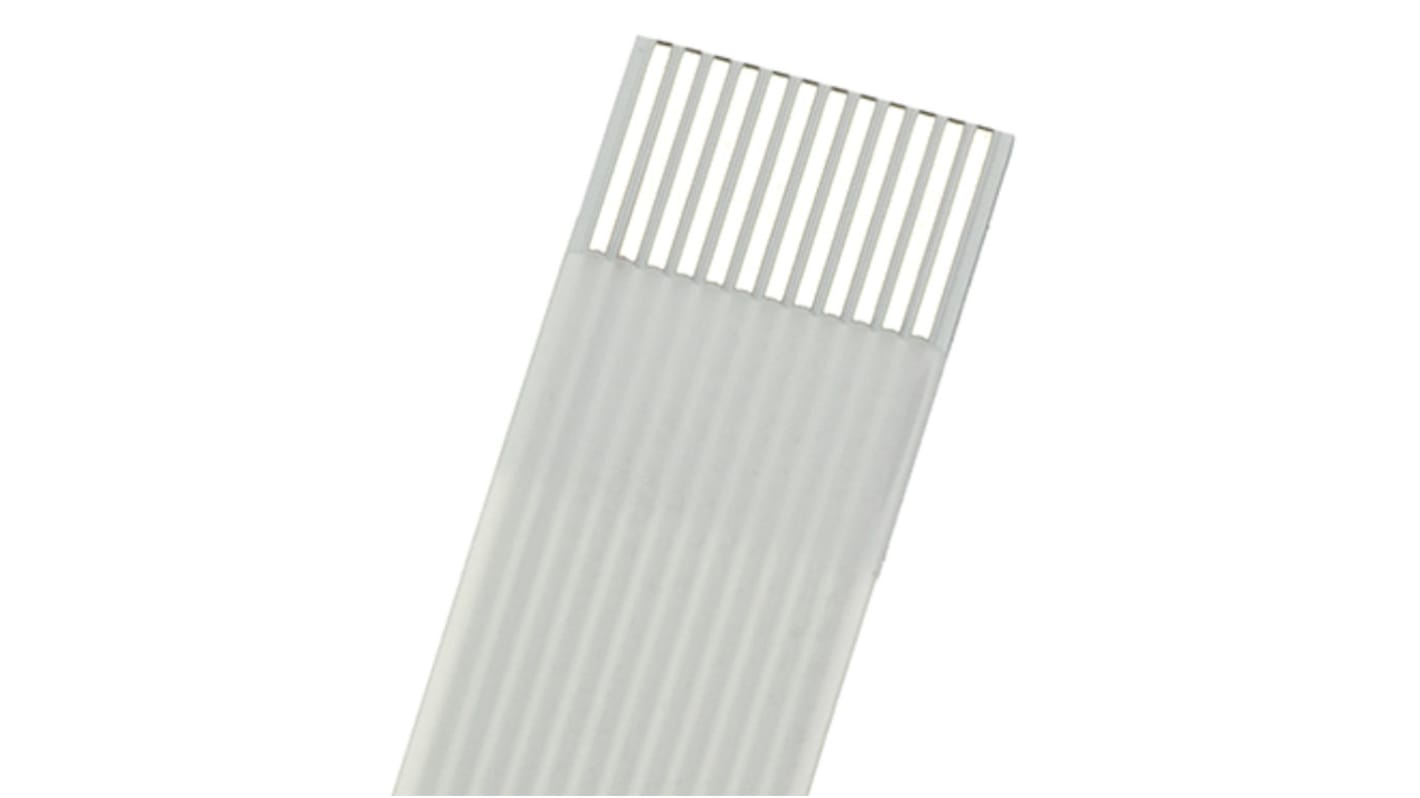

Molex Ribbon Cable, Type-A Contact Layout, 0.5mm Pitch - Premo-Flex Series - 982660391
Choose this ribbon cable from Molex for effective signal transmission between electrical components. Its flat, flexible design means it's ideal for internal wiring in devices where rounded flexes won't fit. A length of 152mm gives you easy reach between pieces of IT equipment and motherboards. For easy installation, the contacts are located on the same side.
Features & Benefits
• Light 1.776g weight means minimal strain on your board
• Tin-plated contacts resist corrosion for use in damp environments
• Dependable in harsh conditions thanks to a broad operating temperature range of -40°C to +105°C
• 36-way layout means you get high data transfer capacity and strong signal integrity
• Tin-plated contacts resist corrosion for use in damp environments
• Dependable in harsh conditions thanks to a broad operating temperature range of -40°C to +105°C
• 36-way layout means you get high data transfer capacity and strong signal integrity
Applications
• Industrial automation
• R&D labs
• Medical devices
• R&D labs
• Medical devices
How many do I get in a box?
The cable comes in a box of 250 so you have plenty of stock for multiple tasks.
