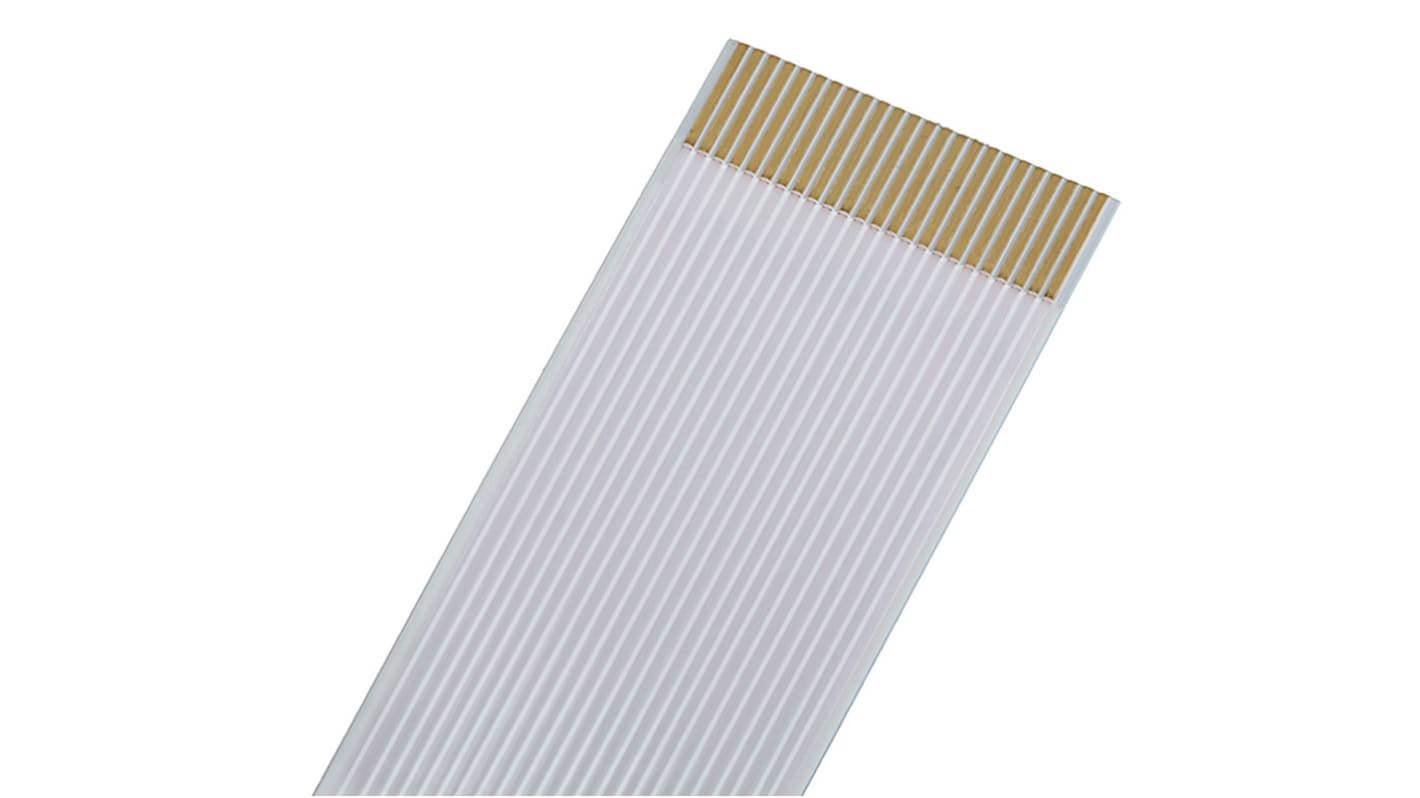

Molex 15020 Series, Flat Ribbon Ribbon Cable, 51 mm Length, 45, Type D to Type D

RS Stock No.:: 219-3449
Mfr. Part No.:: 150201164
Brand:: Molex

Molex 15020 Series, Flat Ribbon Ribbon Cable, 51 mm Length, 45, Type D to Type D

Bulk discount available

Subtotal (1 pack of 5 units)*

£15.33

(exc. VAT)

£18.395

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

455 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
5 - 45	£3.066	£15.33
50 - 120	£2.98	£14.90
125 +	£2.90	£14.50

*price indicative

RS Stock No.:: 219-3449
Mfr. Part No.:: 150201164
Brand:: Molex

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Molex
	Connector Type A	Type D
	Cable Type	Flat Ribbon
	Product Type	Ribbon Cable
	Connector Type B	Type D
	Number of Contacts A	45
	Number of Contacts B	45
	Series	15020
	Cable Length	51mm
	Standards/Approvals	IEC 61249-2-21
	Jacket Colour	White

	Select all
	Brand Molex
	Connector Type A Type D
	Cable Type Flat Ribbon
	Product Type Ribbon Cable
	Connector Type B Type D
	Number of Contacts A 45
	Number of Contacts B 45
	Series 15020
	Cable Length 51mm
	Standards/Approvals IEC 61249-2-21
	Jacket Colour White

Datasheet - 150201164

Non Compliant

COO (Country of Origin):: CN

Molex Ribbon Cable, 60V AC Maximum Voltage Rating, 51mm Length - 15020 Series - 150201164

Bring the components linked to your PCB together with this ribbon cable from Molex. Its 45-way construction gives you control over multiple circuits to boost efficiency and streamline your setup. The gold-plated contacts are highly conductive, so you get reliable connections and efficient signal transmission. Each contact can handle a maximum current of 0.5A to boost energy efficiency and minimise heat production. This cable has a 0.5mm gap between its conductors to avoid contact and reduce the chance of short circuits.

Features & Benefits

• Polyester insulation resists moisture and chemicals to ensure long-lasting use

• Flat and flexible design reduces crosstalk and enhances signal integrity

• Straightforward assembly with compatible Easy-On FFC/FPC connectors (such as 788-3622) saves time and hassle

Applications

• Entertainment systems

• Automotive applications

• Networking devices

• Telecommunications industry

What temperature range can the cable handle?

It performs without a hitch in an operating temperature range between -40°C and +105°C.
