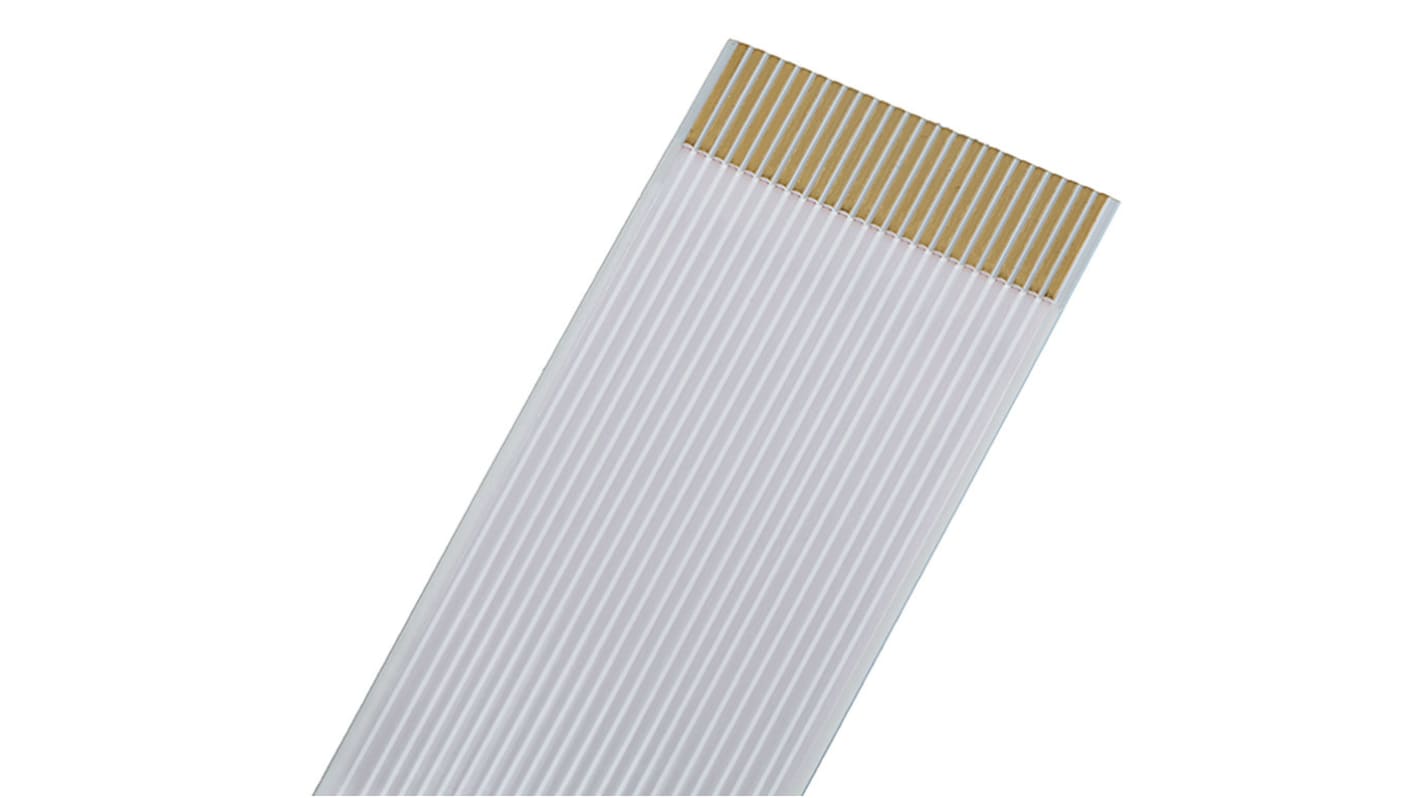

Molex Premo-Flex Series FFC Ribbon Cable, 22-Way, 0.5mm Pitch, 76mm Length
- RS Stock No.:
- 219-3381
- Mfr. Part No.:
- 150200231
- Brand:
- Molex
Save 2% when you buy 1000 units
Subtotal (1 box of 250 units)*
£617.25
(exc. VAT)
£740.75
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 250 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 250 - 750 | £2.469 | £617.25 |
| 1000 + | £2.397 | £599.25 |
*price indicative
- RS Stock No.:
- 219-3381
- Mfr. Part No.:
- 150200231
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Ribbon Cable Type | FFC | |
| Pitch | 0.5mm | |
| Terminated/Unterminated | Unterminated | |
| Number of Ways | 22 | |
| Series | Premo-Flex | |
| Length | 76mm | |
| Voltage Rating | 60 V ac | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -40°C | |
| Standards Met | IEC 61249-2-21 | |
| Operating Temperature Range | -40 → +105 °C | |
| Current Rating | 500 mA | |
Select all | ||
|---|---|---|
Brand Molex | ||
Ribbon Cable Type FFC | ||
Pitch 0.5mm | ||
Terminated/Unterminated Unterminated | ||
Number of Ways 22 | ||
Series Premo-Flex | ||
Length 76mm | ||
Voltage Rating 60 V ac | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -40°C | ||
Standards Met IEC 61249-2-21 | ||
Operating Temperature Range -40 → +105 °C | ||
Current Rating 500 mA | ||
Non Compliant
- COO (Country of Origin):
- CN
Molex Ribbon Cable, 60V AC Voltage Rating, 76mm Cable Length - Premo-Flex Series - 150200231
Looking for a flexible connection solution to link peripheral parts to your circuit board? This ribbon cable from Molex is your answer. It features 22 conductors running parallel to each other, giving it a flat shape that you can bend and route in tight spaces. The cable's 60V AC voltage rating makes it suitable for use in low-voltage settings. It spans just 76mm, so it's short enough to get the job done without causing clutter in your setup.
Features & Benefits
• Comes in a box of 250, so you get enough to cover large setups
• Gold contact plating resists corrosion to ensure long-lasting service
• Gold contact plating resists corrosion to ensure long-lasting service
Applications
• Telecommunications industry
• Server banks
• Robotics systems
• Server banks
• Robotics systems
What connectors does this ribbon cable mate with?
This versatile unit mates with surface-mounted FFC/FPC connectors in the FBH1 series (such as 179-0014).
