Molex 15020 Series FFC Ribbon Cable, 14-Way, 0.5mm Pitch, 102mm Length
- RS Stock No.:
- 219-3366
- Mfr. Part No.:
- 150200145
- Brand:
- Molex
Bulk discount available
Subtotal (1 box of 250 units)*
£529.00
(exc. VAT)
£634.75
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 250 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
---|---|---|
250 - 750 | £2.116 | £529.00 |
1000 + | £2.058 | £514.50 |
*price indicative
- RS Stock No.:
- 219-3366
- Mfr. Part No.:
- 150200145
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Ribbon Cable Type | FFC | |
Pitch | 0.5mm | |
Terminated/Unterminated | Unterminated | |
Number of Ways | 14 | |
Series | 15020 | |
Length | 102mm | |
Maximum Operating Temperature | +105°C | |
Minimum Operating Temperature | -40°C | |
Voltage Rating | 60 V ac | |
Standards Met | IEC 61249-2-21 | |
Current Rating | 500 mA | |
Operating Temperature Range | -40 → +105 °C | |
Select all | ||
---|---|---|
Brand Molex | ||
Ribbon Cable Type FFC | ||
Pitch 0.5mm | ||
Terminated/Unterminated Unterminated | ||
Number of Ways 14 | ||
Series 15020 | ||
Length 102mm | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -40°C | ||
Voltage Rating 60 V ac | ||
Standards Met IEC 61249-2-21 | ||
Current Rating 500 mA | ||
Operating Temperature Range -40 → +105 °C | ||
- COO (Country of Origin):
- CN

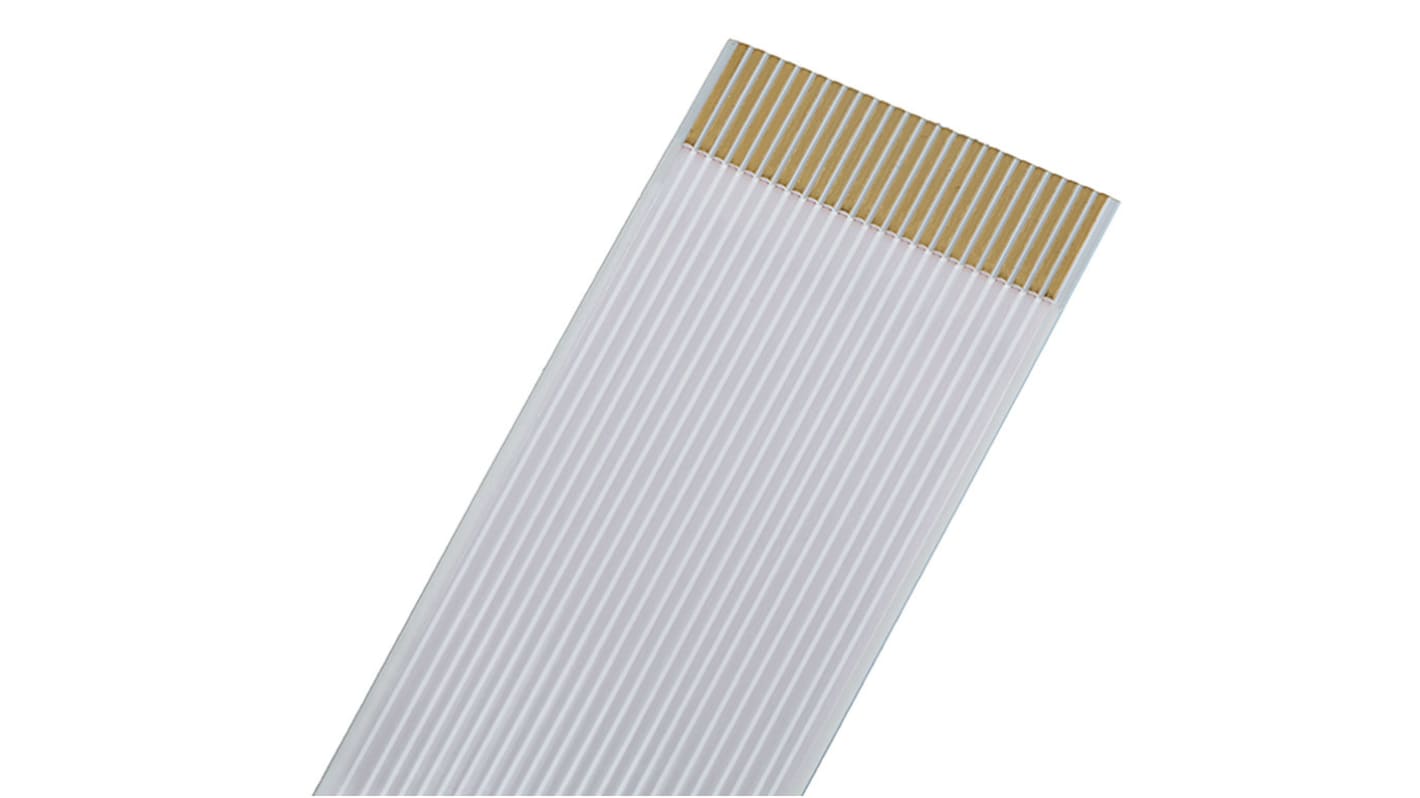

Molex Ribbon Cable, 14-Way, 0.5mm Pitch - 150200145
This high quality Molex ribbon cable, also known as FFC jumper, features a 0.5mm pitch, 14 ways. It is designed for efficiency and reliability in various automation, electronics, electrical, and mechanical applications.
Features & Benefits
• Compact and flexible design for easy installation and routing
• 0.5mm pitch ensures precise connections and signal integrity
• 14 way configuration allows for multiple connections in a single cable
• Gold plating for superior conductivity and corrosion resistance
• Wide operating temperature range of 40°C to +105°C for versatility
• Suitable for flat flex cable applications
• Can handle a maximum current of 0.5A and a maximum voltage of 60V AC
• 0.5mm pitch ensures precise connections and signal integrity
• 14 way configuration allows for multiple connections in a single cable
• Gold plating for superior conductivity and corrosion resistance
• Wide operating temperature range of 40°C to +105°C for versatility
• Suitable for flat flex cable applications
• Can handle a maximum current of 0.5A and a maximum voltage of 60V AC
Applications
• Ideal for use in robotics and automation systems
• Suitable for connecting components in electronic devices
• Perfect for applications requiring flat flex cables
• Used in test and measurement equipment
• Ideal for high-density interconnect solutions
• Suitable for connecting components in electronic devices
• Perfect for applications requiring flat flex cables
• Used in test and measurement equipment
• Ideal for high-density interconnect solutions
Can it withstand extreme temperatures?
Yes, the Molex ribbon cable can operate in temperatures ranging from -40°C to +105°C.
Will it fit into tight spaces?
The compact and flexible design of the cable makes it easy to install in tight spaces.
Is it compatible with various electronic devices?
Yes, the cable is suitable for connecting components in a wide range of electronic devices.
Can it handle high-density interconnect solutions?
Yes, the 14-way configuration allows for multiple connections in a single cable.
Does it require special tools for installation?
No, the cable is designed for easy installation and routing without the need for special tools.
