3M HF659 Series Ribbon Cable, Jacketed, Round Shielded, Flat, 0.64 mm Pitch, 26, 275 ft Length
- RS Stock No.:
- 624-525
- Mfr. Part No.:
- HF659/26
- Brand:
- 3M
Subtotal (1 pack of 8 units)*
£5,870.46
(exc. VAT)
£7,044.55
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 05 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £5,870.46 | £733.808 |
*price indicative
- RS Stock No.:
- 624-525
- Mfr. Part No.:
- HF659/26
- Brand:
- 3M
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Product Type | Ribbon Cable | |
| Cable Type | Jacketed, Round Shielded, Flat | |
| Pitch | 0.64mm | |
| Voltage | 150V | |
| Screened/Unscreened | Screened | |
| American Wire Gauge | 28AWG | |
| Number of Conductors | 26 | |
| Conductor Type | Stranded | |
| Jacket Material | Polyolefin | |
| Series | HF659 | |
| Cable Length | 275ft | |
| Standards/Approvals | UL File No: E42769, UL758, NF X 70-100-2-2006, IEC 61034-2-2005, UL STYLE NO: 22170, IEC 61249-2-21 | |
| Hi-Flex | No | |
| Jacket Colour | Dark Grey | |
| Conductor Material | Tin Plated Copper | |
| Minimum Operating Temperature | -40°C | |
| Fire Behaviour | Flammability rating according to UL, External: Cable Flame (Vertical) Per Ul758 | |
| Maximum Operating Temperature | 105°C | |
| Select all | ||
|---|---|---|
Brand 3M | ||
Product Type Ribbon Cable | ||
Cable Type Jacketed, Round Shielded, Flat | ||
Pitch 0.64mm | ||
Voltage 150V | ||
Screened/Unscreened Screened | ||
American Wire Gauge 28AWG | ||
Number of Conductors 26 | ||
Conductor Type Stranded | ||
Jacket Material Polyolefin | ||
Series HF659 | ||
Cable Length 275ft | ||
Standards/Approvals UL File No: E42769, UL758, NF X 70-100-2-2006, IEC 61034-2-2005, UL STYLE NO: 22170, IEC 61249-2-21 | ||
Hi-Flex No | ||
Jacket Colour Dark Grey | ||
Conductor Material Tin Plated Copper | ||
Minimum Operating Temperature -40°C | ||
Fire Behaviour Flammability rating according to UL, External: Cable Flame (Vertical) Per Ul758 | ||
Maximum Operating Temperature 105°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- US

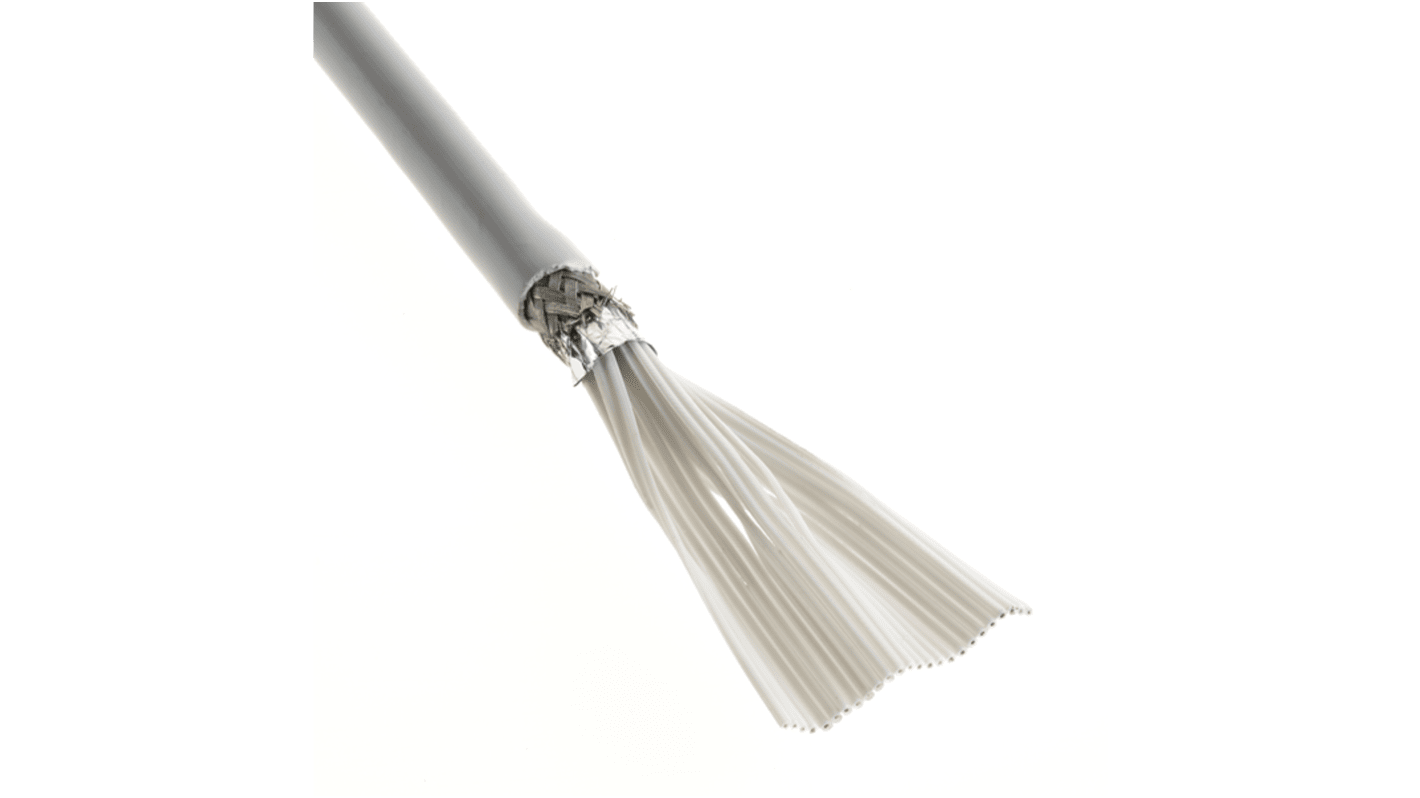

3M HF659 Series Ribbon Cable, 275ft Cable Length, 26 Conductors - HF659/26
This ribbon cable is a screened, multi-conductor cable intended for signal and interconnection tasks in industrial and electronic assemblies. It combines a flat conductor arrangement with an overall round shielded construction and a polyolefin outer sheath to perform in demanding electrical environments up to moderate voltages.
Features and Benefits:
• 26 conductors provide dense multi-signal routing
• 28AWG stranded cores deliver flexible handling
• Tin‑plated copper conductors reduce corrosion risk
• 0.64mm pitch supports Compact connector interfaces
• Rated to 150V for low‑voltage control circuits
• Operates between -40°C and 105°C for temperature resilience
• 28AWG stranded cores deliver flexible handling
• Tin‑plated copper conductors reduce corrosion risk
• 0.64mm pitch supports Compact connector interfaces
• Rated to 150V for low‑voltage control circuits
• Operates between -40°C and 105°C for temperature resilience
Applications
• Suitable for internal wiring of automation control cabinets
• Ideal for harnesses in industrial electronics assembly
• Used with signal distribution blocks in machinery panels
• Can be used for cable runs requiring screened conductors
• Ideal for harnesses in industrial electronics assembly
• Used with signal distribution blocks in machinery panels
• Can be used for cable runs requiring screened conductors
How is the cable screened to manage interference?
An overall shield surrounds the flat conductor array to limit electromagnetic ingress and egress for improved signal integrity in electrically noisy environments.
What material and strand count make up each conductor?
Each conductor is a stranded core MADE from tin‑plated copper comprising seven strands to balance flexibility and conductivity.
Which sheath material is used and what is its appearance?
The outer jacket is polyolefin and is supplied in a dark grey finish to match industrial installations.
What fire-performance and standards-related characteristics apply?
The cable meets specified flame-retardant and safety standards referenced under recognised test files and IEC/UL designations for reduced smoke and flame behaviour.
How is the cable supplied for installation lengthwise?
The product is provided on a long spool length suitable for extended runs in assembly and installation projects.
