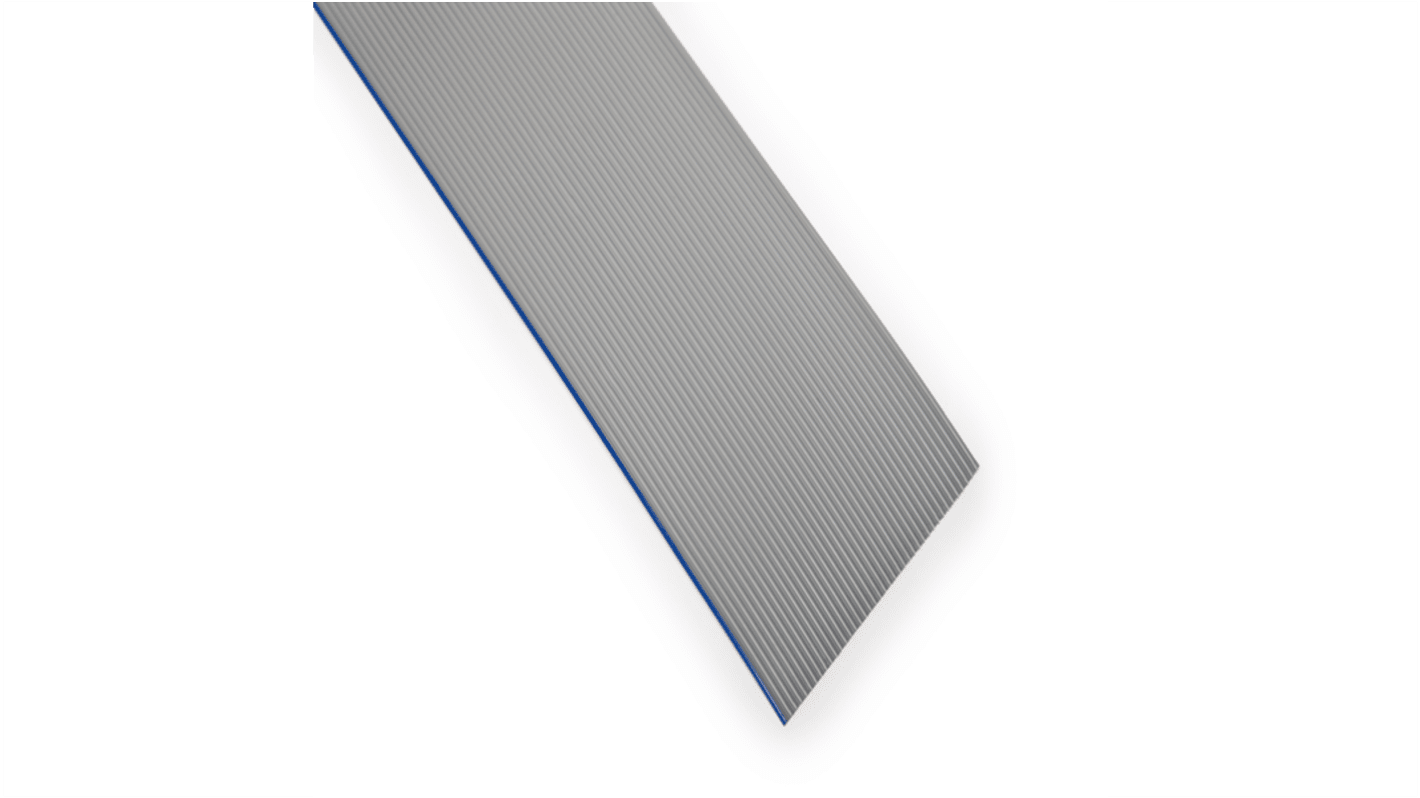

3M HF365 Series Round Conductor Flat Cable, Stranded, 1.27 mm Pitch, 8, 100 ft Length
- RS Stock No.:
- 624-401
- Mfr. Part No.:
- HF365/08SF
- Brand:
- 3M
Subtotal (1 pack of 10 units)*
£372.21
(exc. VAT)
£446.65
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 30 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £372.21 | £37.221 |
*price indicative
- RS Stock No.:
- 624-401
- Mfr. Part No.:
- HF365/08SF
- Brand:
- 3M
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Cable Type | Stranded | |
| Product Type | Round Conductor Flat Cable | |
| Pitch | 1.27mm | |
| Voltage | 300V | |
| Screened/Unscreened | Unscreened | |
| Number of Conductors | 8 | |
| American Wire Gauge | 28AWG | |
| Series | HF365 | |
| Jacket Material | Polyolefin | |
| Conductor Type | Round | |
| Cable Length | 100ft | |
| Standards/Approvals | IEC 61034-2-2005, NF X 70-100-2-2006, UL File No: E42769, UL Style No: 21682, IEC 61249-2-21 | |
| Jacket Colour | Dark Grey | |
| Maximum Operating Temperature | 105°C | |
| Minimum Operating Temperature | -40°C | |
| Fire Behaviour | Low Smoke Zero Halogen (LSZH), UL Flammability: Horizontal | |
| Conductor Material | Tin Plated Copper | |
| Core Strands | 7 | |
| Select all | ||
|---|---|---|
Brand 3M | ||
Cable Type Stranded | ||
Product Type Round Conductor Flat Cable | ||
Pitch 1.27mm | ||
Voltage 300V | ||
Screened/Unscreened Unscreened | ||
Number of Conductors 8 | ||
American Wire Gauge 28AWG | ||
Series HF365 | ||
Jacket Material Polyolefin | ||
Conductor Type Round | ||
Cable Length 100ft | ||
Standards/Approvals IEC 61034-2-2005, NF X 70-100-2-2006, UL File No: E42769, UL Style No: 21682, IEC 61249-2-21 | ||
Jacket Colour Dark Grey | ||
Maximum Operating Temperature 105°C | ||
Minimum Operating Temperature -40°C | ||
Fire Behaviour Low Smoke Zero Halogen (LSZH), UL Flammability: Horizontal | ||
Conductor Material Tin Plated Copper | ||
Core Strands 7 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- US
3M HF365 Series Round Conductor Flat Cable, 100ft Cable Length, 8 Conductors, Halogen-Free - HF365/08SF
This round conductor flat cable provides a Compact interconnect solution for multiway wiring in industrial and electronic assemblies. Engineered for continuous electrical distribution, it is suited to environments requiring a slender profile ribbon cable with multiple conductors and controlled fire behaviour.
Features & Benefits
• 28AWG stranded conductors deliver flexible routing and connection
• Eight conductors enable multiple signal or power lines in one cable
• Tin-plated copper cores reduce corrosion and improve solderability
• Polyolefin jacket offers abrasion resistance and chemical tolerance
• Low smoke zero halogen construction minimises toxic emissions
• 300V rating supports medium-voltage interconnect applications
• Eight conductors enable multiple signal or power lines in one cable
• Tin-plated copper cores reduce corrosion and improve solderability
• Polyolefin jacket offers abrasion resistance and chemical tolerance
• Low smoke zero halogen construction minimises toxic emissions
• 300V rating supports medium-voltage interconnect applications
**Applications**
• Suitable for internal wiring of control cabinets and automation panels
• Ideal for interconnection between PCB assemblies in equipment racks
• Used for harnessing multiple sensor and actuator lines in machinery
• Can be used for cable runs requiring low-smoke materials in confined spaces
• Ideal for interconnection between PCB assemblies in equipment racks
• Used for harnessing multiple sensor and actuator lines in machinery
• Can be used for cable runs requiring low-smoke materials in confined spaces
What conductor geometry is used and how does it affect bend performance?
The conductors are round and each core comprises seven strands, which improves flexibility compared with solid conductors and eases routing through tight bends.
What temperature range can it tolerate in operation?
It operates from -40°C up to 105°C, allowing use in cold-start conditions and elevated local temperatures near heat-generating components.
Is the cable screened for electromagnetic interference?
The construction is unscreened, so additional shielding should be applied externally where EMI suppression is required.
How long is the available reel and what pitch does the cable use?
The product is supplied as a 100 ft length and features a 1.27 mm conductor pitch suitable for standard connector mating.
