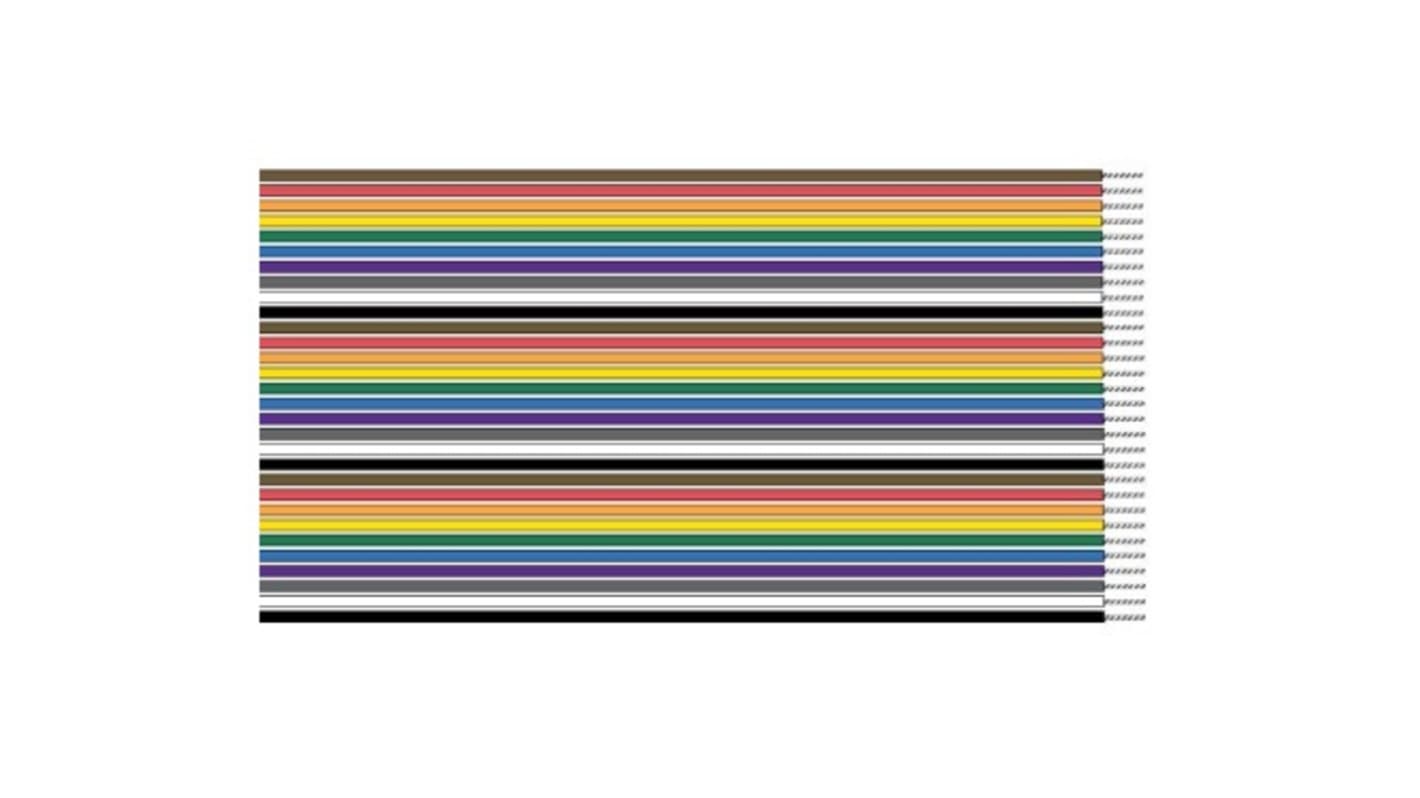

Alpha Wire 3550/14 Series Ribbon Cable, 14, 100 ft Length
- RS Stock No.:
- 291-352
- Mfr. Part No.:
- 3550/14 MC005
- Brand:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
£369.10
(exc. VAT)
£442.92
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 06 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £369.10 | £12.303 |
*price indicative
- RS Stock No.:
- 291-352
- Mfr. Part No.:
- 3550/14 MC005
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Product Type | Ribbon Cable | |
| Voltage | 600Vrms | |
| Number of Conductors | 14 | |
| American Wire Gauge | 26AWG | |
| Series | 3550/14 | |
| Jacket Material | Polyvinyl Chloride | |
| Cable Length | 100ft | |
| Standards/Approvals | MIL-DTL-16878/1 (Type B), EU Directive 2011/65/EU(RoHS2), California Proposition 65, REACH Regulation (EC 1907/2006), UL AWM/STYLE 2713 | |
| Minimum Operating Temperature | -55°C | |
| Conductor Material | Tetron Cotton | |
| Maximum Operating Temperature | 105°C | |
| Fire Behaviour | VW-1 | |
| Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Product Type Ribbon Cable | ||
Voltage 600Vrms | ||
Number of Conductors 14 | ||
American Wire Gauge 26AWG | ||
Series 3550/14 | ||
Jacket Material Polyvinyl Chloride | ||
Cable Length 100ft | ||
Standards/Approvals MIL-DTL-16878/1 (Type B), EU Directive 2011/65/EU(RoHS2), California Proposition 65, REACH Regulation (EC 1907/2006), UL AWM/STYLE 2713 | ||
Minimum Operating Temperature -55°C | ||
Conductor Material Tetron Cotton | ||
Maximum Operating Temperature 105°C | ||
Fire Behaviour VW-1 | ||
- COO (Country of Origin):
- US
Rupali
The Alpha Wire Ribbon Cable supports a bend radius of 10 times the cable diameter and a maximum pull tension of 31 lbs. Its electrical properties include a 600 VRMS voltage rating. This ribbon cable facilitate easier routing and termination, taking up less space than wire harness bundles. These cables are designed to safely carry more current than round harnesses of similar wire gauges and are easy to separate and route within circuit.
RoHS compliance
Suitable for military application as per MIL-DTL-16878/1
