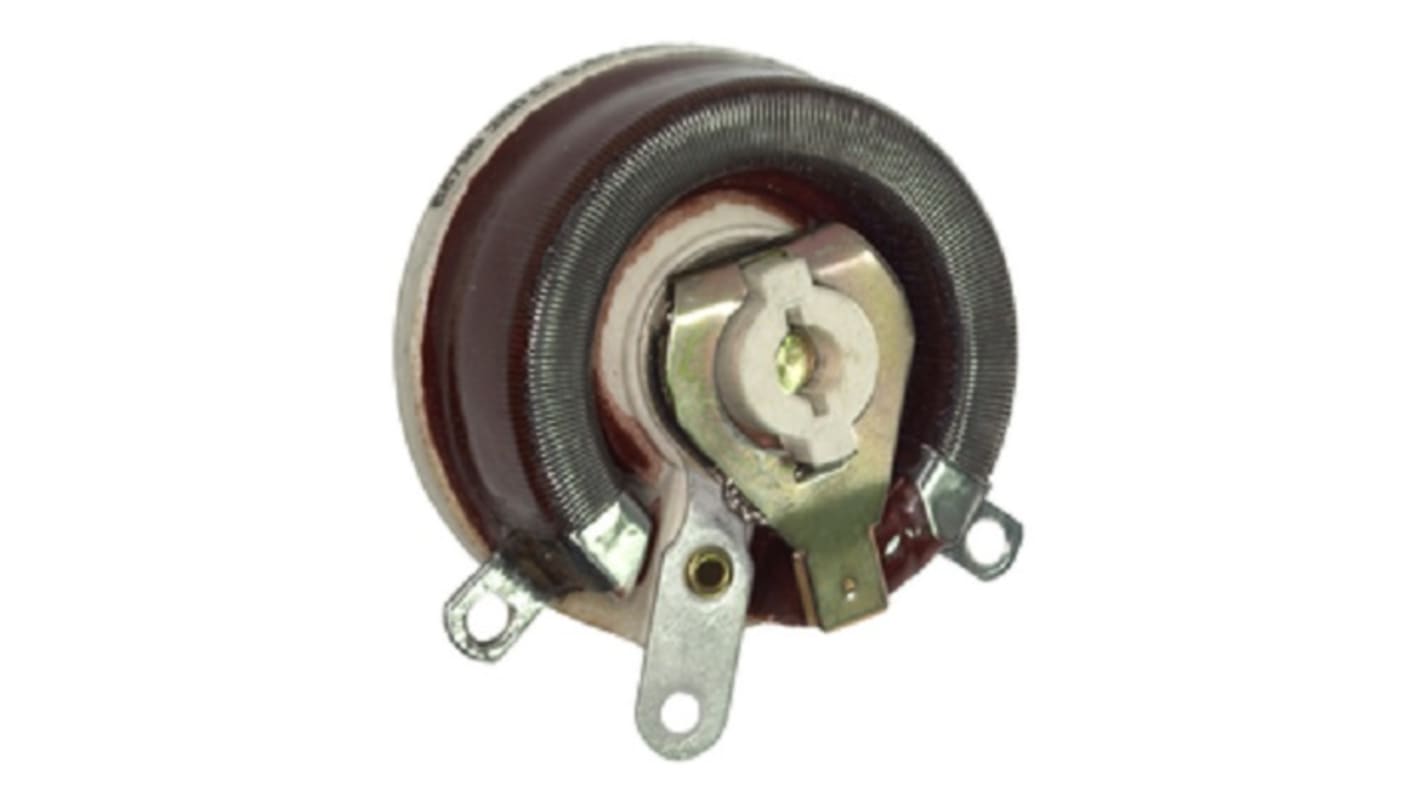

Ohmite 150W 2Ω Rheostat 8.65A, RLS2R0E
- RS Stock No.:
- 893-5207
- Mfr. Part No.:
- RLS2R0E
- Brand:
- Ohmite
Discontinued
- RS Stock No.:
- 893-5207
- Mfr. Part No.:
- RLS2R0E
- Brand:
- Ohmite
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ohmite | |
| Maximum Resistance | 2Ω | |
| Tolerance | ±10% | |
| Power Rating | 150W | |
| Number of Turns | 1 | |
| Mounting Type | Panel Mount | |
| Shaft Diameter | 6.35 mm | |
| Termination Style | Solder Lug | |
| Dimensions | 101.6 x 50.8mm | |
| Maximum Voltage Rating | 1200 Vrms | |
| Length | 50.8mm | |
| Current Rating | 8.65A | |
| Core Type | Open | |
| Actuator Type | Linear Shaft | |
| Shaft Length | 22.23mm | |
| Electrical Taper | Linear | |
| Select all | ||
|---|---|---|
Brand Ohmite | ||
Maximum Resistance 2Ω | ||
Tolerance ±10% | ||
Power Rating 150W | ||
Number of Turns 1 | ||
Mounting Type Panel Mount | ||
Shaft Diameter 6.35 mm | ||
Termination Style Solder Lug | ||
Dimensions 101.6 x 50.8mm | ||
Maximum Voltage Rating 1200 Vrms | ||
Length 50.8mm | ||
Current Rating 8.65A | ||
Core Type Open | ||
Actuator Type Linear Shaft | ||
Shaft Length 22.23mm | ||
Electrical Taper Linear | ||
- COO (Country of Origin):
- MX
RL Series 150W Wirewound Rheostats
From Ohmite, the RL series of rheostats has been designed and manufactured to retain high reliability and smooth operation over long periods of use. These rheostats are constructed from a ceramic body with high grade resistance alloy winding and a vitreous enamel coating (or silicone ceramic coating depending on model). RL rheostats have a metal spring contact arm, metal graphite composition and feature solder coated terminals.
Product Applications:
Suitable applications include motor speed controls, equipment requiring variable resistance settings and dimmer switches.
