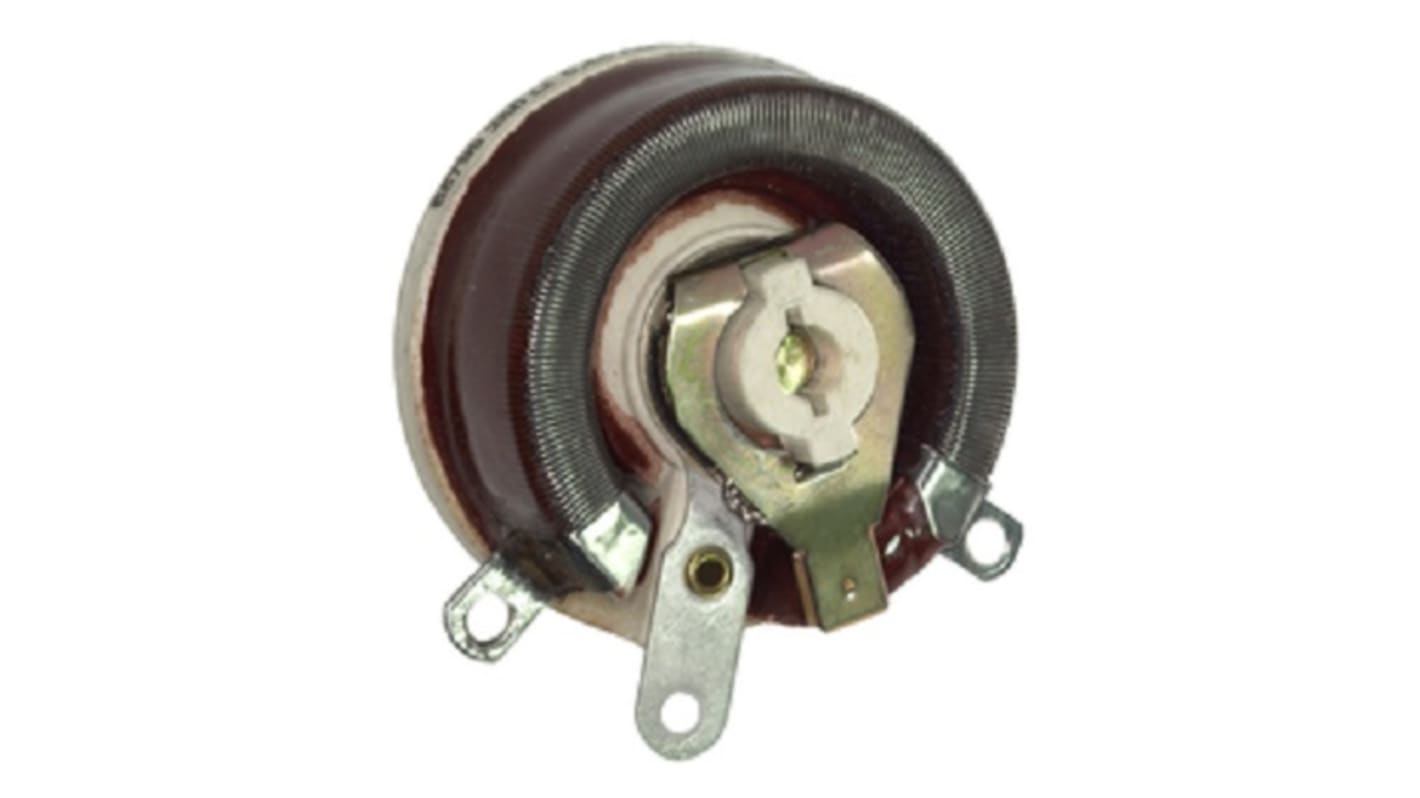

Ohmite 300W 5Ω Rheostat 7.75A, RNS5R0E
- RS Stock No.:
- 893-3472
- Mfr. Part No.:
- RNS5R0E
- Brand:
- Ohmite
Discontinued
- RS Stock No.:
- 893-3472
- Mfr. Part No.:
- RNS5R0E
- Brand:
- Ohmite
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ohmite | |
| Maximum Resistance | 5Ω | |
| Tolerance | ±10% | |
| Power Rating | 300W | |
| Number of Turns | 1 | |
| Mounting Type | Panel Mount | |
| Shaft Diameter | 9.53 mm | |
| Termination Style | Solder Lug | |
| Dimensions | 152.4 x 60.33mm | |
| Maximum Voltage Rating | 1225 Vrms | |
| Length | 60.33mm | |
| Current Rating | 7.75A | |
| Core Type | Open | |
| Shaft Length | 51mm | |
| Electrical Taper | Linear | |
| Actuator Type | Linear Shaft | |
| Select all | ||
|---|---|---|
Brand Ohmite | ||
Maximum Resistance 5Ω | ||
Tolerance ±10% | ||
Power Rating 300W | ||
Number of Turns 1 | ||
Mounting Type Panel Mount | ||
Shaft Diameter 9.53 mm | ||
Termination Style Solder Lug | ||
Dimensions 152.4 x 60.33mm | ||
Maximum Voltage Rating 1225 Vrms | ||
Length 60.33mm | ||
Current Rating 7.75A | ||
Core Type Open | ||
Shaft Length 51mm | ||
Electrical Taper Linear | ||
Actuator Type Linear Shaft | ||
- COO (Country of Origin):
- MX
RN Series 300W Wirewound Potentiometers
Ohmite RN Series wirewound potentiometers are designed and manufactured to operate smoothly and reliably over long periods of use. The RN Series has a ceramic body, high-grade resistance alloy linear taper windings, vitreous enamel coating, metal spring contact arm, metal graphite composition and solder coated terminals. Typical applications for the RN series are motor speed controls, light dimmers and for equipment requiring convenient variable resistance settings.
Tolerance ±10%
300 Watts
300 Watts
Ohmite Potentiometers
