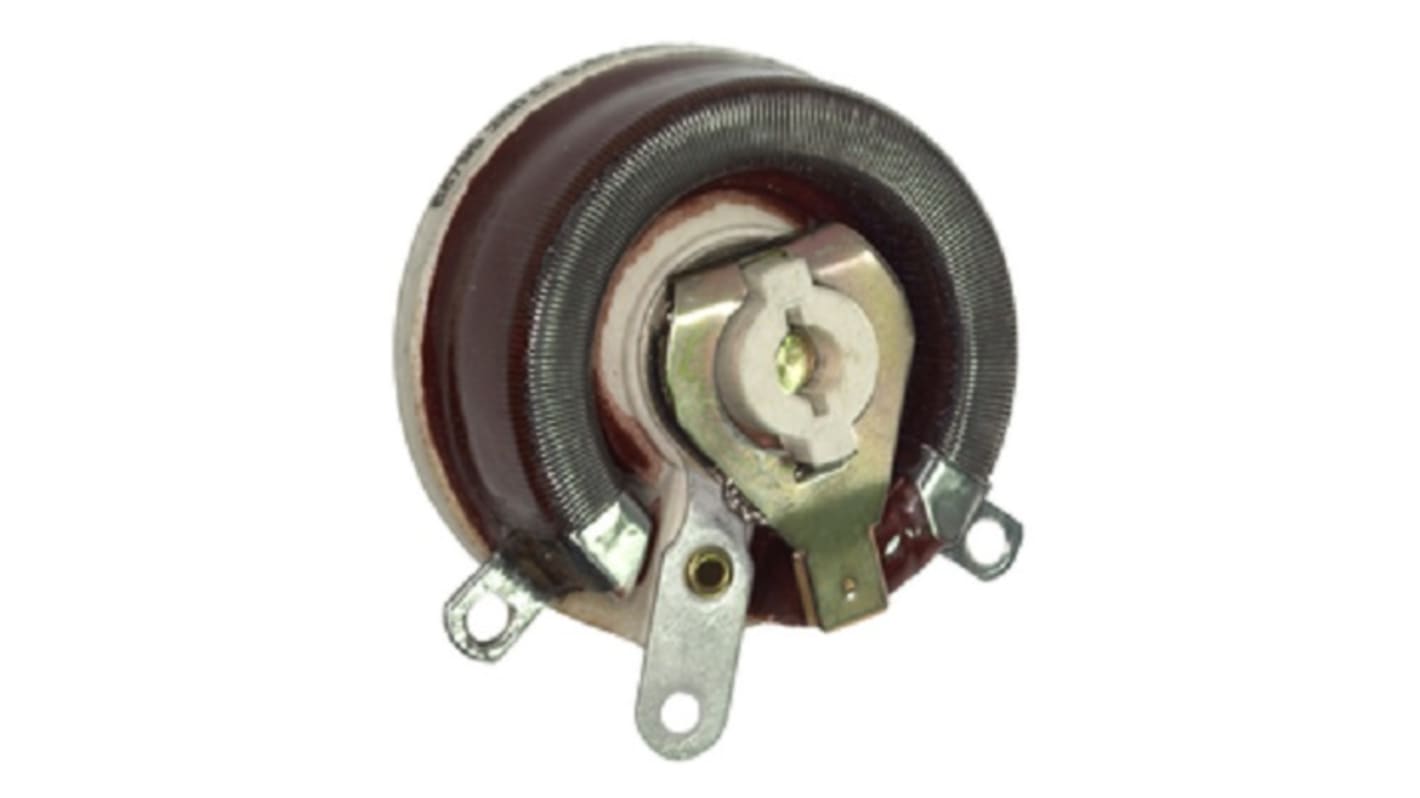

Ohmite 225W 50Ω Rheostat 2.12A, RPS50RE
- RS Stock No.:
- 892-5792
- Mfr. Part No.:
- RPS50RE
- Brand:
- Ohmite
Discontinued
- RS Stock No.:
- 892-5792
- Mfr. Part No.:
- RPS50RE
- Brand:
- Ohmite
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ohmite | |
| Maximum Resistance | 50Ω | |
| Tolerance | ±10% | |
| Power Rating | 225W | |
| Number of Turns | 1 | |
| Mounting Type | Panel Mount | |
| Shaft Diameter | 9.53 mm | |
| Termination Style | Solder Lug | |
| Dimensions | 127 x 53.98mm | |
| Maximum Voltage Rating | 1300 Vrms | |
| Length | 53.98mm | |
| Current Rating | 2.12A | |
| Actuator Type | Linear Shaft | |
| Shaft Length | 51mm | |
| Electrical Taper | Linear | |
| Core Type | Open | |
| Select all | ||
|---|---|---|
Brand Ohmite | ||
Maximum Resistance 50Ω | ||
Tolerance ±10% | ||
Power Rating 225W | ||
Number of Turns 1 | ||
Mounting Type Panel Mount | ||
Shaft Diameter 9.53 mm | ||
Termination Style Solder Lug | ||
Dimensions 127 x 53.98mm | ||
Maximum Voltage Rating 1300 Vrms | ||
Length 53.98mm | ||
Current Rating 2.12A | ||
Actuator Type Linear Shaft | ||
Shaft Length 51mm | ||
Electrical Taper Linear | ||
Core Type Open | ||
- COO (Country of Origin):
- MX
RP Series 225W Wirewound Potentiometers
Ohmite RP Series wirewound potentiometers are designed and manufactured to operate smoothly and reliably over long periods of use. The RP Series has a ceramic body, high-grade resistance alloy linear taper windings, vitreous enamel coating, metal spring contact arm, metal graphite composition and solder coated terminals. Typical applications for the RP series are motor speed controls, light dimmers and for equipment requiring convenient variable resistance settings.
Tolerance ±10%
225 Watts
225 Watts
Ohmite Potentiometers
