Adeunis RF ARF7923AA RF Repeater RF Repeater
- RS Stock No.:
- 914-4910
- Mfr. Part No.:
- ARF7923AA
- Brand:
- Adeunis RF
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 914-4910
- Mfr. Part No.:
- ARF7923AA
- Brand:
- Adeunis RF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Adeunis RF | |
| Module Type | Repeater | |
| Maximum Output Power | +14dBm | |
| Receiver Sensitivity | -117dBm | |
| Dimensions | 145 x 100 x 40mm | |
| Height | 40mm | |
| Length | 100mm | |
| Maximum Operating Temperature | +70 °C | |
| Minimum Operating Temperature | -40 °C | |
| Width | 140mm | |
Select all | ||
|---|---|---|
Brand Adeunis RF | ||
Module Type Repeater | ||
Maximum Output Power +14dBm | ||
Receiver Sensitivity -117dBm | ||
Dimensions 145 x 100 x 40mm | ||
Height 40mm | ||
Length 100mm | ||
Maximum Operating Temperature +70 °C | ||
Minimum Operating Temperature -40 °C | ||
Width 140mm | ||
- COO (Country of Origin):
- FR

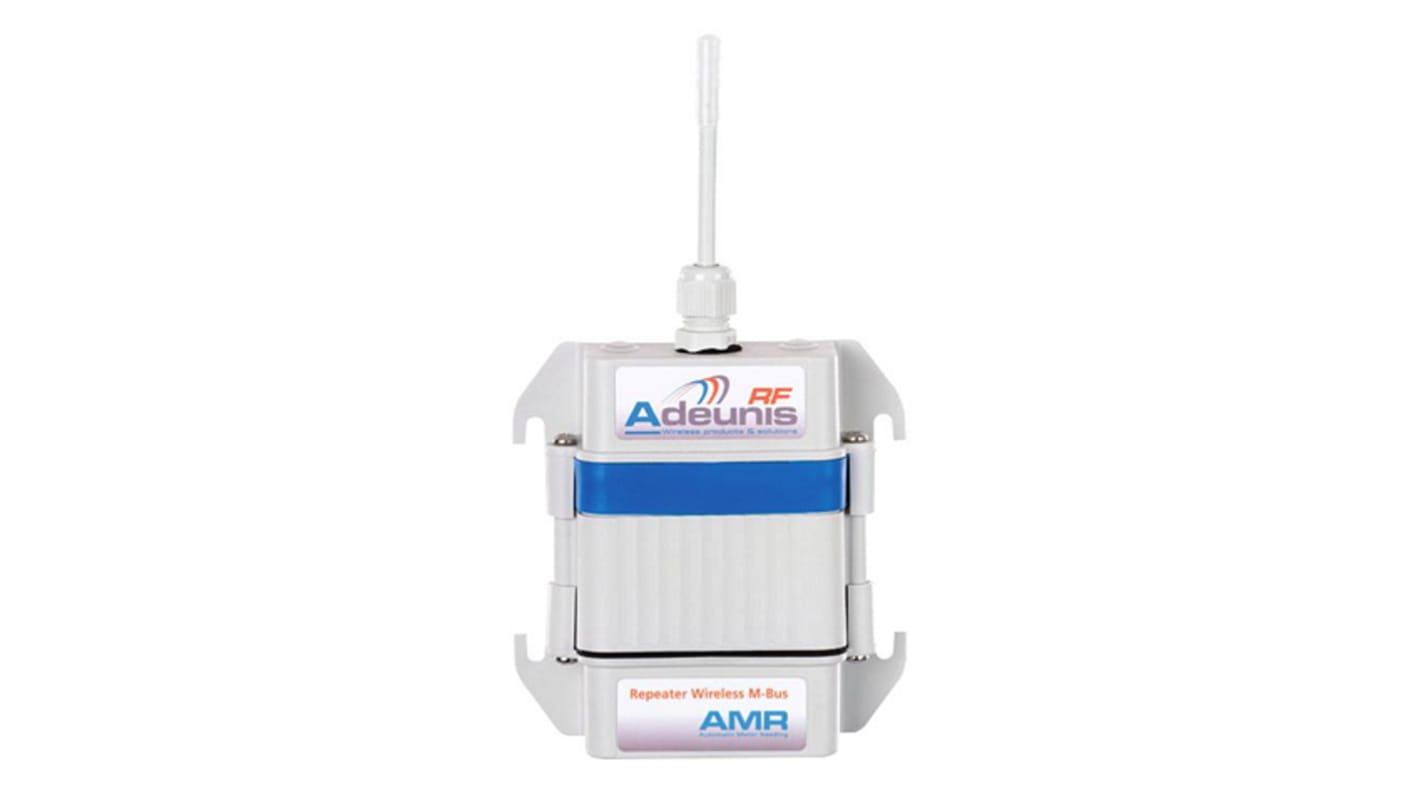

ARF7923/24AA Wireless M-Bus AMR Repeaters
The AMR range of plug and play Wireless M-Bus Repeaters from Adeunis RF is available as either a mains powered version (9144910) or a battery powered version (9144929). With each repeater, you can repeat radio frames from Wireless M-Bus transmitters and double transmitter range — great for rugged conditions.
M-Bus
The M-Bus wireless standard is ideal for short-range, remote meter reading applications.
Features & Benefits of the AMR Wireless M-Bus Repeaters
•14 dBm RF power
•-117 dBm RF sensitivity
•600 m range (line of sight)
•3.6 V nominal supply voltage
•8 year lifespan with a cycle of one wake-up (four minutes) per day
•-30° C to +70° C operating temperature
•IP65 case
•EN 300-220, EN 301-489, EN 60950, EN 13757-4:2005 standards
M-Bus
The M-Bus wireless standard is ideal for short-range, remote meter reading applications.
Features & Benefits of the AMR Wireless M-Bus Repeaters
•14 dBm RF power
•-117 dBm RF sensitivity
•600 m range (line of sight)
•3.6 V nominal supply voltage
•8 year lifespan with a cycle of one wake-up (four minutes) per day
•-30° C to +70° C operating temperature
•IP65 case
•EN 300-220, EN 301-489, EN 60950, EN 13757-4:2005 standards
