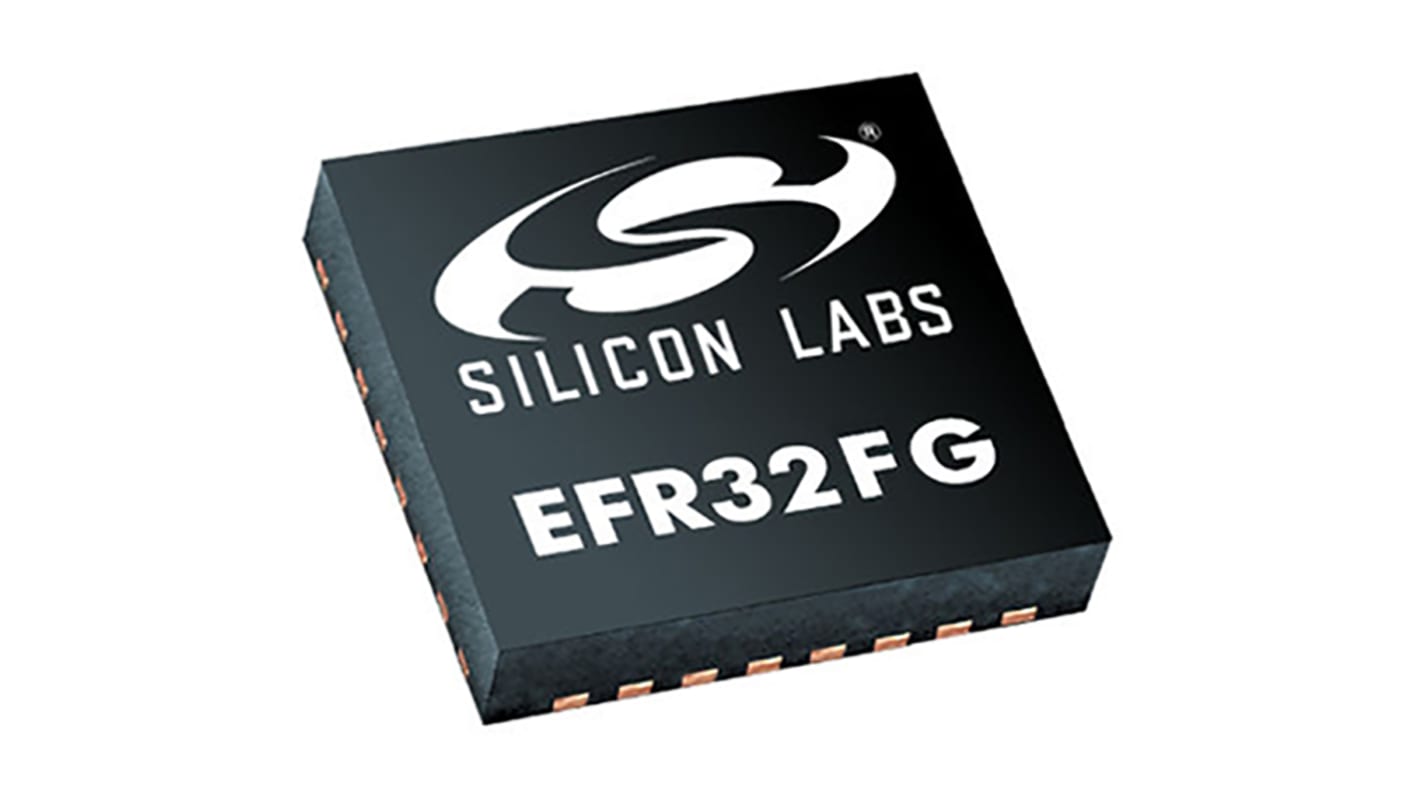

Silicon Labs EFR32FG1P133F256GM48-C0, RF Transceiver 2.4GHz Dual Band 48-Pin QFN
- RS Stock No.:
- 122-8500
- Mfr. Part No.:
- EFR32FG1P133F256GM48-C0
- Brand:
- Silicon Labs
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 122-8500
- Mfr. Part No.:
- EFR32FG1P133F256GM48-C0
- Brand:
- Silicon Labs
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Silicon Labs | |
| Technology | Low IF/ISM Transceiver | |
| Package Type | QFN | |
| Pin Count | 48 | |
| Mounting Type | Surface Mount | |
| Dimensions | 7.1 x 7.1 x 0.85mm | |
| Length | 7.1mm | |
| Width | 7.1mm | |
| Height | 0.85mm | |
| Maximum Operating Band 1 Frequency | 2.4GHz | |
| Maximum Operating Band 2 Frequency | 868MHz | |
| Maximum Operating Supply Voltage | 3.8 V | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Supply Voltage | 1.85 V | |
| Number of Operating Bands | 2 | |
| Minimum Operating Temperature | -40 °C | |
Select all | ||
|---|---|---|
Brand Silicon Labs | ||
Technology Low IF/ISM Transceiver | ||
Package Type QFN | ||
Pin Count 48 | ||
Mounting Type Surface Mount | ||
Dimensions 7.1 x 7.1 x 0.85mm | ||
Length 7.1mm | ||
Width 7.1mm | ||
Height 0.85mm | ||
Maximum Operating Band 1 Frequency 2.4GHz | ||
Maximum Operating Band 2 Frequency 868MHz | ||
Maximum Operating Supply Voltage 3.8 V | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Supply Voltage 1.85 V | ||
Number of Operating Bands 2 | ||
Minimum Operating Temperature -40 °C | ||
EFR32FG Flex Gecko 2.4GHz/Sub-GHz Dual-Band Wireless SoC
The Silicon Labs Flex Gecko EFR32FGxxx33Fx SoCs feature a 32-bit ARM Cortex-M4 processor core with highly integrated radio transceivers supporting both proprietary 2.4GHz and Sub-GHz wireless protocols. Typical applications involve home and building automation and security, metering, electronic shelf labels, industrial automation, commercial and retail lighting and sensing. The devices are ideal for any battery operated application and other systems requiring high performance and low energy consumption.
• 40MHz 32-bit ARM Cortex-M4F core MCU with up to 1MB Flash memory, up to 256KB RAM
• RF Frequency Range: 2.4GHz ISM band and Sub-1GHz bands
• RF Output Power: up to +19dBm (2.4GHz), up to +20dBm (Sub-1GHz)
• Low-Energy Sensor Interface
• Multi-channel Capacitive Sense Interface
• 12-channel Peripheral Reflex System enabling autonomous interaction of MCU peripherals
• Hardware Crypto Accelerator and True Random Number Generator
• Protocol stack: Proprietary
