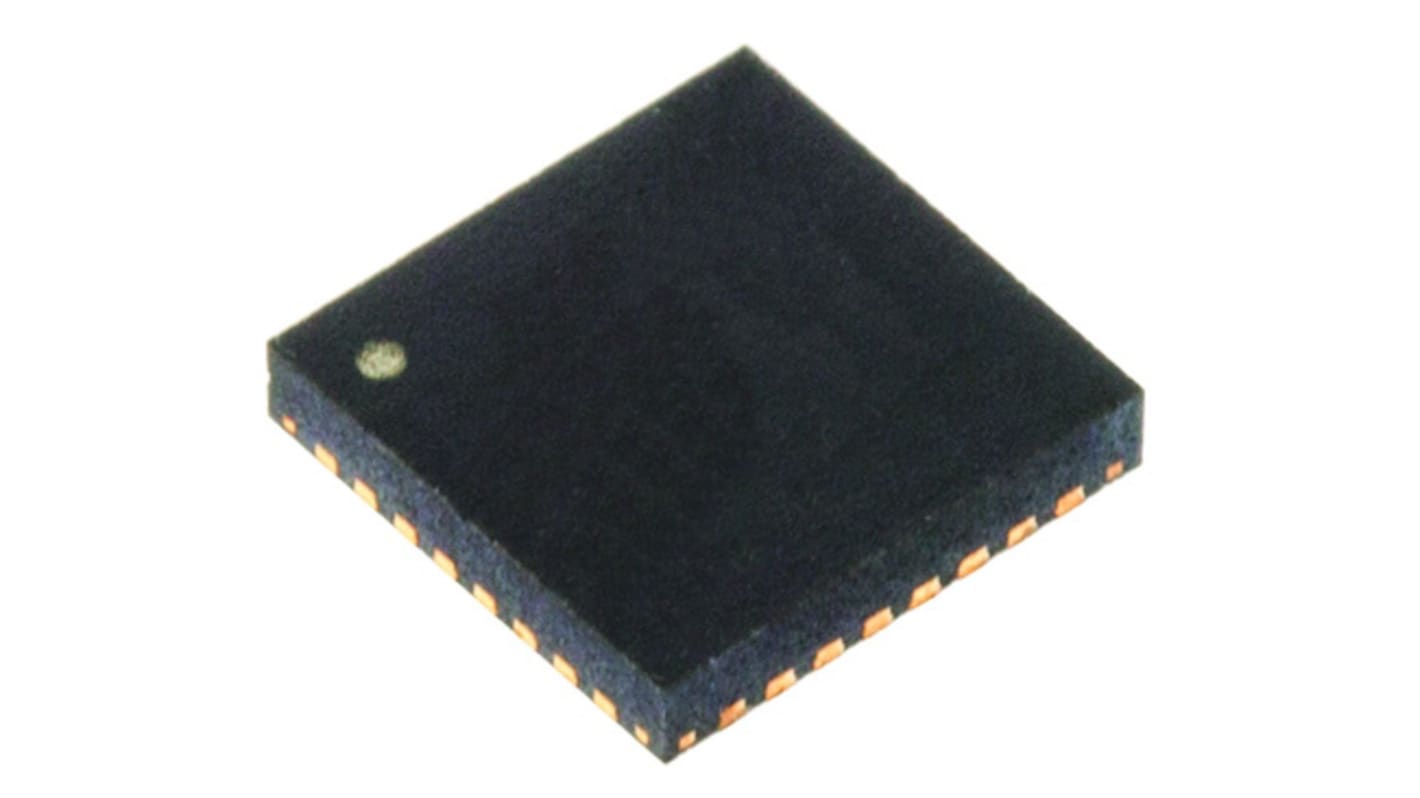

HMC659LC5 Analog Devices, RF Amplifier Power, 19 dB 15 GHz, 32-Pin QFN
- RS Stock No.:
- 909-3464
- Mfr. Part No.:
- HMC659LC5
- Brand:
- Analog Devices
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 909-3464
- Mfr. Part No.:
- HMC659LC5
- Brand:
- Analog Devices
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Analog Devices | |
| Amplifier Type | Power | |
| Typical Power Gain | 19 dB | |
| Typical Output Power | 27.5dBm | |
| Typical Noise Figure | 3.5dB | |
| Number of Channels per Chip | 1 | |
| Maximum Operating Frequency | 15 GHz | |
| Mounting Type | Surface Mount | |
| Package Type | QFN | |
| Pin Count | 32 | |
| Dimensions | 5 x 5 x 1.12mm | |
| Height | 1.12mm | |
| Length | 5mm | |
| Width | 5mm | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +85 °C | |
| Maximum Operating Supply Voltage | 8 V | |
Select all | ||
|---|---|---|
Brand Analog Devices | ||
Amplifier Type Power | ||
Typical Power Gain 19 dB | ||
Typical Output Power 27.5dBm | ||
Typical Noise Figure 3.5dB | ||
Number of Channels per Chip 1 | ||
Maximum Operating Frequency 15 GHz | ||
Mounting Type Surface Mount | ||
Package Type QFN | ||
Pin Count 32 | ||
Dimensions 5 x 5 x 1.12mm | ||
Height 1.12mm | ||
Length 5mm | ||
Width 5mm | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +85 °C | ||
Maximum Operating Supply Voltage 8 V | ||
RF Amplifiers, Analog Devices Hittite
Analog Devices Hittite have a series of RF amplifiers that have a range of functions. Some feature low Noise amplifiers, some RF Amplifiers are integrated with resonators, negative resistance devices, varactor diodes, and buffer amplifiers and other offer high efficiency GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC driver amplifiers.
