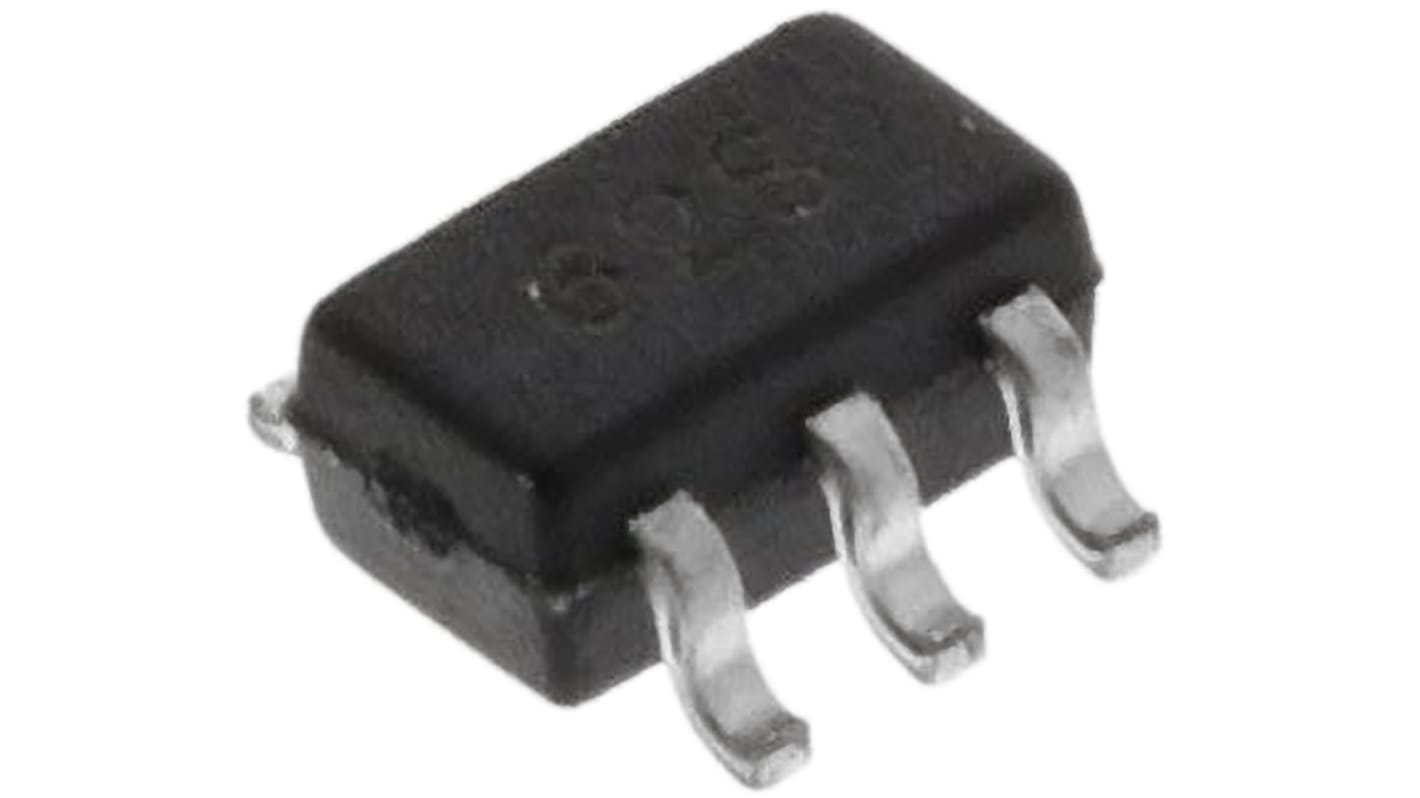

MGA-62563-BLKG Broadcom, RF Amplifier, 22 dB 3 GHz, 6-Pin SOT-363
- RS Stock No.:
- 450-799
- Mfr. Part No.:
- MGA-62563-BLKG
- Brand:
- Broadcom
Discontinued
- RS Stock No.:
- 450-799
- Mfr. Part No.:
- MGA-62563-BLKG
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Amplifier Type | General Purpose | |
| Typical Power Gain | 22 dB | |
| Typical Output Power | 17.7dBm | |
| Typical Noise Figure | 1.5dB | |
| Number of Channels per Chip | 1 | |
| Maximum Operating Frequency | 3 GHz | |
| Mounting Type | Surface Mount | |
| Package Type | SOT-363 | |
| Pin Count | 6 | |
| Dimensions | 2.25 x 1.35 x 1mm | |
| Height | 1mm | |
| Length | 2.25mm | |
| Width | 1.35mm | |
| Select all | ||
|---|---|---|
Brand Broadcom | ||
Amplifier Type General Purpose | ||
Typical Power Gain 22 dB | ||
Typical Output Power 17.7dBm | ||
Typical Noise Figure 1.5dB | ||
Number of Channels per Chip 1 | ||
Maximum Operating Frequency 3 GHz | ||
Mounting Type Surface Mount | ||
Package Type SOT-363 | ||
Pin Count 6 | ||
Dimensions 2.25 x 1.35 x 1mm | ||
Height 1mm | ||
Length 2.25mm | ||
Width 1.35mm | ||
- COO (Country of Origin):
- MY
Low Noise Amplifiers (LNA), Avago Technologies
Low-Noise Amplifiers (LNA) have the best low noise figure combined with excellent gain and linearity.
Radio Frequency (RF) Amplifiers, Avago Technologies
Avago Technologies provide a wide range of RF amplifiers including Power Amplifier (PA), Gain Block/Driver, and Low Noise Amplifier (LNA), designed for mobile/fixed wireless applications and low power cellular base stations.
