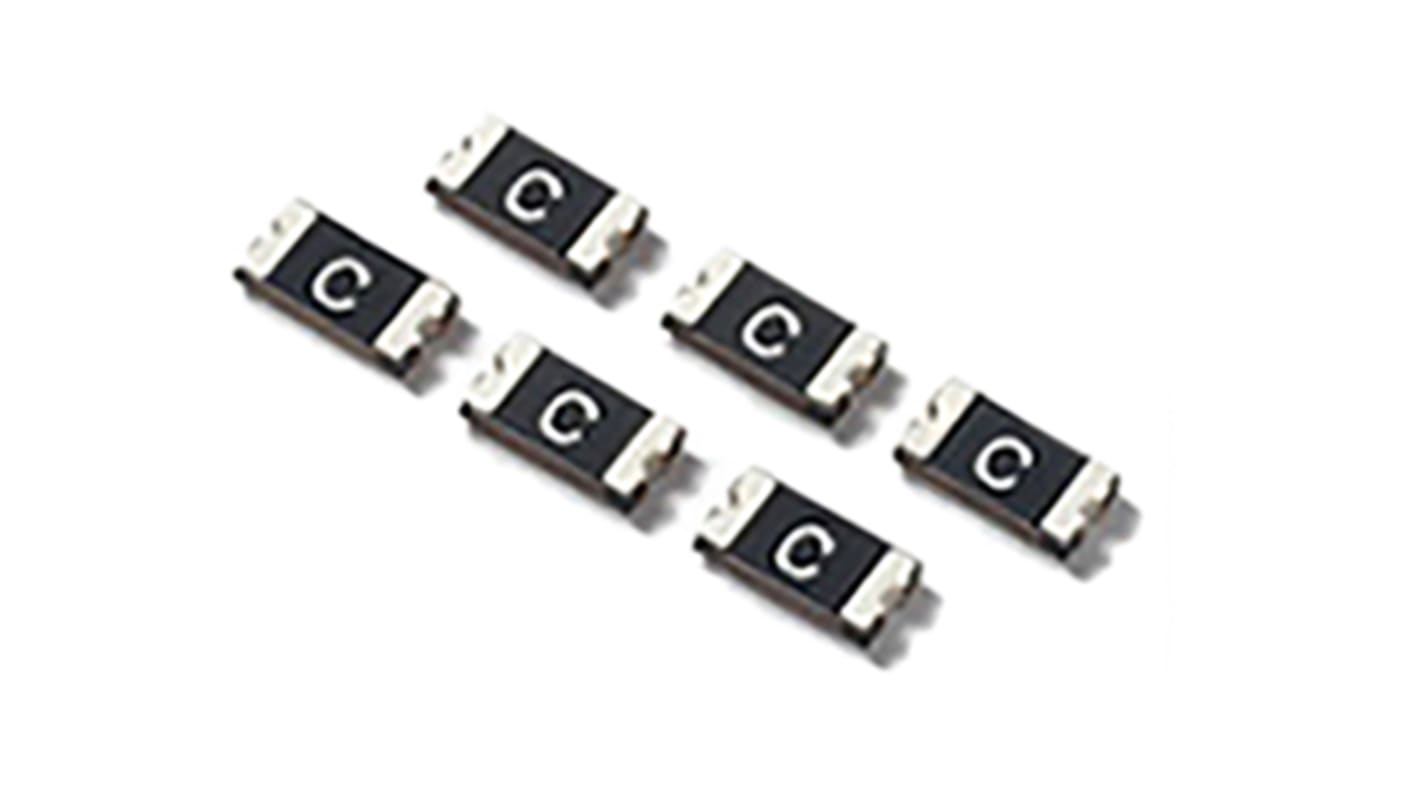

Littelfuse 0.2A Resettable Fuse, 24V dc
- RS Stock No.:
- 878-4018
- Mfr. Part No.:
- 1206L020YR
- Brand:
- Littelfuse
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 878-4018
- Mfr. Part No.:
- 1206L020YR
- Brand:
- Littelfuse
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Littelfuse | |
| Voltage Rating | 24V dc | |
| Time to Trip | 0.1s | |
| Hold Current | 0.2A | |
| Maximum Current | 100 A | |
| Length | 3.4mm | |
| Height | 0.75mm | |
| Width | 1.8mm | |
| Terminal Material | Solder Plated Copper | |
| Minimum Resistance | 0.65Ω | |
| Maximum Resistance | 2.6Ω | |
| Power Dissipation | 0.6W | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
| Package Size | 1206 | |
| Dimensions | 3.4 x 1.8 x 0.75mm | |
| Series | 1206L | |
| Operating Temperature Range | -40 → +85 °C | |
| Select all | ||
|---|---|---|
Brand Littelfuse | ||
Voltage Rating 24V dc | ||
Time to Trip 0.1s | ||
Hold Current 0.2A | ||
Maximum Current 100 A | ||
Length 3.4mm | ||
Height 0.75mm | ||
Width 1.8mm | ||
Terminal Material Solder Plated Copper | ||
Minimum Resistance 0.65Ω | ||
Maximum Resistance 2.6Ω | ||
Power Dissipation 0.6W | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Package Size 1206 | ||
Dimensions 3.4 x 1.8 x 0.75mm | ||
Series 1206L | ||
Operating Temperature Range -40 → +85 °C | ||
Littelfuse 1206L Series
Littelfuse 1206L series provide surface mount resettable over current protection in a small footprint which is ideal for applications where space it limited. 1206L's offer a fast response to fault currents along with low resistance and a low profile.
Applications:
USB peripherals.
Mobile phones.
PDA's.
Game Console port protection.
Surface Mount Technology
Surface mount fuses offer considerable space (and time) saving features for low voltage applications. The FF types are ideal for protection of high value silicon IC's e.g. alarm systems, audio/visual equipment, computer boards, portable telephones, power supplies, medical apparatus etc.
