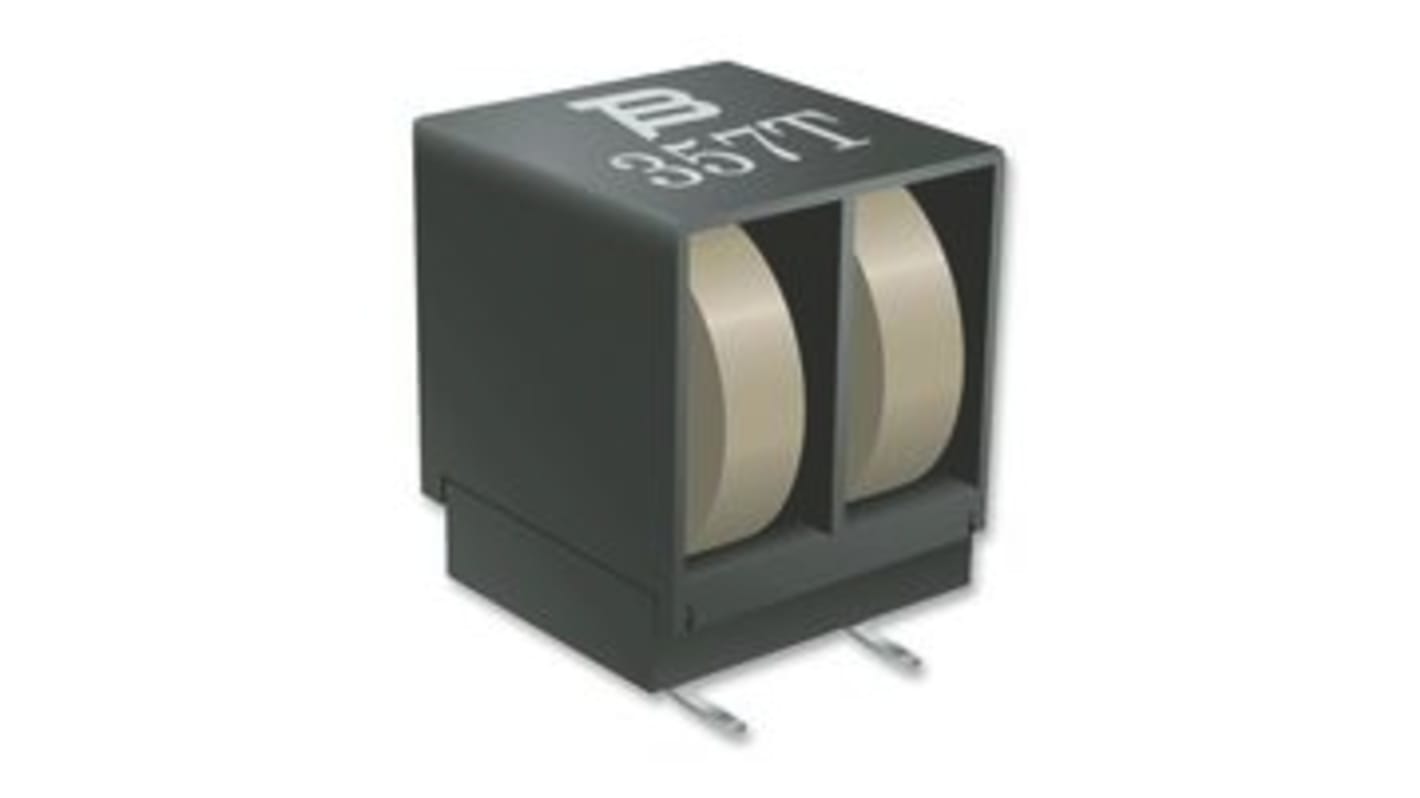

Bourns 0.09A Resettable Fuse, 230V

View all Resettable Fuses
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Packaging Options:
RS Stock No.:
817-1624
Mfr. Part No.:
CMF-SDP50-2
Brand:
Bourns
Find similar products by selecting one or more attributes.
Select all

Brand

Bourns

Trip Current

190mA

Voltage Rating

230V

Time to Trip

0.13s

Hold Current

0.09A

Maximum Current

2.5 A

Length

11mm

Height

11.5mm

Width

9mm

Maximum Resistance

50Ω

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+125°C

Operating Temperature Range

-40 → +125 °C

Dimensions

11 x 9 x 11.5mm

COO (Country of Origin):
CN

CMF-SDP Series


Two resistance-matched PTCs in a plastic housing
Narrow resistance tolerance
RoHS compliant


Surface Mount Technology


Resettable fuses are designed for the protection of electrical and electronic circuits against excessive currents. They switch rapidly from a low resistance to very high resistance state under electrical overload or short circuit conditions, and feature automatic reset and return to low resistance state when fault condition ceases and power is removed.


Maintenance free automatic reset for thousands of cycles
Small size and no fuseholder required


Main applications


Security systems
Power supplies and transformers
Power switching devices
Automotive and medical equipment
Instrumentation and control
Computers and peripherals
Audio visual and telecommunications
