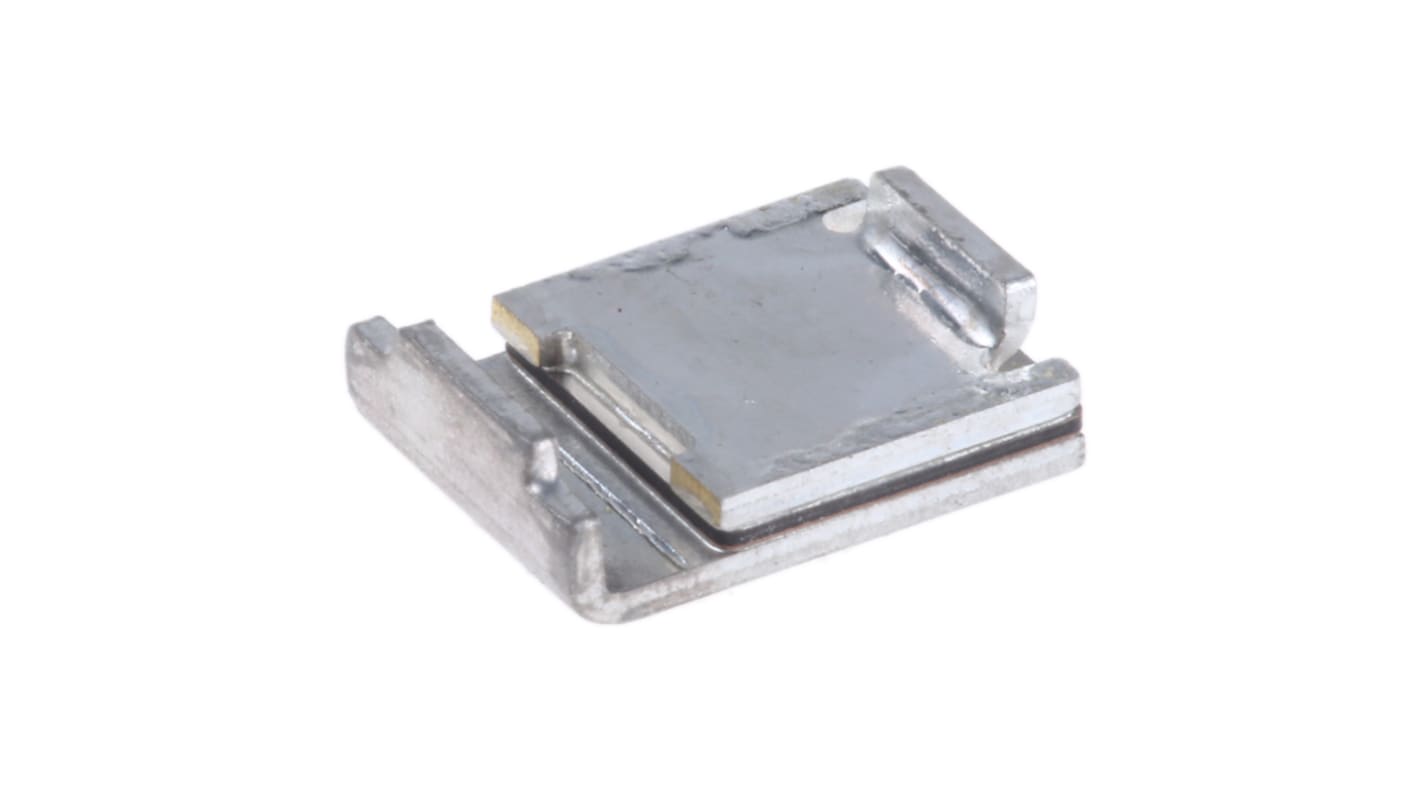

Littelfuse 2A Resettable Fuse, 15V dc
- RS Stock No.:
- 517-7082
- Mfr. Part No.:
- SMD200F-2
- Brand:
- Littelfuse
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 517-7082
- Mfr. Part No.:
- SMD200F-2
- Brand:
- Littelfuse
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Littelfuse | |
| Trip Current | 4A | |
| Voltage Rating | 15V dc | |
| Time to Trip | 12s | |
| Hold Current | 2A | |
| Maximum Current | 40 A | |
| Length | 9.4mm | |
| Height | 3mm | |
| Width | 6.71mm | |
| Minimum Resistance | 0.05Ω | |
| Maximum Resistance | 125mΩ | |
| Power Dissipation | 1.9W | |
| Maximum Operating Temperature | +85°C | |
| Operating Temperature Range | Maximum of +85 °C | |
| Dimensions | 9.4 x 6.71 x 3mm | |
| Select all | ||
|---|---|---|
Brand Littelfuse | ||
Trip Current 4A | ||
Voltage Rating 15V dc | ||
Time to Trip 12s | ||
Hold Current 2A | ||
Maximum Current 40 A | ||
Length 9.4mm | ||
Height 3mm | ||
Width 6.71mm | ||
Minimum Resistance 0.05Ω | ||
Maximum Resistance 125mΩ | ||
Power Dissipation 1.9W | ||
Maximum Operating Temperature +85°C | ||
Operating Temperature Range Maximum of +85 °C | ||
Dimensions 9.4 x 6.71 x 3mm | ||
